TE Connectivity AMP Connectors 63648-2 Equivalent & Substitute Parts

Part Overview

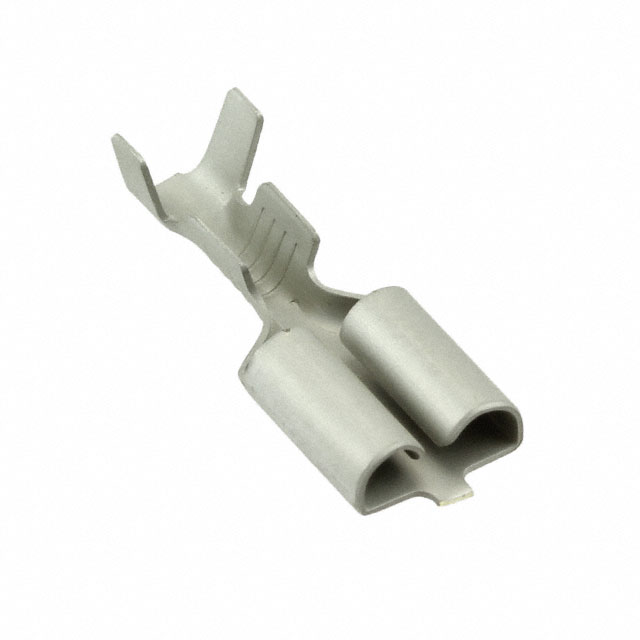

The TE Connectivity AMP Connectors 63648-2 is a 0.250" (6.35mm) Quick Connect Female crimp connector designed for 14-20 AWG wire gauges. This non-insulated Faston series terminal operates as a free-hanging in-line connector with brass contact material and tin finish. The part is classified as obsolete, necessitating identification of active equivalent alternatives to maintain supply chain continuity and ensure component availability for new designs and repairs.

Key Parameters

Parameter	Value
Manufacturer	TE Connectivity AMP Connectors
Series	Faston
Terminal Type	Standard
Gender	Female
Tab Width	0.250" (6.35mm)
Tab Thickness	0.032" (0.81mm)
Tab Length	0.305" (7.75mm)
Wire Gauge	14-20 AWG
Termination Method	Crimp
Insulation	Non-Insulated
Mounting Type	Free Hanging (In-Line)
Contact Material	Brass
Insulation Diameter	0.085" ~ 0.135" (2.16mm ~ 3.43mm)
RoHS Status	ROHS3 Compliant
MSL Rating	1 (Unlimited)

Substitute Part Grouping Explanation

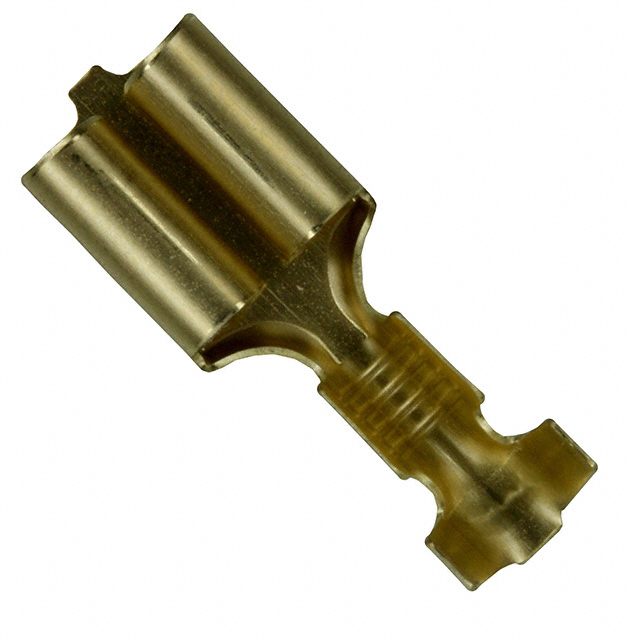

Substitution of the obsolete 63648-2 is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part 63648-1 maintains identical specifications for tab width (0.250"), tab thickness (0.032"), tab length (0.305"), wire gauge range (14-20 AWG), termination method (crimp), insulation type (non-insulated), mounting configuration (free hanging in-line), contact material (brass), and insulation diameter range (0.085" ~ 0.135"). Both parts share the same base product number (63648) and series designation (Faston), confirming functional equivalence. The primary distinction is product status: 63648-2 is obsolete while 63648-1 is active, and packaging differs (63648-1 is supplied in cut tape format). Compliance certifications including ROHS3 and MSL rating remain consistent across both parts.

Parameter Comparison

Parameter	63648-2 (Main Part)	63648-1 (Substitute)	Match Status
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	Identical
Series	Faston	Faston	Identical
Terminal Type	Standard	Standard	Identical
Gender	Female	Female	Identical
Tab Width	0.250" (6.35mm)	0.250" (6.35mm)	Identical
Tab Thickness	0.032" (0.81mm)	0.032" (0.81mm)	Identical
Tab Length	0.305" (7.75mm)	0.305" (7.75mm)	Identical
Wire Gauge	14-20 AWG	14-20 AWG	Identical
Termination	Crimp	Crimp	Identical
Insulation	Non-Insulated	Non-Insulated	Identical
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Identical
Contact Material	Brass	Brass	Identical
Insulation Diameter	0.085" ~ 0.135" (2.16mm ~ 3.43mm)	0.085" ~ 0.135" (2.16mm ~ 3.43mm)	Identical
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	Identical
MSL Rating	1 (Unlimited)	1 (Unlimited)	Identical
Product Status	Obsolete	Active	Different
Packaging	Not specified	Cut Tape (CT)	Different

Engineering Selection Recommendations

The 63648-1 serves as the direct functional equivalent to the obsolete 63648-2. Selection of 63648-1 is supported by active product status, ensuring long-term availability and supply chain reliability. Both parts maintain ROHS3 compliance and identical MSL rating of 1 (unlimited moisture sensitivity), confirming suitability for equivalent environmental and storage conditions. The 63648-1 is supplied in cut tape packaging, which is standard for high-volume production environments and component handling systems. All electrical and mechanical parameters remain constant between the two parts, confirming direct interchangeability in circuit applications. The transition from 63648-2 to 63648-1 presents no technical barriers to implementation.

Frequently Asked Questions (FAQ)

Q: Can 63648-1 be used as a direct replacement for 63648-2 in existing designs?

A: Yes. The 63648-1 maintains identical electrical and mechanical specifications across all critical parameters including tab dimensions, wire gauge range, termination method, contact material, and insulation characteristics. Direct substitution is supported without design modification.

Q: What is the primary reason for substituting 63648-2?

A: The 63648-2 is classified as obsolete. The 63648-1 is an active product with equivalent specifications, ensuring continued component availability and supply chain continuity.

Q: Are there compliance differences between 63648-2 and 63648-1?

A: No. Both parts maintain identical ROHS3 compliance status and MSL rating of 1 (unlimited). Regulatory and environmental certifications are equivalent.

Q: How does packaging differ between these parts?

A: The 63648-2 packaging specification is not provided in available documentation. The 63648-1 is supplied in cut tape (CT) format, which is standard for automated assembly and component handling systems.

Q: Are the contact finish specifications identical?

A: The 63648-2 specifies tin contact finish. The 63648-1 contact finish specification is not provided in available documentation. Both parts use brass as the base contact material.

Q: What wire gauge range is supported by both parts?

A: Both 63648-2 and 63648-1 support 14-20 AWG wire gauges with insulation diameter range of 0.085" to 0.135" (2.16mm to 3.43mm).

Q: Is the Faston series designation consistent across both parts?

A: Yes. Both 63648-2 and 63648-1 belong to the Faston series and share the same base product number (63648), confirming series equivalence.
