TE Connectivity 6364372-1 USB-A Receptacle Connector Equivalent & Substitute Parts

Part Overview

The TE Connectivity 6364372-1 is a USB-A (USB TYPE-A) USB 2.0 receptacle connector designed for 4-position through-hole, right-angle mounting applications. This connector is classified as an active product and is suitable for applications requiring horizontal PCB-mounted USB connectivity with solder termination. Substitute parts are identified when inventory constraints, lead time requirements, or specific manufacturing specifications necessitate alternative part selection while maintaining electrical and mechanical compatibility.

Substiute Parts

6364372-1

TE Connectivity AMP ConnectorsIn Stock: 7876364372-1 Datasheet

Current PartRFQ

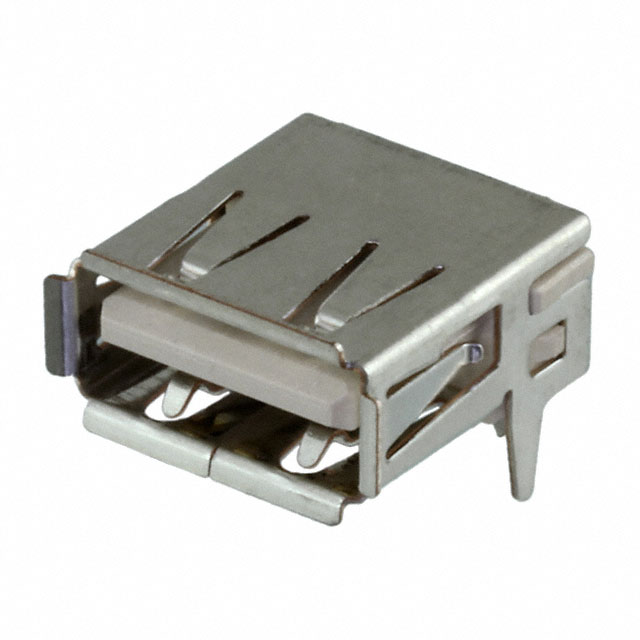

6364372-2

TE Connectivity AMP ConnectorsIn Stock: 429776364372-2 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the TE Connectivity 6364372-1 are identified based on strict electrical and mechanical parameter equivalence. The following parameters must remain identical for substitution validity:

• Connector Type: USB-A (USB TYPE-A)
• Number of Contacts: 4
• Gender: Receptacle
• USB Specification: USB 2.0
• Mounting Type: Through Hole, Right Angle
• Mounting Feature: Horizontal
• Termination: Solder
• Operating Temperature Range: -55°C to 85°C
• Current Rating: 1A per Contact
• Voltage Rating: 30VAC
• Mating Cycles: 1500
• Material Flammability Rating: UL94 V-0
• RoHS Compliance: RoHS Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

The substitute part 6364372-2 meets all these criteria and is therefore classified as a parametric equivalent. Variations in shell/shielding material composition and insulation color do not affect functional compatibility in applications where these parameters are not design-critical constraints.

Parameter Comparison

Engineering Selection Recommendations

Both the TE Connectivity 6364372-1 and 6364372-2 are active products manufactured by TE Connectivity AMP Connectors and are fully RoHS compliant with UL94 V-0 material flammability certification. Both parts satisfy the same electrical specifications for USB 2.0 applications, including current rating, voltage rating, operating temperature range, and mating cycle requirements.

The primary differences between these parts are shell/shielding material composition (copper alloy versus stainless steel) and insulation color (black versus natural). These differences do not affect electrical performance or mechanical compatibility in standard USB 2.0 receptacle applications.

Selection between 6364372-1 and 6364372-2 should be based on inventory availability, lead time requirements, and any application-specific material or aesthetic specifications. Both parts are suitable for direct substitution in through-hole, right-angle PCB mounting configurations requiring solder termination.

Frequently Asked Questions (FAQ)

Q: Can 6364372-2 be used as a direct replacement for 6364372-1 in existing designs?

A: Yes. Both parts are parametrically equivalent USB-A receptacle connectors with identical electrical specifications, mounting configurations, and compliance certifications. Direct substitution is supported for applications where shell material composition and insulation color are not design-critical parameters.

Q: What are the differences between 6364372-1 and 6364372-2?

A: The parts differ in shell/shielding material (copper alloy versus stainless steel) and insulation color (black versus natural). All electrical and mechanical parameters, including connector type, contact count, USB specification, mounting type, current rating, voltage rating, and operating temperature range, are identical.

Q: Are both parts RoHS compliant?

A: Yes. Both 6364372-1 and 6364372-2 are RoHS compliant and carry UL94 V-0 material flammability certification.

Q: What is the operating temperature range for these connectors?

A: Both parts operate across a temperature range of -55°C to 85°C.

Q: What is the current rating per contact?

A: Both parts are rated for 1A per contact at 30VAC.

Q: Are these connectors suitable for USB 2.0 applications?

A: Yes. Both 6364372-1 and 6364372-2 are USB 2.0 specification receptacle connectors designed for 4-position through-hole, right-angle mounting.

Q: What is the mating cycle rating?

A: Both parts are rated for 1500 mating cycles.

Q: What packaging format is used for these connectors?

A: Both parts are supplied in tube packaging.

Q: What is the moisture sensitivity level?

A: Both parts have a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life under standard storage conditions.
