TE Connectivity AMP Connectors 6364289-1 Equivalent & Substitute Parts

Part Overview

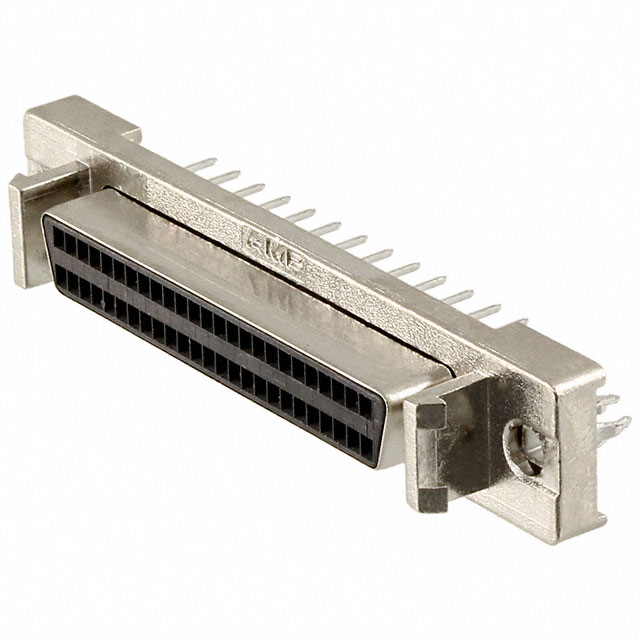

The TE Connectivity AMP Connectors 6364289-1 is a 50 Position D-Type Receptacle connector with female sockets, designed for through-hole solder termination applications. This connector belongs to the AMPLIMITE .050 III series and features a shielded, board-locked housing with nickel-plated steel shell and gold-plated contacts.

The 6364289-1 carries an Obsolete product status. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support legacy system maintenance and repairs.

Substiute Parts

6364289-1

TE Connectivity AMP ConnectorsIn Stock: 9236364289-1 Datasheet

Current PartRFQ

6364676-4

TE Connectivity AMP ConnectorsIn Stock: 8526364676-4 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of D-Sub D-Type connectors is determined by strict equivalence across the following critical parameters:

Connector Configuration: Connector type (Receptacle, Female Sockets), number of positions (50), number of rows (2), and shell size with pitch specification (0.050 Pitch x 0.100 Row to Row) must be identical.

Electrical Specifications: Current rating (1A) and voltage rating (30V) must match or exceed the original specification.

Mechanical Interface: Mounting type (Through Hole) and termination method (Solder) must be identical to ensure PCB compatibility and assembly process alignment.

Series Compatibility: Parts must belong to the AMPLIMITE .050 III series to ensure mechanical and electrical interchangeability.

Material and Environmental Specifications: Shell material finish (Steel, Nickel Plated), contact material and finish (Phosphor Bronze, Gold Plated), operating temperature range (-55°C ~ 105°C), and compliance certifications (RoHS Compliant, MSL 1) must be maintained.

Features: Board Lock and Shielded features must be present in substitute parts.

Parameter Comparison

Engineering Selection Recommendations

The substitute part 6364676-4 is electrically and mechanically equivalent to the main part 6364289-1 across all specified parameters. Both parts are manufactured by TE Connectivity AMP Connectors within the AMPLIMITE .050 III series and maintain identical connector configuration, electrical ratings, material specifications, and environmental compliance.

The 6364289-1 carries Obsolete product status. The 6364676-4 provides functional equivalence for applications requiring 50-position D-Type receptacle connectors with female sockets, through-hole solder termination, and the specified electrical and environmental performance characteristics.

Both parts maintain RoHS Compliance and MSL 1 (Unlimited) moisture sensitivity rating, supporting deployment in standard manufacturing and storage environments without special handling requirements.

Selection between these parts should be based on current inventory availability, lead time requirements, and application-specific supply chain considerations.

Frequently Asked Questions (FAQ)

Q: Can the 6364676-4 be used as a direct replacement for the 6364289-1?

A: Yes. The 6364676-4 is electrically and mechanically equivalent to the 6364289-1. Both connectors share identical specifications for connector type, position count, row configuration, pitch, mounting method, termination type, electrical ratings, material composition, and environmental operating range.

Q: Are there any differences in the connector housing or pin layout between these parts?

A: No. Both parts feature identical shell size (0.050 Pitch x 0.100 Row to Row), housing material (Steel, Nickel Plated), and pin configuration (50 positions, 2 rows, female sockets). The mechanical interface with PCBs and mating plugs is identical.

Q: Do both parts support the same current and voltage specifications?

A: Yes. Both the 6364289-1 and 6364676-4 are rated for 1A current and 30V voltage, with identical operating temperature range of -55°C to 105°C.

Q: Are there any compliance or certification differences?

A: No. Both parts are RoHS Compliant, carry MSL 1 (Unlimited) moisture sensitivity rating, and meet identical environmental and regulatory requirements.

Q: What is the significance of the AMPLIMITE .050 III series designation?

A: The AMPLIMITE .050 III series designation indicates the connector family, pitch specification (0.050 inch), and generation level. Both parts belong to this series, ensuring mechanical and electrical interchangeability within the product line.

Q: Can these connectors be used in high-temperature applications?

A: Both connectors support an operating temperature range of -55°C to 105°C. Applications requiring operation outside this range require alternative connector designs.

Q: Are solder termination techniques identical for both parts?

A: Yes. Both parts use identical solder termination methods for through-hole PCB mounting. Standard wave soldering and hand soldering techniques apply to both connectors.
