TE Connectivity AMP Connectors 63636-1 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 63636-1 is a magnetic terminal connector designed for 27-30 AWG wire gauges with insulation displacement contact (IDC) termination. This component belongs to the Mag-Mate series and features poke-in terminal technology with locking capability. The part is classified as obsolete, necessitating identification of active equivalent alternatives to maintain supply chain continuity and support ongoing applications requiring this terminal connector specification.

Substiute Parts

63636-1

TE Connectivity AMP ConnectorsIn Stock: 90763636-1 Datasheet

Current PartRFQ

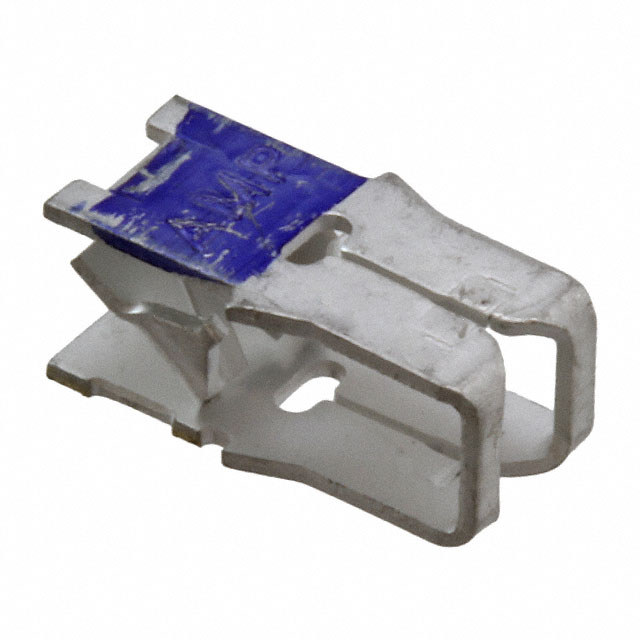

62526-1

TE Connectivity AMP ConnectorsIn Stock: 109562526-1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete 63636-1 is based on electrical and mechanical parameter alignment within the Mag-Mate terminal connector family. The substitute part 62526-1 maintains functional equivalence through identical specifications across the following critical parameters:

• Wire gauge range: 27-30 AWG
• Termination technology: IDC (Insulation Displacement Contact)
• Terminal type: Poke-In Terminal
• Style designation: 300
• Size classification: 2
• Locking feature: Present
• Moisture sensitivity level: 1 (Unlimited)
• ECCN and HTSUS classifications: Identical

The primary distinction between these parts is product status and packaging configuration. The substitute part 62526-1 is active in production, whereas 63636-1 is obsolete. Both parts are manufactured by TE Connectivity AMP Connectors and belong to the same Mag-Mate series, ensuring mechanical and electrical compatibility for direct substitution applications.

Parameter Comparison

Engineering Selection Recommendations

The substitute part 62526-1 is the appropriate selection for applications currently specified with 63636-1. This substitution is supported by:

1. Functional Equivalence: All electrical and mechanical parameters are identical, including wire gauge range, termination method, terminal type, and locking features.

2. Product Status: The substitute part 62526-1 is active in production, ensuring long-term availability and supply chain reliability compared to the obsolete 63636-1.

3. Compliance Alignment: Both parts maintain identical ROHS3 compliance status, ECCN classification (EAR99), and HTSUS coding (8536.90.4000), supporting regulatory and trade requirements.

4. Moisture Sensitivity: Both parts share MSL 1 (Unlimited) rating, indicating equivalent environmental performance characteristics.

5. Manufacturer Consistency: Both parts are manufactured by TE Connectivity AMP Connectors within the Mag-Mate series, ensuring design continuity and connector ecosystem compatibility.

Frequently Asked Questions (FAQ)

Q: Can 62526-1 be used as a direct replacement for 63636-1?

A: Yes. The 62526-1 is a direct functional equivalent. All critical electrical and mechanical parameters are identical, including wire gauge (27-30 AWG), termination method (IDC), terminal type (poke-in), style (300), size (2), and locking features. Both parts are manufactured by TE Connectivity AMP Connectors within the Mag-Mate series.

Q: What is the primary reason for substitution?

A: The 63636-1 is classified as obsolete, while 62526-1 is active in production. Substitution ensures continued component availability and supply chain continuity for applications requiring this terminal connector specification.

Q: Are there compliance differences between these parts?

A: No. Both parts maintain identical ROHS3 compliance status, EAR99 ECCN classification, and 8536.90.4000 HTSUS coding. Moisture sensitivity levels are also identical at MSL 1 (Unlimited).

Q: What is the packaging difference?

A: The 63636-1 packaging is not specified in available documentation. The 62526-1 is supplied in bulk packaging. Packaging configuration does not affect electrical or mechanical performance for terminal connector applications.

Q: Are these parts from the same manufacturer?

A: Yes. Both 63636-1 and 62526-1 are manufactured by TE Connectivity AMP Connectors and belong to the Mag-Mate connector series, ensuring design consistency and ecosystem compatibility.

Q: What wire gauges are supported?

A: Both parts support 27-30 AWG wire gauges with IDC (insulation displacement contact) termination technology.

Q: Are the locking features identical?

A: Yes. Both parts include locking features as specified in the product parameters, ensuring equivalent mechanical retention characteristics.
