Grayhill 62F15-02-P-L Rotary Encoder Optical 24PPR Equivalent & Substitute Parts

Part Overview

The Grayhill 62F15-02-P-L is an optical rotary encoder with 24 pulses per revolution (PPR), quadrature incremental output, and 5V supply voltage. This vertical-mount encoder features a 1/4" diameter flatted end actuator, integrated detent mechanism, and built-in switch functionality. The part is Active status and ROHS3 compliant, making it suitable for industrial control and automation applications requiring precise rotational position feedback.

Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the Grayhill 62-series encoder family, allowing direct functional replacement in circuit designs.

Substiute Parts

62F15-02-P-L

Grayhill Inc.In Stock: 78662F15-02-P-L Datasheet

Current PartRFQ

62N30-P

Grayhill Inc.In Stock: 82662N30-P Datasheet

SimilarRFQ

62R15-02-P

Grayhill Inc.In Stock: 68662R15-02-P Datasheet

SimilarRFQ

62S15-M5-P

Grayhill Inc.In Stock: 106462S15-M5-P Datasheet

SimilarRFQ

62S22-M5-P

Grayhill Inc.In Stock: 141762S22-M5-P Datasheet

SimilarRFQ

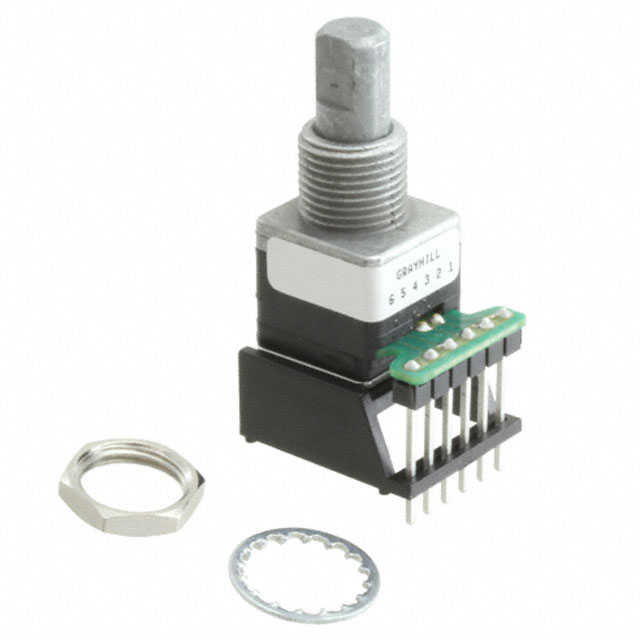

62V15-02-P

Grayhill Inc.In Stock: 83062V15-02-P Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 62F15-02-P-L are classified based on the following substitution criteria:

Direct Substitutes (Identical Electrical & Mechanical Parameters): Parts maintaining 24 PPR output, 5V supply voltage, quadrature incremental output, vertical orientation, 1/4" flatted end actuator, detent, built-in switch, PCB through-hole mounting, and PC pin termination are considered direct functional equivalents across different series designations (62R, 62S, 62V series).

Functional Alternatives (Modified Resolution): Parts with different PPR values (12 PPR or 16 PPR) while maintaining all other electrical and mechanical parameters are classified as functional alternatives suitable for applications where resolution requirements differ.

Supply Voltage Variants: The 62V15-02-P operates at 3.3V supply voltage instead of 5V, requiring circuit-level voltage compatibility verification before substitution.

Parameter Comparison

Engineering Selection Recommendations

For Direct Replacement (No Circuit Modification Required):

The 62R15-02-P and 62S15-M5-P are direct functional equivalents to the 62F15-02-P-L. Both parts maintain identical electrical specifications (24 PPR, 5V supply), mechanical configuration (1/4" flatted end actuator, vertical orientation, PCB through-hole mounting), and compliance certifications (ROHS3 Compliant, REACH Unaffected). Selection between these three parts depends on inventory availability and series preference, with no performance differentiation.

For Resolution Modification:

The 62S22-M5-P (16 PPR) and 62N30-P (12 PPR) provide lower resolution alternatives while maintaining all other mechanical and electrical parameters. These substitutes are applicable only when application firmware or mechanical design accommodates reduced angular resolution. Both parts retain 5V supply voltage compatibility and identical mounting characteristics.

For Supply Voltage Compatibility:

The 62V15-02-P operates at 3.3V supply voltage and maintains 24 PPR resolution. This part is substitutable only in circuits designed for 3.3V logic levels. Direct substitution into 5V circuits requires voltage regulation or level-shifting circuitry.

All substitute parts maintain Active product status, ROHS3 compliance, and 1M cycle rotational life specification, ensuring regulatory and reliability equivalence.

Frequently Asked Questions (FAQ)

Q: Can the 62R15-02-P directly replace the 62F15-02-P-L without circuit modification?

A: Yes. The 62R15-02-P maintains identical electrical parameters (24 PPR, 5V supply), mechanical configuration (1/4" flatted end, vertical PCB through-hole mount), and compliance certifications. Direct pin-for-pin substitution is supported.

Q: What is the difference between 24 PPR, 16 PPR, and 12 PPR encoders?

A: PPR (Pulses per Revolution) defines angular resolution. The 62F15-02-P-L provides 24 pulses per complete rotation, the 62S22-M5-P provides 16 pulses, and the 62N30-P provides 12 pulses. Lower PPR values reduce angular resolution but may be suitable for applications requiring coarser position feedback.

Q: Is the 62V15-02-P compatible with 5V circuits?

A: The 62V15-02-P operates at 3.3V supply voltage. Direct connection to 5V circuits will damage the encoder. Substitution requires external voltage regulation or level-shifting circuitry to convert 5V supply to 3.3V.

Q: Are all substitute parts ROHS3 compliant?

A: Yes. All listed substitute parts (62R15-02-P, 62S15-M5-P, 62S22-M5-P, 62N30-P, 62V15-02-P) are ROHS3 compliant and REACH unaffected, matching the compliance status of the 62F15-02-P-L.

Q: What mounting options are available for these encoders?

A: All listed parts use PCB through-hole mounting with PC pin termination and vertical orientation. No surface-mount or alternative mounting variants are included in this substitute list.

Q: Do all substitute parts include detent and built-in switch functionality?

A: Yes. All substitute parts maintain detent mechanism and integrated switch functionality identical to the 62F15-02-P-L.

Q: What is the rotational life specification for substitute parts?

A: All substitute parts specify 1M (1 million) cycle minimum rotational life, matching the 62F15-02-P-L specification.
