TE Connectivity AMP Connectors 62318-1 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 62318-1 is a Terminal Crimpband, Open Band Connector Crimp terminal designed for splice applications with a wire gauge range of 1500-4600 CMA. This component features a serrated mating area and non-insulated construction, utilizing crimp termination technology. The part is classified as obsolete, necessitating identification of active equivalent alternatives to maintain supply chain continuity and ensure design compatibility in new procurement cycles.

Substiute Parts

62318-1

TE Connectivity AMP ConnectorsIn Stock: 84962318-1 Datasheet

Current PartRFQ

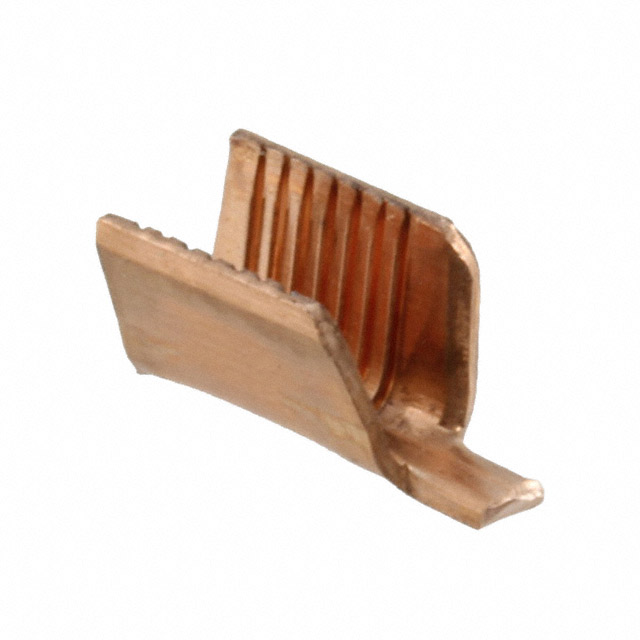

964156-1

TE Connectivity AMP ConnectorsIn Stock: 9793964156-1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 62318-1 terminal is based on functional equivalence across the following critical parameters:

Terminal Construction & Function: Both the main part and substitute maintain identical terminal type classification (Crimpband, Open Band) and termination method (Crimp), ensuring mechanical and electrical compatibility within splice applications.

Wire Gauge Compatibility: The substitute part 964156-1 operates within an expanded wire gauge range of 1500-5000 CMA, which encompasses the original 1500-4600 CMA specification. This extended range provides equivalent functionality for the original application envelope while supporting additional wire sizes.

Material & Environmental Properties: Both parts feature non-insulated construction with serrated mating areas, identical RoHS3 compliance status, and matching Moisture Sensitivity Level (MSL) ratings of 1 (Unlimited), confirming equivalent environmental performance and regulatory standing.

Electrical & Mechanical Standards: Identical ECCN (EAR99) and HTSUS (8536.90.4000) classifications confirm equivalent electrical and mechanical characteristics across both components.

Parameter Comparison

Engineering Selection Recommendations

The 964156-1 terminal serves as a direct functional substitute for the obsolete 62318-1 component. Selection of the 964156-1 is supported by the following engineering criteria:

Product Status & Availability: The 964156-1 maintains active product status with confirmed inventory of 9693 pieces in stock, providing reliable supply chain access compared to the obsolete 62318-1.

Regulatory Compliance: Both components maintain identical ROHS3 compliance and EAR99 export classification, ensuring equivalent regulatory standing for applications requiring compliance documentation.

Functional Equivalence: Identical terminal construction, termination methodology, and environmental performance characteristics (MSL 1) confirm that the 964156-1 operates within the same electrical and mechanical performance envelope as the original component.

Wire Gauge Coverage: The expanded wire gauge range of the 964156-1 (1500-5000 CMA) encompasses the full operational range of the original part (1500-4600 CMA), ensuring compatibility with existing designs while supporting extended application flexibility.

Frequently Asked Questions (FAQ)

Q: Can the 964156-1 directly replace the 62318-1 in existing designs?

A: Yes. Both components share identical terminal type (Crimpband, Open Band), termination method (Crimp), insulation classification (Non-Insulated), and feature set (Serrated Mating Area). The 964156-1 wire gauge range (1500-5000 CMA) encompasses the original specification (1500-4600 CMA), confirming functional compatibility.

Q: What is the primary difference between these two parts?

A: The 964156-1 features an expanded wire gauge range extending to 5000 CMA compared to the 62318-1 maximum of 4600 CMA. Additionally, the 964156-1 maintains active product status with current manufacturing and inventory availability, whereas the 62318-1 is classified as obsolete.

Q: Are there packaging differences between the main part and substitute?

A: The 964156-1 is supplied in Cut Tape (CT) packaging format. The original 62318-1 packaging specification was not provided in the technical documentation. Packaging format should be confirmed against procurement requirements for your specific application.

Q: Do both parts meet the same regulatory and compliance standards?

A: Yes. Both the 62318-1 and 964156-1 maintain identical ROHS3 compliance status, EAR99 export classification, and HTSUS code (8536.90.4000). Moisture Sensitivity Level ratings are identical at MSL 1 (Unlimited).

Q: Is the 964156-1 suitable for applications originally designed for the 62318-1?

A: Yes. Identical electrical and mechanical parameters, combined with equivalent environmental performance ratings and regulatory compliance, confirm that the 964156-1 operates within the same functional specification envelope as the original 62318-1 component.
