TE Connectivity AMP Connectors 62091-2 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 62091-2 is a 0.250" (6.35mm) Quick Connect Female 12-18 AWG Crimp Connector with non-insulated construction, designed for free hanging in-line and right angle mounting applications. This component features an angled 90° flag terminal configuration with brass contact material and tin finish, suitable for Faston series connector systems.

The 62091-2 carries an obsolete product status. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production and maintenance requirements for systems utilizing this connector specification.

Substiute Parts

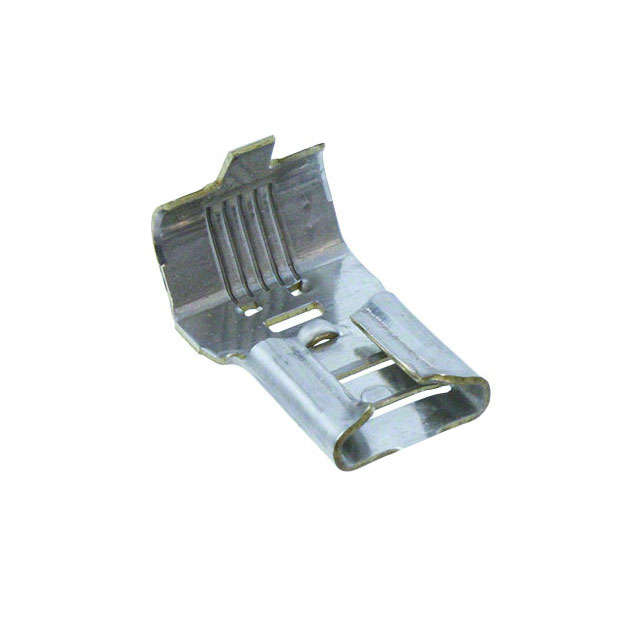

62091-2

TE Connectivity AMP ConnectorsIn Stock: 73762091-2 Datasheet

Current PartRFQ

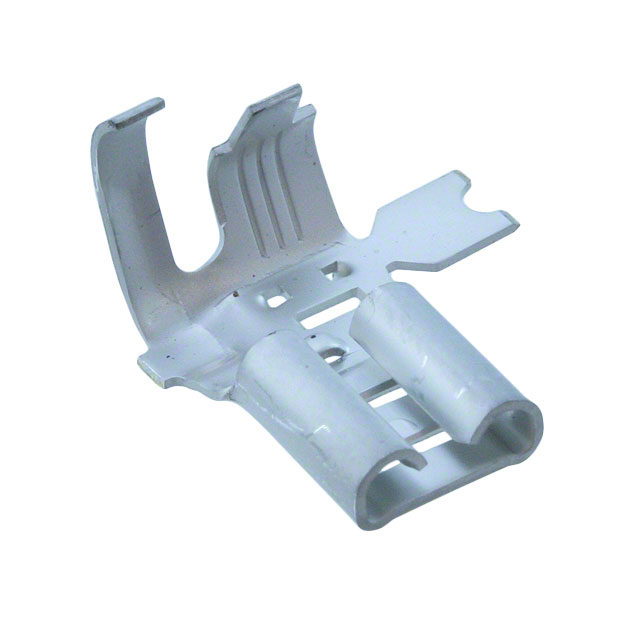

41532

TE Connectivity AMP ConnectorsIn Stock: 29782341532 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 62091-2 is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part must maintain identical specifications for tab dimensions (width, thickness, and length), wire gauge compatibility, terminal orientation, contact material composition, and finish specification.

The TE Connectivity AMP Connectors 41532 qualifies as a direct substitute based on the following matching parameters:

Tab Width: 0.250" (6.35mm) Tab Thickness: 0.032" (0.81mm) Tab Length: 0.305" (7.75mm) Wire Gauge: 12-18 AWG Gender: Female Terminal Type: Angled - 90°, Flag Termination: Crimp Contact Material: Brass Contact Finish: Tin Insulation: Non-Insulated Mounting Type: Free Hanging (In-Line), Right Angle Series: Faston RoHS Status: ROHS3 Compliant Moisture Sensitivity Level: 1 (Unlimited)

The primary distinction between these parts is product status and packaging configuration. The 62091-2 is obsolete, while the 41532 maintains active product status with significantly higher inventory availability.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity AMP Connectors 41532 is the direct functional equivalent to the obsolete 62091-2. All critical electrical and mechanical parameters are identical, ensuring complete interchangeability in applications requiring 0.250" Quick Connect Female 12-18 AWG Crimp Connectors with angled 90° flag terminal configuration.

Selection of the 41532 is supported by the following factors:

Product Status: The 41532 maintains active product status, ensuring continued manufacturer support, quality assurance, and long-term availability. The 62091-2 obsolete status creates supply chain risk and limits access to new inventory.

Compliance Certifications: Both parts maintain ROHS3 compliance and identical Moisture Sensitivity Level (MSL) ratings, confirming equivalent environmental and regulatory performance.

Inventory Availability: The 41532 demonstrates substantially higher inventory levels (297765 Pcs versus 680 Pcs), providing superior supply chain security for production and maintenance applications.

Packaging Configuration: The 41532 is supplied in Cut Tape (CT) packaging, which is standard for high-volume component distribution and automated assembly processes.

For applications currently utilizing the 62091-2, transition to the 41532 eliminates obsolescence risk while maintaining complete functional and dimensional compatibility.

Frequently Asked Questions (FAQ)

Q: Are the 62091-2 and 41532 mechanically interchangeable?

A: Yes. Both parts feature identical tab dimensions (0.250" width, 0.032" thickness, 0.305" length), terminal orientation (angled 90° flag), and mounting configuration (free hanging in-line and right angle). They are direct mechanical equivalents.

Q: Can the 41532 be used as a direct replacement for the 62091-2 in existing designs?

A: Yes. The 41532 matches all critical electrical and mechanical specifications of the 62091-2, including wire gauge (12-18 AWG), contact material (brass), contact finish (tin), and insulation type (non-insulated). No design modifications are required.

Q: What is the primary difference between these two parts?

A: The 62091-2 is obsolete, while the 41532 maintains active product status. The 41532 is supplied in Cut Tape (CT) packaging and has significantly higher inventory availability. All functional specifications are identical.

Q: Does the packaging difference affect compatibility?

A: No. Packaging configuration (Cut Tape versus bulk) does not affect the electrical or mechanical performance of the connector terminal itself. The packaging difference relates only to distribution and handling methods.

Q: Are both parts RoHS compliant?

A: Yes. Both the 62091-2 and 41532 are ROHS3 compliant and carry identical Moisture Sensitivity Level (MSL) ratings of 1 (Unlimited), confirming equivalent environmental performance.

Q: Which part should be specified for new designs?

A: The 41532 should be specified for new designs. As an active product with superior inventory availability and identical specifications, it eliminates obsolescence risk while providing complete functional equivalence.

Q: Is there any performance difference between these connectors?

A: No. Both parts are manufactured by TE Connectivity AMP Connectors within the Faston series and maintain identical electrical and mechanical performance characteristics across all specified parameters.
