TE Connectivity AMP Connectors 62068-1 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 62068-1 is a 0.250" (6.35mm) Quick Connect Female and Male 10-14 AWG Crimp Connector with non-insulated construction, belonging to the Faston series of stacked terminal connectors. This component is designed for free-hanging in-line mounting applications requiring crimp termination on wire gauges between 10-14 AWG.

The 62068-1 carries an Obsolete product status. Identification of equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production and maintenance requirements for systems utilizing this connector type.

Key Parameters

Parameter	Value
Tab Width	0.250" (6.35mm)
Tab Thickness	0.032" (0.81mm)
Wire Gauge	10-14 AWG
Gender	Female and Male
Termination Type	Crimp
Insulation	Non-Insulated
Contact Material	Brass
Contact Finish	Tin
Mounting Type	Free Hanging (In-Line)
Series	Faston
RoHS Status	ROHS3 Compliant
MSL Rating	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution of the 62068-1 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

Tab Width: 0.250" (6.35mm)
Tab Thickness: 0.032" (0.81mm)
Wire Gauge Range: 10-14 AWG
Gender Configuration: Female and Male
Termination Method: Crimp
Insulation Status: Non-Insulated
Contact Material: Brass
Contact Finish: Tin
Mounting Type: Free Hanging (In-Line)
Series Classification: Faston

Compliance Parameters:

RoHS3 Compliance
MSL Rating: 1 (Unlimited)

The substitute part 62068-1 must maintain identical electrical and mechanical characteristics across all mandatory parameters to ensure functional interchangeability within existing circuit designs and assembly processes.

Parameter Comparison

Parameter	62068-1 (Main Part)	62049-2 (Substitute)	Compatibility
Tab Width	0.250" (6.35mm)	0.250" (6.35mm)	Match
Tab Thickness	0.032" (0.81mm)	0.032" (0.81mm)	Match
Tab Length	0.305" (7.75mm)	0.305" (7.75mm)	Match
Wire Gauge	10-14 AWG	10-14 AWG	Match
Gender	Female and Male	Female and Male	Match
Termination	Crimp	Crimp	Match
Insulation	Non-Insulated	Non-Insulated	Match
Contact Material	Brass	Brass	Match
Contact Finish	Tin	Tin	Match
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Match
Series	Faston	Faston	Match
Length - Overall	0.590" (14.99mm)	0.770" (19.56mm)	Difference
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	Match
MSL Rating	1 (Unlimited)	1 (Unlimited)	Match
Product Status	Obsolete	Active	Difference

Engineering Selection Recommendations

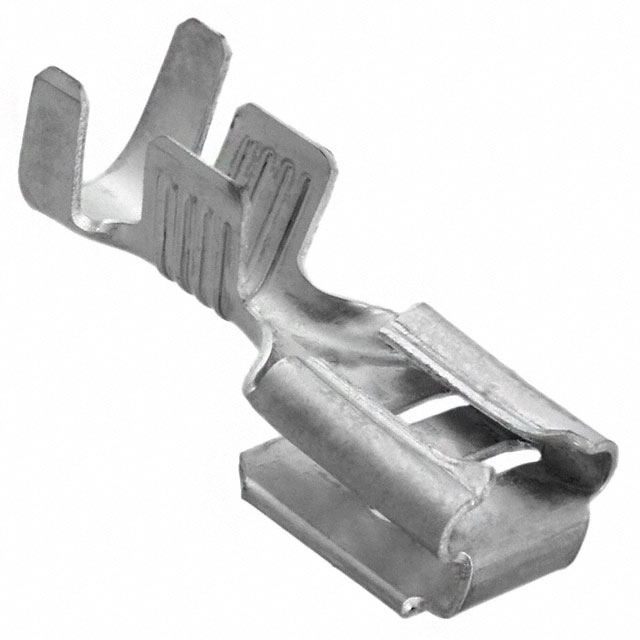

The TE Connectivity AMP Connectors 62049-2 serves as a direct functional substitute for the obsolete 62068-1 model. Both components maintain identical electrical and mechanical specifications across all critical connection parameters, including tab dimensions, wire gauge compatibility, and contact material composition.

The 62049-2 is classified as an Active product, ensuring continued availability and supply chain support. Both parts maintain ROHS3 compliance and unlimited moisture sensitivity ratings, satisfying regulatory and environmental requirements.

The 62049-2 exhibits a longer overall length of 0.770" (19.56mm) compared to the 62068-1 at 0.590" (14.99mm). This dimensional difference must be evaluated within the context of specific application space constraints and mechanical assembly requirements. The increased length does not affect electrical performance or connection integrity.

Selection of the 62049-2 is supported by active product status, full regulatory compliance, and equivalent functional performance across all specified electrical and mechanical parameters.

Frequently Asked Questions (FAQ)

Q: Can the 62049-2 be used as a direct replacement for the 62068-1 in existing assemblies?

A: The 62049-2 maintains identical electrical and mechanical specifications for tab width, thickness, wire gauge range, termination method, and contact materials. The primary difference is overall length. Compatibility depends on available space within the assembly. If the assembly accommodates the longer 0.770" (19.56mm) dimension, the 62049-2 functions as a direct substitute.

Q: What is the significance of the product status difference between these parts?

A: The 62068-1 is classified as Obsolete, indicating discontinued manufacturing and limited availability. The 62049-2 is classified as Active, ensuring ongoing production, supply chain availability, and manufacturer support. For new designs or ongoing production requirements, the 62049-2 is the recommended selection.

Q: Are there any compliance or certification differences between these connectors?

A: Both the 62068-1 and 62049-2 maintain ROHS3 compliance and carry an MSL rating of 1 (Unlimited). No compliance or certification differences exist between these parts.

Q: What wire gauge range do these connectors support?

A: Both connectors support crimp termination on wire gauges between 10-14 AWG. This range encompasses standard industrial and automotive wiring applications.

Q: What is the difference in overall length between these parts?

A: The 62068-1 measures 0.590" (14.99mm) in overall length, while the 62049-2 measures 0.770" (19.56mm). The 62049-2 is 0.180" (4.57mm) longer. This difference must be considered in space-constrained applications.

Q: Are these connectors insulated or non-insulated?

A: Both the 62068-1 and 62049-2 are non-insulated connectors. The brass contact material is exposed and requires proper isolation within the application circuit design.

Q: What is the tab width specification for these connectors?

A: Both connectors feature a 0.250" (6.35mm) tab width with 0.032" (0.81mm) thickness, ensuring compatibility with standard 0.250" quick-connect receptacles and tabs.
