Würth Elektronik 62000411722 Equivalent & Substitute Parts

Part Overview

The Würth Elektronik 62000411722 is an active rectangular connector header designed for wire-to-board applications. This through-hole, right-angle connector features 4 positions at 0.079" (2.00mm) pitch with shrouded 4-wall construction and kinked pin solder termination. The connector is specified for board-to-cable/wire interconnection in applications requiring push-pull fastening and rated for 2A at 125VAC operation across -25°C to 85°C temperature range. Identifying equivalent substitute parts is necessary when managing inventory constraints, ensuring supply chain continuity, or accommodating design flexibility within established electrical and mechanical parameters.

Substiute Parts

62000411722

Würth ElektronikIn Stock: 214562000411722 Datasheet

Current PartRFQ

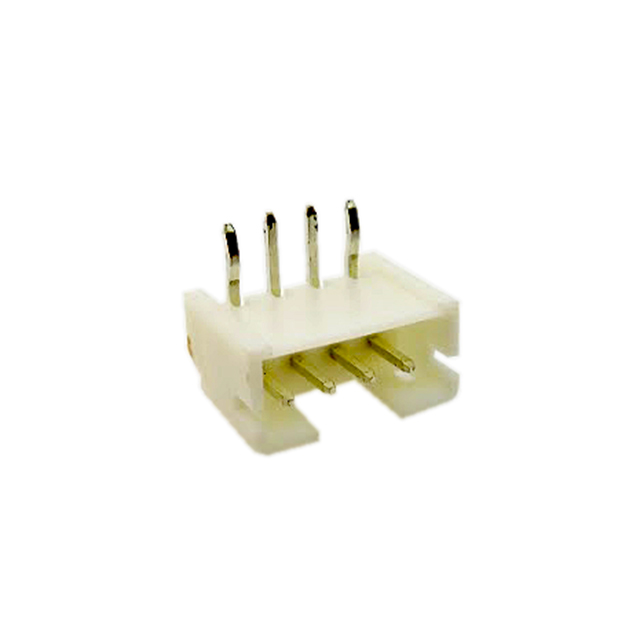

2SH-C-04-TR

Adam TechIn Stock: 50762SH-C-04-TR Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Würth Elektronik 62000411722 are identified based on strict electrical and mechanical compatibility criteria. The following parameters must match or remain within acceptable tolerances for substitution:

Critical Matching Parameters:

• Connector type: Header
• Contact type: Male pin
• Pitch - mating: 0.079" (2.00mm)
• Number of positions: 4
• Number of rows: 1
• Mounting type: Through hole, right angle
• Shrouding: Shrouded - 4 wall
• Termination: Kinked pin, solder
• Insulation material: Polyamide (PA66), Nylon 6/6
• Material flammability rating: UL94 V-0
• Operating temperature range: -25°C ~ 85°C
• Current rating: 2A minimum
• Voltage rating: 100VAC minimum

The Adam Tech 2SH-C-04-TR satisfies all critical matching parameters and qualifies as a direct substitute within the established electrical and mechanical framework.

Parameter Comparison

Engineering Selection Recommendations

Both the Würth Elektronik 62000411722 and Adam Tech 2SH-C-04-TR are active products with ROHS3 compliance and UL94 V-0 flammability certification, confirming their suitability for current regulatory and safety requirements. The connectors share identical electrical ratings (2A current), matching operating temperature ranges (-25°C ~ 85°C), and equivalent mechanical construction (through-hole right-angle mounting, 4-position 2.00mm pitch, shrouded 4-wall design).

The primary electrical difference is the voltage rating: the Würth Elektronik part is rated for 125VAC while the Adam Tech substitute is rated for 100VAC. Selection between these parts depends on the application's voltage requirement. For applications operating at or below 100VAC, either part is suitable. For applications requiring 100VAC to 125VAC operation, the Würth Elektronik 62000411722 is the appropriate choice.

Both parts feature identical contact post length (0.130" / 3.30mm) and contact material finish (tin-plated). The insulation height differs slightly (0.177" versus 0.197"), which does not affect functional compatibility in standard board-to-cable interconnection applications. Contact material composition differs (copper alloy versus brass), but both materials provide equivalent electrical performance and solder reliability for this connector class.

Frequently Asked Questions (FAQ)

Q: Can the Adam Tech 2SH-C-04-TR be used as a direct replacement for the Würth Elektronik 62000411722 in all applications?

A: The Adam Tech 2SH-C-04-TR is mechanically and electrically compatible for applications operating at 100VAC or below. For applications requiring operation above 100VAC up to 125VAC, the Würth Elektronik 62000411722 must be used to maintain voltage rating compliance.

Q: What are the key electrical parameters that determine substitution compatibility?

A: The critical electrical parameters are current rating (2A minimum), voltage rating (100VAC minimum for the substitute), operating temperature range (-25°C ~ 85°C), and contact material finish (tin-plated). Both parts meet these requirements within their specified ratings.

Q: Do the different contact materials (copper alloy versus brass) affect performance?

A: Both copper alloy and brass contacts provide equivalent electrical conductivity and solder joint reliability for this connector class. The material difference does not impact functional performance in standard wire-to-board applications.

Q: Why is the insulation height different between the two parts?

A: The insulation height difference (0.177" versus 0.197") reflects design variations between manufacturers but does not affect functional compatibility. Both heights accommodate standard PCB mounting and mating interface requirements for 2.00mm pitch connectors.

Q: Are both parts RoHS3 compliant?

A: Yes, both the Würth Elektronik 62000411722 and Adam Tech 2SH-C-04-TR are ROHS3 compliant and carry UL94 V-0 flammability certification, meeting current regulatory requirements for electronic component applications.

Q: What is the difference in packaging between these parts?

A: The Würth Elektronik part is supplied in bag packaging, while the Adam Tech substitute is supplied in bulk packaging. This difference affects inventory management and handling but does not impact component functionality or performance.

Q: Can these connectors be used interchangeably in PCB designs?

A: Yes, the connectors are mechanically and electrically interchangeable for board-to-cable/wire applications within the specified electrical parameters. PCB footprints and mounting hole patterns are identical for both parts due to matching pitch, position count, and through-hole right-angle mounting specifications.
