3M 61-SN Terminal Butt Splice Equivalent & Substitute Parts

Part Overview

The 3M 61-SN is an active-status terminal butt splice connector designed for inline wire splicing applications. This fully insulated crimp terminal accommodates 18-22 AWG wire gauges and features individual openings for dual wire entries. The part is RoHS Compliant and carries MSL 1 (Unlimited) moisture sensitivity rating. Equivalent substitute parts are identified based on matching electrical specifications, mechanical compatibility, and termination method to ensure functional interchangeability in splice applications.

Substiute Parts

61-SN

3MIn Stock: 94961-SN Datasheet

Current PartRFQ

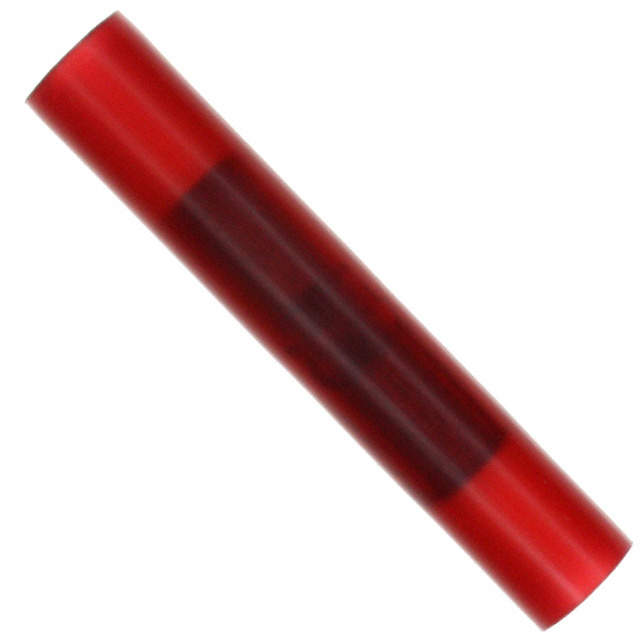

BSN18-C

Panduit CorpIn Stock: 3245BSN18-C Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 3M 61-SN is determined by the following critical parameters:

• Terminal Type: Butt Splice, Inline, Individual Openings
• Wire Gauge Range: 18-22 AWG
• Number of Wire Entries: 2
• Termination Method: Crimp
• Insulation Classification: Fully Insulated
• Color: Red

The Panduit Corp BSN18-C meets all substitution criteria. Both parts share identical terminal configuration, wire gauge compatibility, dual-entry design, crimp termination, full insulation, and red color specification. Compliance certifications differ (3M: RoHS Compliant; Panduit: ROHS3 Compliant), with ROHS3 representing an enhanced compliance standard.

Parameter Comparison

Engineering Selection Recommendations

Both the 3M 61-SN and Panduit BSN18-C are active-status products with matching electrical and mechanical specifications. Selection between these parts is based on:

• Compliance Requirements: The Panduit BSN18-C carries ROHS3 Compliant certification, which exceeds the RoHS Compliant status of the 3M 61-SN. Applications requiring enhanced RoHS compliance should specify the Panduit part.
• Packaging: The 3M 61-SN is supplied in standard packaging; the Panduit BSN18-C is supplied in bulk packaging, affecting order quantities and logistics.
• Availability: Current inventory shows 909 units of 3M 61-SN and 3,182 units of Panduit BSN18-C in stock.
• Series Designation: The Panduit part belongs to the Pan-Term® series (base product number BSN18).

Both parts satisfy identical functional requirements for 18-22 AWG inline butt splice applications with crimp termination and full insulation.

Frequently Asked Questions (FAQ)

Q: Can the Panduit BSN18-C directly replace the 3M 61-SN in existing designs?

A: Yes. Both parts share identical terminal type, wire gauge range, number of wire entries, termination method, insulation classification, and color. They are functionally interchangeable for inline butt splice applications.

Q: What is the difference between RoHS Compliant and ROHS3 Compliant?

A: ROHS3 Compliant represents an updated compliance standard with enhanced requirements. The Panduit BSN18-C meets this higher standard, while the 3M 61-SN meets the baseline RoHS Compliant specification. Both are compliant; ROHS3 is more stringent.

Q: Does packaging affect electrical or mechanical performance?

A: No. The 3M 61-SN standard packaging and Panduit BSN18-C bulk packaging do not affect terminal performance. Packaging selection is based on order quantity requirements and supply chain logistics.

Q: Are both parts suitable for the same wire gauge applications?

A: Yes. Both the 3M 61-SN and Panduit BSN18-C are rated for 18-22 AWG wire gauges and accommodate dual wire entries with crimp termination.

Q: What is the MSL rating significance?

A: The 3M 61-SN carries MSL 1 (Unlimited), indicating no moisture sensitivity restrictions during storage or handling. The Panduit BSN18-C lists MSL as Not Applicable, indicating the part does not require moisture sensitivity classification.
