TE Connectivity AMP Connectors 619127-1 Equivalent & Substitute Parts

Part Overview

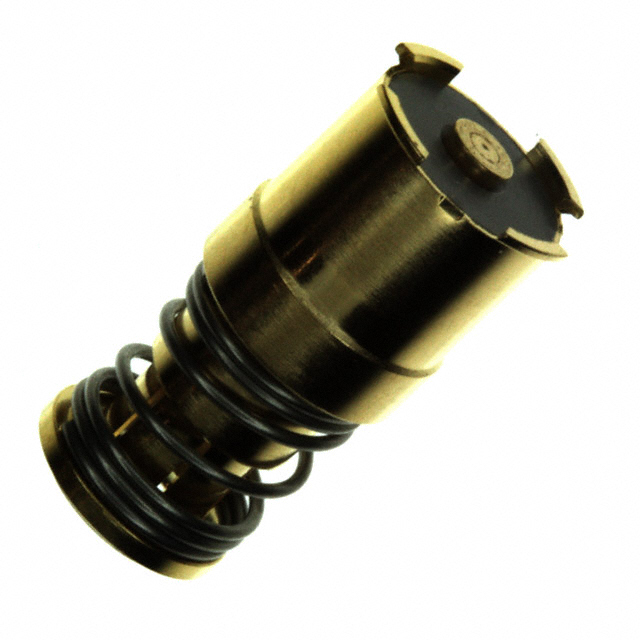

The TE Connectivity AMP Connectors 619127-1 is a coaxial compression connector designed for 50-ohm RF applications. This non-gendered stacker connector features surface mount compression termination with solder shield attachment. The part is classified as obsolete, necessitating identification of active equivalent components for new designs and ongoing production requirements. The substitute part maintains identical electrical and mechanical specifications while offering improved product lifecycle status and compliance certifications.

Substiute Parts

619127-1

TE Connectivity AMP ConnectorsIn Stock: 874619127-1 Datasheet

Current PartRFQ

619135-1

TE Connectivity AMP ConnectorsIn Stock: 10990619135-1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part 619135-1 is classified as a direct equivalent based on the following critical parameters that determine substitution compatibility:

Electrical Parameters:

• Impedance: 50 Ohms (identical)
• Frequency - Max: 6 GHz (identical)
• Voltage Rating: 125 V (identical)
• Insertion Loss: 0.2 dB (identical)

Mechanical Parameters:

• Connector Style: Coaxial Compression (identical)
• Connector Type: Non-Gendered Stacker (identical)
• Mounting Type: Surface Mount (identical)
• Contact Termination: Compression (identical)
• Shield Termination: Solder (identical)

Environmental Parameters:

• Operating Temperature Range: -40°C ~ 125°C (identical)
• Mating Cycles: 25 (identical)

Material Specifications:

• Center Contact Material: Brass (identical)
• Body Material: Brass (identical)
• Body Finish: Gold (identical)
• Center Contact Plating: Gold (identical)
• Dielectric Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyetheretherketone (PEEK) (identical)

The primary distinction between the main part and substitute is product status and compliance certification, not functional or physical characteristics.

Parameter Comparison

Engineering Selection Recommendations

For New Designs: Select TE Connectivity AMP Connectors 619135-1. This part is active and RoHS compliant, providing compliance with current regulatory requirements and long-term product availability. All electrical and mechanical parameters are identical to the obsolete 619127-1, ensuring direct functional equivalence.

For Existing Inventory Management: The 619127-1 remains electrically and mechanically compatible with applications currently utilizing this component. However, transition to 619135-1 is recommended for future production runs to ensure supply chain continuity and regulatory compliance.

Compliance Considerations: The 619135-1 carries RoHS Compliant certification, whereas the 619127-1 status is not applicable. Both parts maintain identical ECCN (EAR99) and HTSUS (8536.69.4010) classifications. Moisture Sensitivity Level remains 1 (Unlimited) for both variants, indicating no special handling requirements during storage or assembly.

Frequently Asked Questions (FAQ)

Q: Can 619135-1 be used as a direct replacement for 619127-1 in existing applications?

A: Yes. The 619135-1 is a direct functional equivalent. All electrical parameters (impedance, frequency response, insertion loss, voltage rating), mechanical specifications (connector style, mounting type, termination method), and environmental ratings (operating temperature, mating cycles) are identical between the two parts.

Q: What is the primary reason for substitution?

A: The 619127-1 is classified as obsolete, while 619135-1 is active. The substitute ensures long-term component availability and supply chain reliability. Additionally, 619135-1 carries RoHS Compliant certification.

Q: Are there packaging differences between these parts?

A: Yes. The 619127-1 packaging is not specified in available documentation. The 619135-1 is supplied in Tray packaging. Inventory availability differs: 619127-1 has 783 pieces in stock, while 619135-1 has 10,956 pieces in stock.

Q: Do these connectors require special handling during assembly?

A: Both parts carry Moisture Sensitivity Level 1 (Unlimited), indicating no moisture-related handling restrictions during storage, transportation, or assembly processes.

Q: Are there any frequency or impedance limitations when substituting?

A: No. Both parts operate identically at 50 ohms impedance with a maximum frequency of 6 GHz and insertion loss of 0.2 dB. No frequency or impedance derating is required.

Q: What is the operating temperature range for these connectors?

A: Both parts operate across -40°C to 125°C. This range is identical for 619127-1 and 619135-1.

Q: How many mating cycles are these connectors rated for?

A: Both parts are rated for 25 mating cycles, providing identical mechanical durability specifications.
