TE Connectivity AMP Connectors 61891-2 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 61891-2 is a terminal connector classified as a Male Pin (Plug) designed for 14-18 AWG wire gauges with crimp termination. This component belongs to the Shur-Plug series and features a non-insulated brass construction with a 0.156" barrel diameter. The part is currently listed as obsolete, necessitating identification of active equivalent alternatives to maintain design continuity and ensure procurement availability for new production runs and field replacements.

Substiute Parts

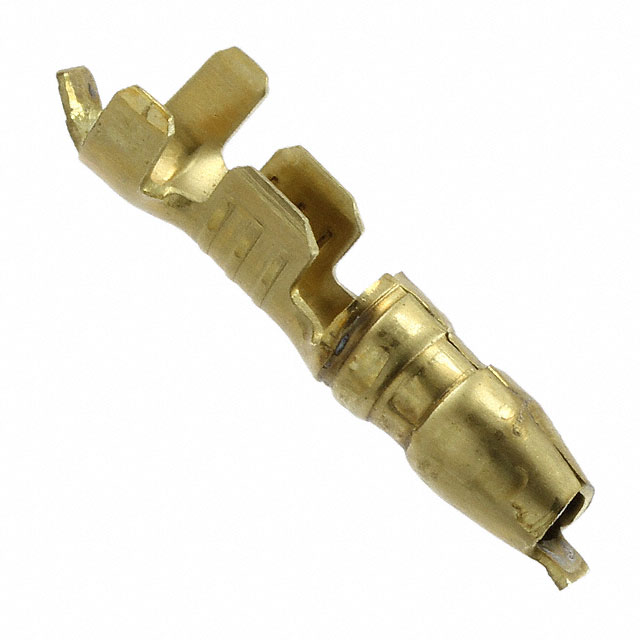

61891-2

TE Connectivity AMP ConnectorsIn Stock: 112361891-2 Datasheet

Current PartRFQ

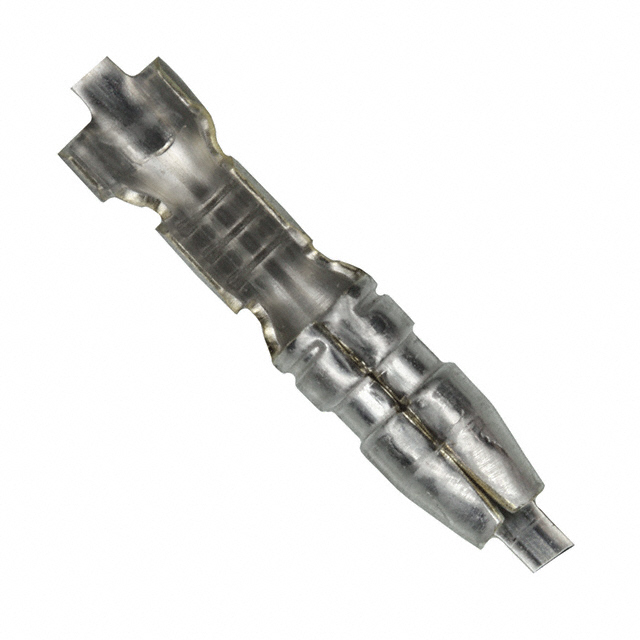

60766-2

TE Connectivity AMP ConnectorsIn Stock: 244260766-2 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 61891-2 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Terminal Type: Male, Pin (Plug)
• Wire Gauge: 14-18 AWG
• Barrel Diameter: 0.156" (3.96mm)
• Overall Length: 0.710" (18.03mm)
• Barrel Length: 0.350" (8.89mm)
• Termination Method: Crimp
• Contact Material: Brass
• Insulation Configuration: Non-Insulated
• Series Compatibility: Shur-Plug
• RoHS Compliance: ROHS3 Compliant

The substitute part 60766-2 maintains full dimensional and functional equivalence across all critical parameters. Variations in contact finish (Tin applied to 60766-2 versus unspecified finish on 61891-2) and insulation diameter range represent secondary characteristics that do not affect mechanical or electrical interchangeability within the specified wire gauge range.

Parameter Comparison

Engineering Selection Recommendations

The 60766-2 serves as the direct active equivalent for the obsolete 61891-2. Both components are manufactured by TE Connectivity AMP Connectors within the Shur-Plug series and maintain identical dimensional specifications, wire gauge ratings, and termination characteristics.

Compliance and Certification Alignment: Both parts achieve ROHS3 compliance and carry MSL Rating 1 (Unlimited moisture sensitivity level), indicating equivalent environmental performance and handling requirements. The 60766-2 carries REACH Unaffected status, confirming regulatory compliance for European markets.

Procurement Advantage: The 60766-2 is currently in active production status with 2343 pieces available in inventory, compared to the obsolete status of 61891-2. This ensures long-term supply chain continuity and eliminates obsolescence risk for new designs and production requirements.

Contact Finish Consideration: The tin contact finish applied to 60766-2 provides enhanced corrosion resistance compared to the unspecified finish of 61891-2, representing a technical improvement without introducing compatibility concerns for standard crimp termination applications.

Frequently Asked Questions (FAQ)

Q: Can 60766-2 be used as a direct replacement for 61891-2 in existing assemblies?

A: Yes. The 60766-2 maintains identical dimensional specifications, wire gauge compatibility, barrel diameter, and overall length. Both components feature identical termination methods (crimp), contact material (brass), and insulation configuration (non-insulated). Mechanical and electrical interchangeability is confirmed across all critical parameters.

Q: What is the significance of the tin contact finish on 60766-2?

A: The tin finish on 60766-2 provides enhanced corrosion resistance during storage and field deployment. This represents a material improvement over the unspecified finish of the obsolete 61891-2 and does not affect crimp termination compatibility or electrical performance within the specified 14-18 AWG wire gauge range.

Q: Are there packaging differences between 61891-2 and 60766-2?

A: The 61891-2 packaging specification is not provided in available documentation. The 60766-2 is supplied in Cut Tape (CT) packaging format, which is standard for terminal connector distribution and is compatible with automated assembly processes.

Q: Do both parts meet the same regulatory compliance standards?

A: Yes. Both 61891-2 and 60766-2 are ROHS3 compliant and carry MSL Rating 1 (Unlimited). The 60766-2 additionally carries REACH Unaffected status, confirming compliance with European chemical regulations. Both parts are classified under ECCN EAR99 and HTSUS 8536.90.4000.

Q: What is the insulation diameter range difference between the two parts?

A: The 61891-2 accommodates insulation diameters from 0.085" to 0.210" (2.16mm to 5.33mm), while the 60766-2 range is 0.085" to 0.125" (2.16mm to 3.18mm). The 60766-2 range is more restrictive but fully covers standard wire insulation diameters for 14-18 AWG conductors. Applications requiring insulation diameters exceeding 0.125" must reference the original 61891-2 specifications or identify alternative components.

Q: Why is 61891-2 listed as obsolete?

A: The 61891-2 has been discontinued by TE Connectivity AMP Connectors. The 60766-2 represents the active production equivalent and is the recommended component for all new designs and procurement requirements.
