MMCX Connector Receptacle 6-1634010-0 Equivalent & Substitute Parts

Part Overview

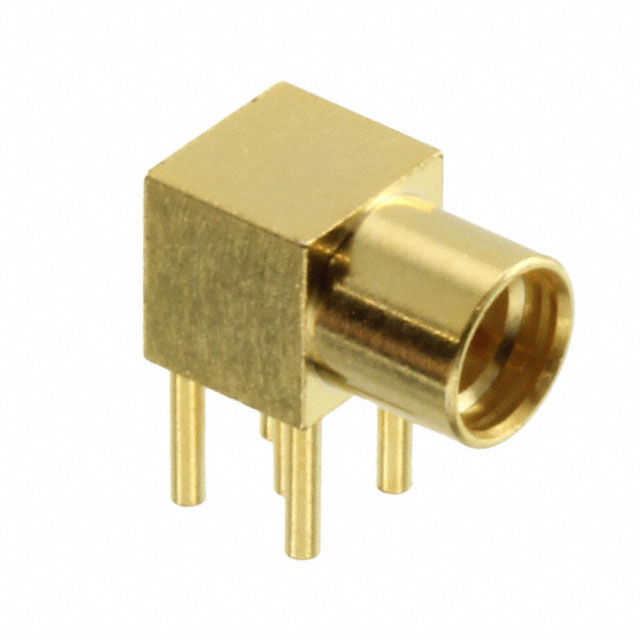

The TE Connectivity AMP Connectors model 6-1634010-0 is an MMCX connector receptacle designed for coaxial RF applications. This component is a female socket connector with 50-ohm impedance, rated for frequencies up to 6 GHz, and features right-angle through-hole solder termination for PCB mounting. The part is classified as obsolete, making identification of equivalent and substitute components necessary for ongoing system support, maintenance, and new design implementations where legacy compatibility is required.

Substiute Parts

6-1634010-0

TE Connectivity AMP ConnectorsIn Stock: 12416-1634010-0 Datasheet

Current PartRFQ

0734151000

MolexIn Stock: 7230734151000 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 6-1634010-0 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Connector Style: MMCX
• Connector Type: Receptacle, Female Socket
• Impedance: 50 Ohms
• Mounting Type: Through Hole, Right Angle
• Contact Termination: Solder
• Shield Termination: Solder
• Frequency - Max: 6 GHz
• Fastening Type: Snap-On
• Number of Ports: 1
• Center Contact Material: Beryllium Copper
• Body Material: Brass
• Dielectric Material: Polytetrafluoroethylene (PTFE)

The Molex model 0734151000 satisfies all mandatory matching parameters and is therefore classified as a direct functional equivalent. Both components are MMCX receptacle connectors with identical electrical specifications, mechanical configuration, and material composition. The substitute part is currently in active product status, providing ongoing availability and support.

Parameter Comparison

Engineering Selection Recommendations

The Molex 0734151000 is the direct equivalent substitute for the obsolete TE Connectivity 6-1634010-0. Selection of this substitute is supported by the following engineering factors:

Functional Equivalence: All critical electrical and mechanical parameters match exactly between the main part and substitute. Both components are MMCX receptacle connectors with identical 50-ohm impedance, 6 GHz frequency rating, solder termination, and through-hole right-angle mounting configuration.

Product Status: The TE Connectivity 6-1634010-0 is classified as obsolete. The Molex 0734151000 maintains active product status, ensuring continued availability, manufacturing support, and supply chain reliability.

Compliance Certifications: Both components are RoHS compliant. The Molex substitute carries ROHS3 compliance, representing current regulatory alignment. The Molex part specifies REACH Affected status, providing defined regulatory documentation, whereas the original part lists vendor-undefined REACH status.

Operating Temperature: The Molex substitute provides an extended operating temperature range of -55°C to 165°C, compared to the original -55°C to 155°C specification. This represents a 10-degree increase in maximum operating temperature, offering enhanced thermal margin for applications operating at elevated temperatures.

Moisture Sensitivity: Both components carry MSL 1 (Unlimited) classification, indicating no moisture sensitivity constraints during storage or handling.

Frequently Asked Questions (FAQ)

Q: Can the Molex 0734151000 be used as a direct replacement for the TE Connectivity 6-1634010-0 in existing designs?

A: Yes. The Molex 0734151000 is a direct functional equivalent. All electrical specifications, mechanical dimensions, mounting configuration, and material composition are identical. The connector style, impedance, frequency rating, termination method, and PCB mounting type are equivalent across both components.

Q: What is the primary reason for substitution?

A: The TE Connectivity 6-1634010-0 is classified as obsolete. The Molex 0734151000 is an active product with ongoing manufacturing and supply chain support, making it the appropriate choice for new designs, system maintenance, and component replenishment.

Q: Are there any electrical performance differences between these connectors?

A: No. Both components are rated for 50-ohm impedance, 6 GHz maximum frequency, 170 V voltage rating, and 500 mating cycles. Electrical performance is equivalent.

Q: What is the difference in operating temperature range?

A: The Molex 0734151000 operates from -55°C to 165°C, while the TE Connectivity 6-1634010-0 operates from -55°C to 155°C. The Molex substitute provides a 10-degree higher maximum operating temperature. For applications operating within the original -55°C to 155°C range, both components are suitable.

Q: Are both components RoHS compliant?

A: Yes. The TE Connectivity 6-1634010-0 is RoHS compliant. The Molex 0734151000 is ROHS3 compliant, representing current regulatory standards. Both components meet RoHS requirements.

Q: What is the packaging difference?

A: The TE Connectivity 6-1634010-0 packaging is not specified in available documentation. The Molex 0734151000 is supplied in bag packaging. Confirm packaging requirements with your procurement or assembly process specifications.

Q: Are there any REACH compliance differences?

A: The TE Connectivity 6-1634010-0 lists vendor-undefined REACH status. The Molex 0734151000 specifies REACH Affected status, indicating defined regulatory documentation is available. For applications requiring REACH compliance documentation, the Molex substitute provides explicit regulatory status.

Q: What is the moisture sensitivity level for both components?

A: Both components carry MSL 1 (Unlimited) classification. This indicates no moisture sensitivity constraints. Standard storage and handling procedures are applicable without special moisture control requirements.

Q: Can the Molex 0734151000 be used in high-frequency RF applications?

A: Yes. Both components are rated for frequencies up to 6 GHz and are designed for coaxial RF applications. The 50-ohm impedance, PTFE dielectric, and beryllium copper center contact support RF performance across the specified frequency range.
