SCHURTER 6162.0066 AC Power Connector - Equivalent & Substitute Parts

Part Overview

The SCHURTER 6162.0066 is a Power Entry Connector Receptacle designed for IEC 320-C14 panel mount applications. This component features male blades, quick connect termination, and is rated for 10A at 250VAC in commercial unfiltered configurations. The part is classified as obsolete, making identification of suitable substitutes essential for ongoing system maintenance and new design implementations where equivalent functionality is required.

Substiute Parts

6162.0066

SCHURTER Inc.In Stock: 7126162.0066 Datasheet

Current PartRFQ

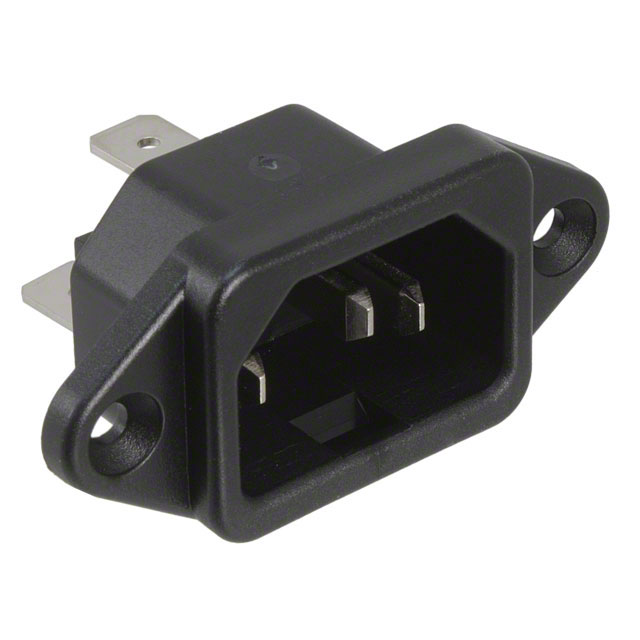

6162.0159

SCHURTER Inc.In Stock: 108266162.0159 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the SCHURTER 6162.0066 is determined by strict equivalence across the following critical parameters:

• Connector Style: IEC 320-C14 (industry standard interface)
• Connector Type: Receptacle, Male Blades (functional configuration)
• Current Rating: 10A (electrical capacity)
• Voltage Rating: 250VAC (electrical specification)
• Number of Positions: 3 (contact count)
• Mounting Type: Panel Mount, Flange (mechanical installation)
• Termination: Quick Connect - 0.250" (6.3mm) (connection method)
• Filter Type: Unfiltered - Commercial (filtering configuration)
• Material Flammability Rating: UL94 V-0 (safety compliance)
• Ingress Protection: IP20 (environmental sealing)
• Approval Agency: cCSAus, ENEC, UL (regulatory certification)
• RoHS Status: ROHS3 Compliant (environmental regulation)

The SCHURTER 6162.0159 meets all substitution criteria as a direct equivalent part.

Parameter Comparison

Engineering Selection Recommendations

The SCHURTER 6162.0159 is a direct functional equivalent to the obsolete 6162.0066. Both parts maintain identical electrical ratings (10A, 250VAC), connector configuration (IEC 320-C14 Receptacle, Male Blades), and regulatory compliance (cCSAus, ENEC, UL certifications; ROHS3 Compliant).

The 6162.0159 is currently in active production status with significantly higher inventory availability (10,745 pcs vs. 693 pcs), ensuring supply chain continuity. The substitute part includes a V-Lock Notch feature not present in the original part, providing enhanced mechanical retention without compromising electrical or mechanical compatibility.

Panel cutout dimensions show minor variation (27.60mm x 19.90mm vs. 27.20mm x 19.50mm), which falls within standard manufacturing tolerances for panel mount connectors and does not affect functional substitution.

Frequently Asked Questions (FAQ)

Q: Can the SCHURTER 6162.0159 directly replace the 6162.0066 in existing applications?

A: Yes. Both parts are IEC 320-C14 Receptacle connectors with identical electrical ratings (10A, 250VAC), contact configuration (3 positions), termination method (Quick Connect - 0.250"), and regulatory certifications. The 6162.0159 is a direct functional substitute.

Q: What is the significance of the V-Lock Notch feature on the 6162.0159?

A: The V-Lock Notch provides enhanced mechanical retention of the mating connector. This feature does not affect electrical performance or mechanical compatibility and represents an improvement over the original design.

Q: Are there panel cutout dimension differences between these parts?

A: Yes. The 6162.0066 requires a rectangular cutout of 27.20mm x 19.50mm, while the 6162.0159 requires 27.60mm x 19.90mm. These dimensions fall within standard manufacturing tolerances for IEC 320-C14 panel mount connectors. Existing panel cutouts for the 6162.0066 may require minor enlargement to accommodate the 6162.0159.

Q: What is the packaging difference between these parts?

A: The 6162.0066 is supplied in unspecified packaging, while the 6162.0159 is supplied in bulk packaging. Both are suitable for component selection and installation.

Q: Why is the 6162.0066 classified as obsolete?

A: The 6162.0066 has been superseded by the 6162.0159 in the SCHURTER product line. The substitute part offers equivalent functionality with enhanced features and active production status.

Q: Are both parts ROHS3 compliant?

A: Yes. Both the 6162.0066 and 6162.0159 are ROHS3 Compliant and REACH Unaffected, meeting current environmental regulations for electronic components.
