SCHURTER 6162.0062 AC Power Connector - Equivalent & Substitute Parts

Part Overview

The SCHURTER 6162.0062 is an IEC 320-C14 power entry connector receptacle designed for panel-mount applications with screw termination. This component functions as a male-blade receptacle for AC power inlet connections in industrial and commercial equipment. The part is currently classified as obsolete, necessitating identification of active equivalent alternatives to maintain supply chain continuity and support ongoing maintenance and new design requirements.

Substiute Parts

6162.0062

SCHURTER Inc.In Stock: 8686162.0062 Datasheet

Current PartRFQ

6162.0061

SCHURTER Inc.In Stock: 11846162.0061 Datasheet

DirectRFQ

703W-00/05

QualtekIn Stock: 1121703W-00/05 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the SCHURTER 6162.0062 is determined by strict equivalence across the following critical parameters:

• Connector Style & Type: IEC 320-C14 receptacle with male blades (non-negotiable for mating compatibility)
• Electrical Ratings: 10A current and 250VAC voltage (must match or exceed)
• Mechanical Configuration: Panel mount with flange mounting
• Termination Method: Screw termination (determines wiring interface)
• Panel Cutout Dimensions: Rectangular 27.30mm x 19.30mm (determines panel integration feasibility)
• Regulatory Compliance: UL94 V-0 flammability, IP20 ingress protection, and multi-agency approvals (cCSAus, ENEC, UL)

Two substitute parts are identified based on these criteria. The direct manufacturer substitute maintains identical specifications across all parameters. The similar manufacturer substitute provides functional equivalence but introduces a termination method variation and panel cutout dimension difference, requiring engineering evaluation for specific applications.

Parameter Comparison

Engineering Selection Recommendations

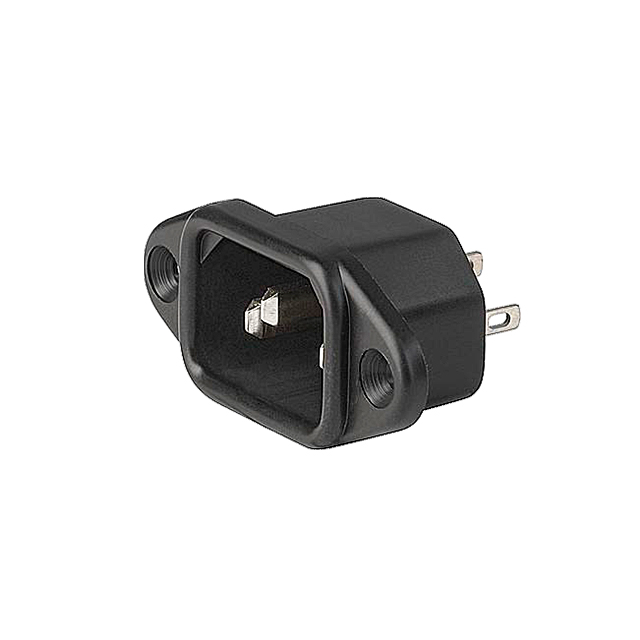

SCHURTER 6162.0061 (Direct Substitute - Recommended)

The SCHURTER 6162.0061 is the primary substitute for the obsolete 6162.0062. This part maintains identical electrical ratings (10A, 250VAC), mechanical configuration (panel mount with flange), termination method (screw), and panel cutout dimensions (27.30mm x 19.30mm). Both parts share the same series designation (6061) and carry equivalent regulatory approvals (cCSAus, ENEC, UL) with UL94 V-0 flammability rating and IP20 ingress protection. The 6162.0061 is currently in active production status with higher inventory availability (1133 pcs vs. 762 pcs for the obsolete part), ensuring long-term supply chain stability.

Qualtek 703W-00/05 (Similar Substitute - Conditional)

The Qualtek 703W-00/05 provides functional equivalence for IEC 320-C14 power entry applications with matching electrical ratings and panel-mount configuration. However, two parameter differences require engineering evaluation: termination method differs (quick connect 0.157" vs. screw), and panel cutout dimensions are larger (30.40mm x 22.40mm vs. 27.30mm x 19.30mm). This substitute is suitable only for new designs or retrofit applications where panel modifications are acceptable. The part carries UL and CSA approvals but does not specify UL94 flammability rating or IP20 ingress protection rating. Use this substitute only when panel cutout enlargement and termination method conversion are feasible.

Frequently Asked Questions (FAQ)

Q: Can the SCHURTER 6162.0061 be used as a direct replacement for the 6162.0062 without any modifications?

A: Yes. The 6162.0061 maintains identical specifications across all critical parameters: connector style, electrical ratings, mounting configuration, termination method, panel cutout dimensions, and regulatory approvals. No panel modifications or wiring interface changes are required.

Q: What are the key differences between the SCHURTER 6162.0061 and Qualtek 703W-00/05?

A: The primary differences are termination method (screw vs. quick connect) and panel cutout dimensions (27.30mm x 19.30mm vs. 30.40mm x 22.40mm). Both maintain identical IEC 320-C14 connector style and 10A/250VAC electrical ratings. The Qualtek part requires panel modification and wiring interface conversion.

Q: Why is the Qualtek 703W-00/05 listed as a similar substitute rather than a direct substitute?

A: The Qualtek part introduces two parameter variations: quick connect termination instead of screw termination, and larger panel cutout dimensions. These differences require engineering assessment for specific applications and may necessitate panel redesign or wiring harness modification.

Q: Are all substitute parts ROHS3 compliant?

A: Yes. Both the SCHURTER 6162.0061 and Qualtek 703W-00/05 are ROHS3 compliant, matching the compliance status of the original 6162.0062.

Q: What regulatory approvals should I verify when selecting a substitute?

A: The original part carries cCSAus, ENEC, and UL approvals. The SCHURTER 6162.0061 maintains these identical approvals. The Qualtek 703W-00/05 carries CCC, CSA, UL, and VDE approvals. Verify that the selected substitute meets your specific regional regulatory requirements.

Q: Can the Qualtek 703W-00/05 be used in existing equipment designed for the SCHURTER 6162.0062?

A: Not without modifications. The different termination method and panel cutout dimensions require panel redesign and wiring interface conversion. This substitute is suitable only for new designs or retrofit applications where such modifications are acceptable.
