TE Connectivity AMP Connectors 6-160433-5 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 6-160433-5 is a 0.187" (4.75mm) Quick Connect Female Crimp Connector designed for 15-20 AWG wire gauges. This non-insulated Faston terminal operates as a free-hanging in-line connector with phosphor bronze contact material and tin finish. The part is classified as obsolete, necessitating identification of active equivalent alternatives to maintain supply chain continuity and ensure design compatibility in applications requiring this connector specification.

Key Parameters

Parameter	Value
Tab Width	0.187" (4.75mm)
Tab Thickness	0.020" (0.51mm)
Tab Length	0.248" (6.30mm)
Wire Gauge	15-20 AWG
Termination Type	Crimp
Gender	Female
Insulation	Non-Insulated
Mounting Type	Free Hanging (In-Line)
Insulation Diameter	0.091" ~ 0.130" (2.31mm ~ 3.30mm)
Overall Length	0.591" (15.00mm)

Substitute Part Grouping Explanation

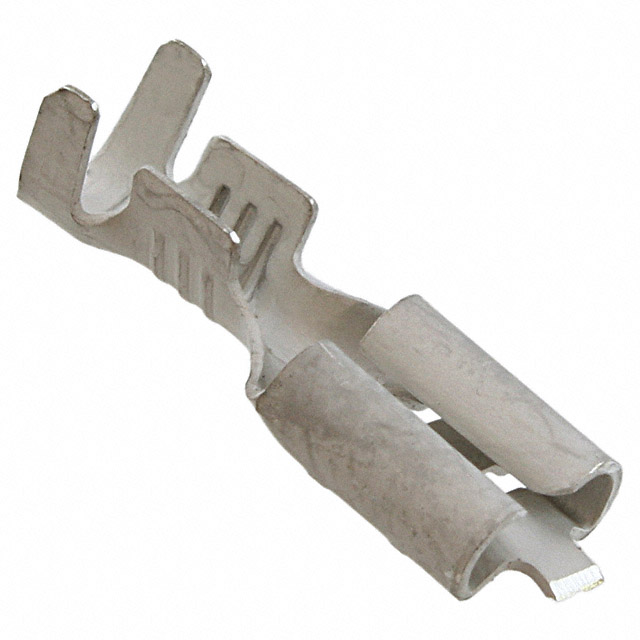

Substitution of the 6-160433-5 is determined by strict equivalence across the following critical parameters: tab width (0.187"), tab thickness (0.020"), tab length (0.248"), wire gauge range (15-20 AWG), termination method (crimp), gender (female), insulation status (non-insulated), mounting configuration (free hanging in-line), and insulation diameter tolerance (0.091" ~ 0.130"). The substitute part 5-160433-6 maintains identical dimensional and electrical specifications across all these parameters, ensuring mechanical and electrical compatibility. Contact material composition and finish may vary between equivalent parts while maintaining functional performance within the Faston series connector family.

Parameter Comparison

Parameter	6-160433-5 (Main Part)	5-160433-6 (Substitute)	Match Status
Tab Width	0.187" (4.75mm)	0.187" (4.75mm)	Identical
Tab Thickness	0.020" (0.51mm)	0.020" (0.51mm)	Identical
Tab Length	0.248" (6.30mm)	0.248" (6.30mm)	Identical
Wire Gauge	15-20 AWG	15-20 AWG	Identical
Termination	Crimp	Crimp	Identical
Gender	Female	Female	Identical
Insulation	Non-Insulated	Non-Insulated	Identical
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Identical
Insulation Diameter	0.091" ~ 0.130" (2.31mm ~ 3.30mm)	0.091" ~ 0.130" (2.31mm ~ 3.30mm)	Identical
Overall Length	0.591" (15.00mm)	0.591" (15.00mm)	Identical
Contact Material	Phosphor Bronze	Brass	Different
Contact Finish	Tin	Tin	Identical
Product Status	Obsolete	Active	Different
RoHS Status	RoHS Compliant	ROHS3 Compliant	Both Compliant

Engineering Selection Recommendations

The 5-160433-6 serves as the direct functional equivalent to the obsolete 6-160433-5. Both connectors share identical mechanical dimensions, electrical specifications, and operational parameters within the Faston quick-connect terminal series. The 5-160433-6 is classified as active product status, ensuring ongoing availability and supply chain support. Both parts maintain RoHS compliance and carry identical ECCN and HTSUS classifications, confirming regulatory equivalence. The contact material difference (phosphor bronze versus brass) does not affect substitution eligibility, as both materials provide equivalent electrical conductivity and tin finish performance for the specified 15-20 AWG wire gauge application. The 5-160433-6 is supplied in cut tape packaging format, supporting both production and component-level procurement workflows.

Frequently Asked Questions (FAQ)

Q: Can the 5-160433-6 directly replace the 6-160433-5 in existing designs?

A: Yes. The 5-160433-6 maintains identical tab width, thickness, length, wire gauge range, termination method, and mounting configuration. All mechanical and electrical parameters required for connector mating and wire termination are equivalent.

Q: What is the significance of the contact material difference between these parts?

A: The 6-160433-5 uses phosphor bronze while the 5-160433-6 uses brass. Both materials, when finished with tin plating, provide equivalent electrical conductivity and corrosion resistance for 15-20 AWG crimp applications. This material variation does not affect functional compatibility.

Q: Why is the 6-160433-5 listed as obsolete?

A: Obsolete status indicates the part is no longer in active production. The 5-160433-6 represents the current active equivalent, ensuring continued availability and manufacturing support.

Q: Are there packaging differences between these parts?

A: The 6-160433-5 packaging is unspecified in available documentation. The 5-160433-6 is supplied in cut tape (CT) format, which is standard for component-level distribution and automated assembly processes.

Q: Do both parts meet current regulatory requirements?

A: Yes. Both the 6-160433-5 and 5-160433-6 are RoHS compliant and carry identical ECCN (EAR99) and HTSUS (8536.90.4000) classifications, confirming regulatory equivalence for international trade and environmental compliance.

Q: What wire gauge range is supported by these connectors?

A: Both connectors support 15-20 AWG wire gauges with an insulation diameter tolerance of 0.091" to 0.130" (2.31mm to 3.30mm).
