TE Connectivity AMP Connectors 61119-3 Equivalent & Substitute Parts
Part Overview

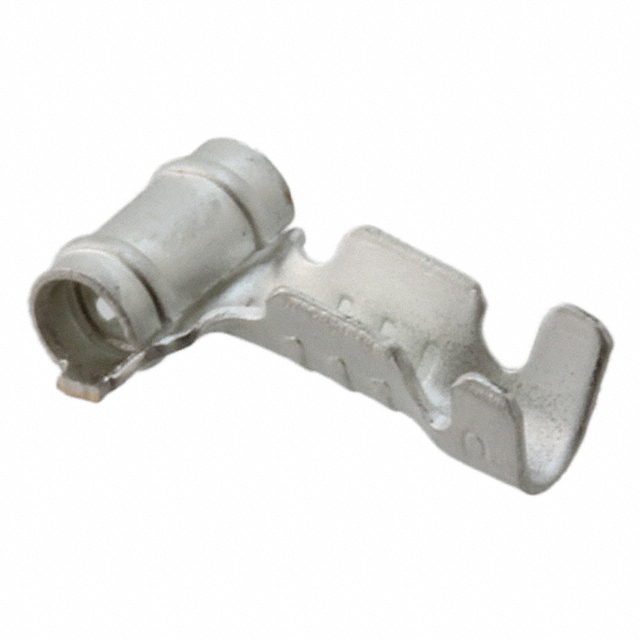

The TE Connectivity AMP Connectors 61119-3 is a terminal connector female receptacle socket with flag termination, designed for 20-24 AWG wire gauges. This component is classified as obsolete, necessitating identification of active equivalent parts to maintain supply chain continuity and ensure design compatibility in applications requiring this terminal type.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Manufacturer | TE Connectivity AMP Connectors |
| Category | Terminals |
| Terminal Type | Female, Receptacle (Socket), Flag |
| Wire Gauge | 20-24 AWG |
| Diameter - Barrel | 0.058" (1.47mm) |
| Length - Barrel | 0.168" (4.27mm) |
| Insulation Diameter | 0.045" ~ 0.070" (1.14mm ~ 1.78mm) |
| Termination | Crimp |
| Insulation | Non-Insulated |
| Contact Finish | Tin |
| Packaging | Cut Tape (CT) |
Substitute Part Grouping Explanation
Substitution of the obsolete 61119-3 with active equivalent parts is determined by strict adherence to the following electrical and mechanical parameters:
Critical Matching Parameters:
- Terminal type classification (Female, Receptacle, Socket, Flag)
- Wire gauge range (20-24 AWG)
- Barrel diameter (0.058" / 1.47mm)
- Barrel length (0.168" / 4.27mm)
- Insulation diameter range (0.045" ~ 0.070" / 1.14mm ~ 1.78mm)
- Termination method (Crimp)
- Contact finish (Tin)
- Insulation classification (Non-Insulated)
- Packaging format (Cut Tape)
The substitute part 61119-2 maintains all critical electrical and mechanical parameters required for direct substitution. The primary distinction between these parts is the contact material composition and product status classification.
Parameter Comparison
| Parameter | 61119-3 (Main Part) | 61119-2 (Substitute) |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active |
| Terminal Type | Female, Receptacle (Socket), Flag | Female, Receptacle (Socket), Flag |
| Wire Gauge | 20-24 AWG | 20-24 AWG |
| Diameter - Barrel | 0.058" (1.47mm) | 0.058" (1.47mm) |
| Length - Barrel | 0.168" (4.27mm) | 0.168" (4.27mm) |
| Insulation Diameter | 0.045" ~ 0.070" (1.14mm ~ 1.78mm) | 0.045" ~ 0.070" (1.14mm ~ 1.78mm) |
| Termination | Crimp | Crimp |
| Insulation | Non-Insulated | Non-Insulated |
| Contact Material | Beryllium Copper | Phosphor Bronze |
| Contact Finish | Tin | Tin |
| Packaging | Cut Tape (CT) | Cut Tape (CT) |
| RoHS Status | RoHS Compliant | ROHS3 Compliant |
| MSL Rating | 1 (Unlimited) | 1 (Unlimited) |
| ECCN | EAR99 | EAR99 |
| HTSUS Code | 8536.90.4000 | 8536.90.4000 |
Engineering Selection Recommendations
The 61119-2 serves as the manufacturer-recommended substitute for the obsolete 61119-3. Both parts maintain identical electrical and mechanical specifications across all critical parameters including terminal configuration, wire gauge compatibility, barrel dimensions, and insulation diameter tolerances.
The 61119-2 is classified as an active product with current manufacturing status and enhanced compliance certification (ROHS3 Compliant versus RoHS Compliant). The contact material differs between the two parts (Phosphor Bronze in 61119-2 versus Beryllium Copper in 61119-3); however, both materials provide equivalent electrical performance characteristics within the specified application parameters.
Selection of the 61119-2 is supported by its active product status, current inventory availability (18,641 pieces in stock), and compliance with current regulatory standards. The part maintains full compatibility with existing connector systems designed for the 61119-3 specification.
Frequently Asked Questions (FAQ)
Q: Can the 61119-2 be used as a direct replacement for the 61119-3?
A: Yes. The 61119-2 maintains all critical electrical and mechanical parameters required for direct substitution, including terminal type, wire gauge range, barrel diameter and length, insulation diameter, termination method, and contact finish specifications.
Q: What is the primary difference between these two parts?
A: The contact material composition differs: the 61119-3 uses Beryllium Copper while the 61119-2 uses Phosphor Bronze. Both materials provide equivalent electrical performance within the specified application parameters. The 61119-2 also carries enhanced RoHS3 compliance certification.
Q: Are there any compatibility concerns when substituting the 61119-2 for the 61119-3?
A: No compatibility concerns exist. Both parts are manufactured by TE Connectivity AMP Connectors and share identical specifications for terminal configuration, wire gauge compatibility (20-24 AWG), barrel dimensions (0.058" diameter, 0.168" length), and insulation diameter range (0.045" ~ 0.070").
Q: Why is the 61119-3 classified as obsolete?
A: The 61119-3 has been superseded by the 61119-2 in the manufacturer's active product line. The 61119-2 provides equivalent functionality with current manufacturing support and enhanced compliance certifications.
Q: What packaging format is available for the 61119-2?
A: The 61119-2 is supplied in Cut Tape (CT) packaging, identical to the original 61119-3 specification.
Q: Are moisture sensitivity levels equivalent between these parts?
A: Yes. Both the 61119-3 and 61119-2 carry an MSL rating of 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling.
Q: What is the current inventory status for the 61119-2?
A: The 61119-2 has 18,641 pieces in stock as new original inventory, providing adequate supply for production requirements.
