Amphenol ICC 61083-064022 Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 61083-064022 is a 60-position rectangular connector plug with center strip contacts designed for surface mount applications. This BergStak® 0.80mm series connector features gold-plated contacts and is classified as an active product. Substitute parts are identified to provide alternative sourcing options when the primary part is unavailable or when inventory requirements necessitate qualified alternatives that meet identical electrical and mechanical specifications.

Substiute Parts

61083-064022

Amphenol ICC (FCI)In Stock: 104761083-064022 Datasheet

Current PartRFQ

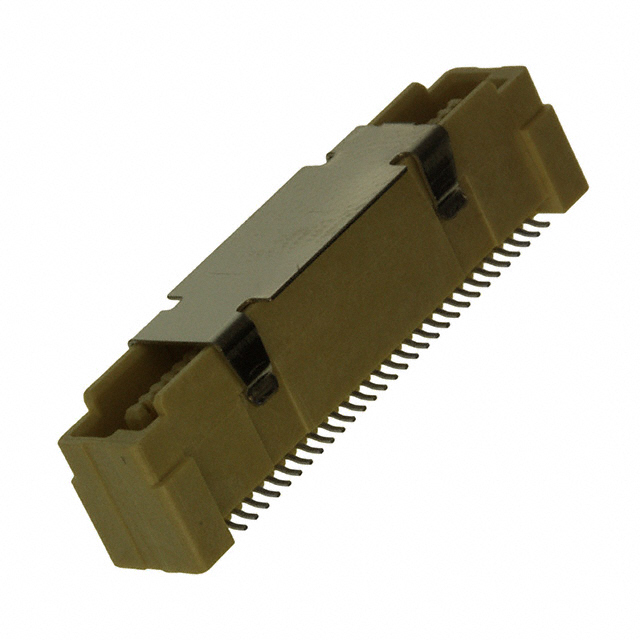

3-5177986-2

TE Connectivity AMP ConnectorsIn Stock: 22213-5177986-2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 61083-064022 are qualified based on the following critical parameters that determine functional and mechanical compatibility:

• Connector Type: Plug with center strip contacts
• Position Count: 60 positions
• Pitch: 0.031" (0.80mm)
• Row Configuration: 2 rows
• Mounting Technology: Surface mount
• Contact Material: Gold plating at 8.00µin thickness
• Mated Stacking Heights: Support for 8mm, 12mm, and 16mm configurations
• Height Above Board: Within acceptable tolerance range for PCB assembly

The TE Connectivity AMP Connectors part 3-5177986-2 meets all critical electrical and mechanical parameters required for direct substitution. Both parts share identical position count, pitch, row configuration, contact finish specification, and core mounting characteristics.

Parameter Comparison

Engineering Selection Recommendations

Both parts are classified as active products with identical electrical and mechanical specifications for the core connector interface. The TE Connectivity 3-5177986-2 offers ROHS3 compliance, whereas the Amphenol ICC 61083-064022 is RoHS non-compliant. Selection between these parts should be based on regulatory requirements applicable to the end application. The TE Connectivity part supports an additional 20mm mated stacking height option and exhibits a marginally increased height above board (0.309" versus 0.303"), which may be relevant for applications with strict PCB clearance constraints. Both parts maintain identical MSL rating and REACH status.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 3-5177986-2 be used as a direct replacement for the Amphenol ICC 61083-064022?

A: Yes, the TE Connectivity part qualifies as a direct substitute based on matching connector type, position count, pitch, row configuration, mounting technology, contact finish specification, and core mated stacking heights. The height above board difference of 0.006" (0.15mm) is within typical PCB assembly tolerances for surface mount applications.

Q: What is the significance of the additional 20mm mated stacking height supported by the TE Connectivity part?

A: The TE Connectivity 3-5177986-2 supports mated stacking heights of 8mm, 12mm, 16mm, and 20mm, compared to 8mm, 12mm, and 16mm for the Amphenol part. This provides additional flexibility for applications requiring the 20mm stacking configuration. Applications limited to 8mm, 12mm, or 16mm stacking heights are unaffected by this difference.

Q: How do the RoHS compliance statuses affect part selection?

A: The Amphenol ICC 61083-064022 is RoHS non-compliant, while the TE Connectivity 3-5177986-2 is ROHS3 compliant. Applications subject to RoHS regulations or customer requirements mandating RoHS compliance must use the TE Connectivity part. Applications without such regulatory constraints may use either part based on availability and inventory considerations.

Q: Are there packaging differences between these parts?

A: The Amphenol ICC part is supplied in Tape & Reel (TR) packaging, while the TE Connectivity part is supplied in Cut Tape (CT) packaging. Packaging format may influence procurement logistics and handling procedures but does not affect electrical or mechanical compatibility.

Q: What is the significance of the Board Guide feature listed for the TE Connectivity part?

A: The Board Guide feature is a mechanical design element specific to the TE Connectivity part. This feature does not affect electrical compatibility or core connector function and is provided as a design enhancement for assembly guidance.
