EAO 61-0049.0 LED Panel Indicator - Equivalent & Substitute Parts

Part Overview

The EAO 61-0049.0 is an LED panel indicator actuator with a 24mm round lens and solder lug termination, designed for panel-mount applications requiring IP65 ingress protection. This component is classified as Active product status and is ROHS3 compliant. Substitute parts are identified based on matching mechanical and electrical specifications that maintain functional equivalence in panel indicator applications.

Substiute Parts

61-0049.0

EAOIn Stock: 75161-0049.0 Datasheet

Current PartRFQ

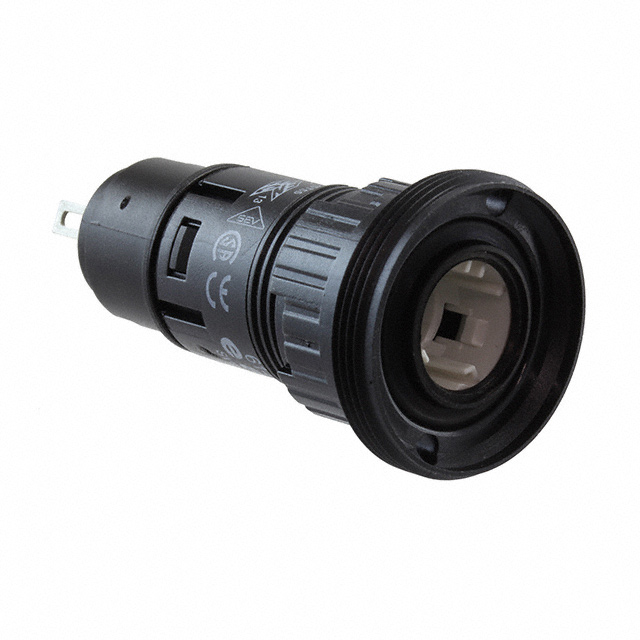

61-0040.02

EAOIn Stock: 103161-0040.02 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the EAO 61-0049.0 is determined by the following critical parameters:

• Panel cutout shape and dimensions (Round, 0.64" / 16.20mm)
• Lens size and style (24.00mm diameter, round with flat top)
• Termination method (solder lug)
• Ingress protection rating (IP65)
• Compliance certifications (ROHS3, REACH Unaffected)

Parts matching all these parameters are classified as parametric equivalents and may be substituted in applications where the 61-0049.0 is specified.

Parameter Comparison

Engineering Selection Recommendations

The EAO 61-0040.02 is a direct parametric equivalent to the 61-0049.0. Both components share identical mechanical specifications, termination methods, and environmental protection ratings. Both parts maintain Active product status and comply with ROHS3 and REACH requirements. Selection between these parts may be based on inventory availability and lead time considerations, as both are functionally interchangeable for panel indicator applications.

Frequently Asked Questions (FAQ)

Q: Can the 61-0040.02 be used as a direct replacement for the 61-0049.0?

A: Yes. Both parts share identical panel cutout dimensions (0.64" / 16.20mm), lens specifications (24.00mm round with flat top), termination style (solder lug), and ingress protection rating (IP65). They are parametric equivalents within the EAO Series 61 LED indicator family.

Q: Are there any compliance differences between these parts?

A: No. Both the 61-0049.0 and 61-0040.02 are ROHS3 compliant and REACH unaffected, with identical regulatory classifications (ECCN: EAR99, HTSUS: 8541.41.0000).

Q: What determines substitution eligibility for EAO Series 61 LED indicators?

A: Substitution is determined by matching panel cutout shape and dimensions, lens size and style, termination method, and ingress protection rating. Parts meeting all these criteria are considered parametric equivalents.

Q: Does packaging affect substitution compatibility?

A: Packaging format (Bulk) does not affect functional compatibility. Component selection should be based on mechanical and electrical parameters that determine panel mounting and circuit integration.
