Dialight 6092222340F LED Panel Indicator - Equivalent & Substitute Parts

Part Overview

The Dialight 6092222340F is an LED panel indicator designed for 24V DC applications with green illumination and IP66/NEMA 4X ingress protection. This component is classified as Active product status and is fully RoHS3 compliant. Alternative equivalent parts may be required due to inventory constraints, supply chain considerations, or specific procurement requirements while maintaining identical electrical and mechanical performance characteristics.

Substiute Parts

6092222340F

DialightIn Stock: 7766092222340F Datasheet

Current PartRFQ

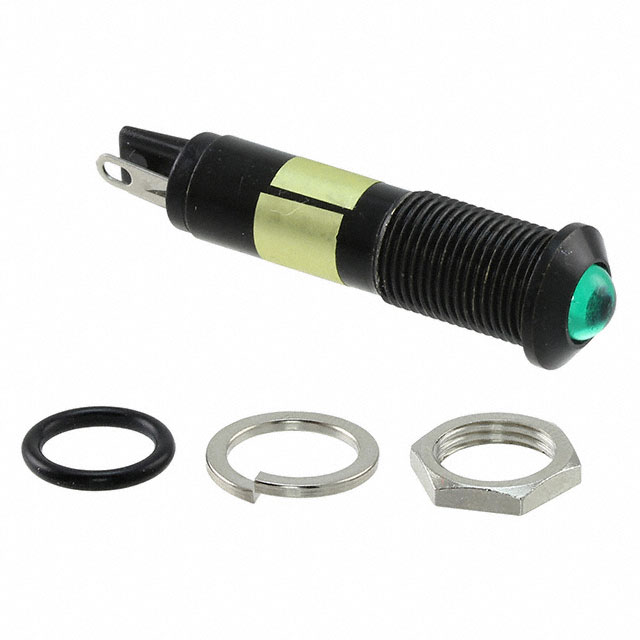

6091222340F

DialightIn Stock: 11406091222340F Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Dialight 6092222340F is based on strict equivalence across all critical electrical and mechanical parameters. The substitute part must maintain identical specifications in the following categories:

Electrical Parameters: Voltage rating (24V DC), current consumption (15mA), and millicandela output (110mcd) must be identical to ensure proper circuit integration and brightness consistency.

Mechanical Parameters: Panel cutout shape (Round), cutout dimensions (0.38"/9.65mm), lens size (6.00mm Dia), and lens style (Round with Domed Top) must match exactly to ensure physical compatibility with existing panel installations.

Environmental & Compliance Parameters: Ingress protection rating (IP66, NEMA 4X), RoHS3 compliance, and REACH status must be maintained to preserve environmental sealing and regulatory compliance.

The substitute part 6091222340F meets all these criteria and is therefore classified as a parametric equivalent.

Parameter Comparison

Engineering Selection Recommendations

Both the Dialight 6092222340F and 6091222340F are Active status products with full RoHS3 compliance and REACH unaffected status, meeting current regulatory requirements for industrial and commercial applications. Selection between these parts should be based on inventory availability and procurement lead times, as all electrical, mechanical, and compliance parameters are identical. Both components are suitable for direct substitution in 24V DC panel indicator applications requiring IP66/NEMA 4X environmental sealing.

Frequently Asked Questions (FAQ)

Q: Can the 6091222340F be used as a direct replacement for the 6092222340F?

A: Yes. Both parts are parametric equivalents with identical electrical ratings (24V DC, 15mA), mechanical dimensions (9.65mm round cutout, 6.00mm lens), brightness output (110mcd), and environmental protection (IP66, NEMA 4X). No circuit modifications or panel alterations are required.

Q: Are there any differences in compliance or certifications between these parts?

A: No. Both parts carry identical RoHS3 compliance status and REACH unaffected designation. Moisture sensitivity level is 1 (Unlimited) for both components.

Q: What determines whether a part can substitute for the 6092222340F?

A: Substitution requires exact matching across voltage (24V DC), current (15mA), lamp color (Green), panel cutout dimensions (0.38"/9.65mm), lens specifications (6.00mm Dia, Round with Domed Top), brightness (110mcd), and ingress protection rating (IP66, NEMA 4X).

Q: Are both parts available in the same packaging format?

A: Yes. Both the 6092222340F and 6091222340F are supplied in Bulk packaging.

Q: Can these parts be used interchangeably in existing installations?

A: Yes. Identical mechanical dimensions and electrical characteristics ensure direct interchangeability without requiring any modifications to panel cutouts, wiring, or circuit design.
