LED Panel Indicator 6091MX7-24V Equivalent & Substitute Parts

Part Overview

The 6091MX7-24V is a solid-state LED panel indicator manufactured by Visual Communications Company (VCC). This component is a yellow LED indicator designed for 24V panel-mount applications with wire lead termination. The part is classified as obsolete, making identification of equivalent and substitute components essential for ongoing system maintenance and new design implementations.

The 6091MX7-24V serves as a visual status indicator in industrial control panels, instrumentation, and electrical equipment. Its obsolete status necessitates the identification of functionally equivalent alternatives that maintain compatibility with existing panel cutout specifications and electrical requirements.

Substiute Parts

6091MX7-24V

Visual Communications Company - VCCIn Stock: 10936091MX7-24V Datasheet

Current PartRFQ

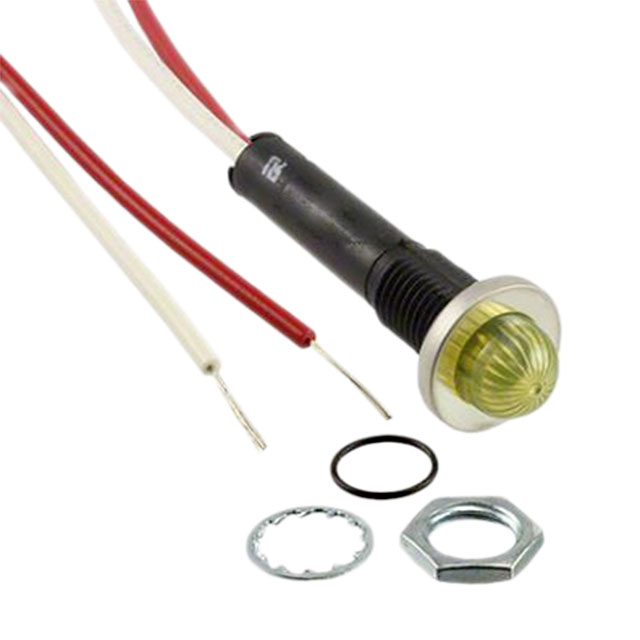

6091M7-24V

Visual Communications Company - VCCIn Stock: 11706091M7-24V Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 6091MX7-24V is determined by strict equivalence across the following critical parameters:

Electrical Compatibility:

• Voltage rating: 24V
• LED type and color: Yellow

Mechanical Compatibility:

• Panel cutout shape: Round
• Panel cutout dimensions: 0.38" (9.65mm)
• Lens size: 9.90mm Dia
• Lens style: Round with Domed Top
• Termination style: Wire Leads - 4.6" (116.84mm)

Environmental & Regulatory Compliance:

• Ingress Protection: NEMA 13
• Oil Resistant feature
• RoHS3 Compliance
• Moisture Sensitivity Level: 1

The substitute part 6091M7-24V maintains identical specifications across all critical parameters, ensuring direct functional and mechanical interchangeability within existing panel assemblies and electrical circuits.

Parameter Comparison

Engineering Selection Recommendations

The 6091M7-24V is the direct equivalent substitute for the obsolete 6091MX7-24V. Both components are manufactured by VCC within the 6091M series and maintain identical electrical, mechanical, and environmental specifications.

Selection Basis:

The 6091M7-24V is classified as Active product status, ensuring continued availability and supply chain reliability. This contrasts with the 6091MX7-24V, which is obsolete and subject to inventory depletion.

Both parts maintain ROHS3 compliance and NEMA 13 ingress protection, satisfying regulatory and environmental requirements for industrial panel applications. The oil-resistant feature is preserved in the substitute, maintaining compatibility with equipment operating in harsh industrial environments.

The only difference between the two components is packaging format (bulk versus bag). This distinction does not affect electrical performance, mechanical fit, or functional operation within panel assemblies.

Frequently Asked Questions (FAQ)

Q: Can the 6091M7-24V be used as a direct replacement for the 6091MX7-24V in existing panel assemblies?

A: Yes. The 6091M7-24V is electrically and mechanically identical to the 6091MX7-24V. Panel cutout dimensions, lens specifications, wire lead length, voltage rating, and color are identical. Direct substitution requires no panel modification or circuit redesign.

Q: What is the difference between the 6091MX7-24V and 6091M7-24V?

A: The primary difference is product status and packaging. The 6091MX7-24V is obsolete, while the 6091M7-24V is active. The 6091MX7-24V is supplied in bulk packaging, while the 6091M7-24V is supplied in bag packaging. All electrical and mechanical specifications are identical.

Q: Are both parts ROHS3 compliant?

A: Yes. Both the 6091MX7-24V and 6091M7-24V are ROHS3 compliant and suitable for applications requiring regulatory compliance with hazardous substance restrictions.

Q: What is the NEMA 13 ingress protection rating?

A: NEMA 13 provides protection against dust, oil, and coolant spray. Both components maintain this rating, making them suitable for industrial control panel environments.

Q: Does the wire lead length affect substitution compatibility?

A: No. Both components feature identical wire lead length of 4.6" (116.84mm). This specification is maintained in the substitute part, ensuring compatibility with existing wiring and terminal connections.

Q: Is the oil-resistant feature present in the substitute part?

A: Yes. The 6091M7-24V retains the oil-resistant feature of the original 6091MX7-24V, maintaining performance in environments with oil exposure.

Q: What is the Moisture Sensitivity Level (MSL) for these components?

A: Both components have MSL 1 (Unlimited), indicating no moisture sensitivity restrictions during storage or handling.
