TE Connectivity AMP Connectors 60888-3 Equivalent & Substitute Parts

Part Overview

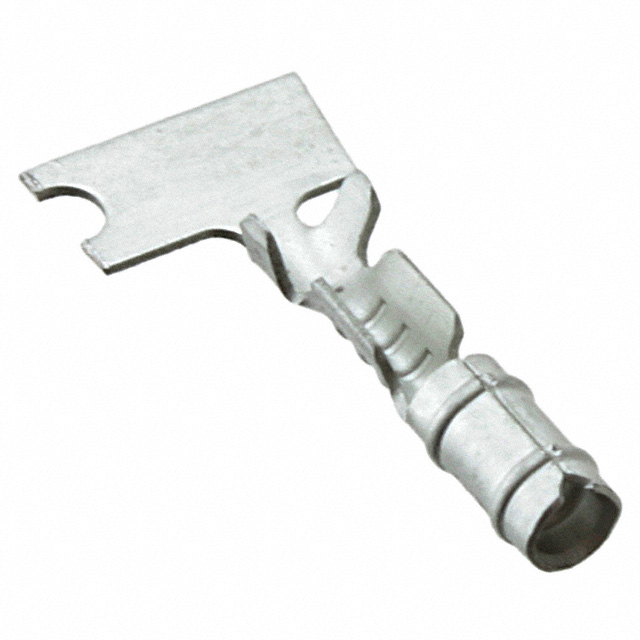

The TE Connectivity AMP Connectors 60888-3 is a terminal connector receptacle (socket) designed for 22-26 AWG wire gauges with crimp termination. This component is classified as Obsolete, indicating that the original manufacturer has discontinued production. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production or repair requirements for systems utilizing this terminal connector.

Substiute Parts

60888-3

TE Connectivity AMP ConnectorsIn Stock: 2790660888-3 Datasheet

Current PartRFQ

60804-2

TE Connectivity AMP ConnectorsIn Stock: 112060804-2 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 60888-3 terminal connector is based on strict alignment of the following critical parameters:

Mechanical Compatibility Parameters:

• Terminal Type: Female, Receptacle (Socket)
• Wire Gauge: 22-26 AWG
• Diameter - Barrel: 0.058" (1.47mm)
• Length - Overall: 0.380" (9.65mm)
• Length - Barrel: 0.155" (3.94mm)
• Insulation Diameter: 0.035" ~ 0.065" (0.89mm ~ 1.65mm)

Electrical & Material Parameters:

• Termination Method: Crimp
• Insulation Type: Non-Insulated
• Contact Finish: Tin

Compliance Parameters:

• RoHS Status: Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

The substitute part 60804-2 maintains all critical mechanical dimensions and electrical characteristics required for direct functional replacement. The primary difference is the contact material composition and packaging format, which do not affect electrical or mechanical compatibility in the application context.

Parameter Comparison

Engineering Selection Recommendations

The 60804-2 terminal connector is the manufacturer-recommended substitute for the obsolete 60888-3. Selection of this substitute part is based on the following engineering criteria:

Product Status Alignment: The 60804-2 maintains Active product status, ensuring ongoing availability and manufacturer support. The 60888-3 is classified as Obsolete, making the 60804-2 the appropriate choice for new designs and continued production support.

Compliance Certification: Both parts maintain RoHS compliance and identical Moisture Sensitivity Level (MSL) ratings of 1 (Unlimited), confirming suitability for equivalent environmental and regulatory requirements.

Mechanical and Electrical Equivalence: All critical dimensions, wire gauge specifications, termination methods, and contact finish specifications are identical between the two parts. The contact material differs (Beryllium Copper versus Phosphor Bronze), but both materials are suitable for tin-plated receptacle applications within the specified wire gauge range.

Packaging Consideration: The substitute part is supplied in Tape & Reel (TR) packaging, whereas the original part was supplied in Cut Tape (CT) format. This packaging difference does not affect component functionality or compatibility but may require adjustment to procurement and assembly processes.

Frequently Asked Questions (FAQ)

Q: Can the 60804-2 be used as a direct replacement for the 60888-3 in existing assemblies?

A: Yes. The 60804-2 maintains identical mechanical dimensions, wire gauge specifications, barrel diameter, overall length, and barrel length. All termination and insulation specifications are identical, confirming direct functional compatibility.

Q: What is the significance of the contact material difference between Beryllium Copper and Phosphor Bronze?

A: Both materials are suitable for tin-plated receptacle terminals in the 22-26 AWG wire gauge range. The contact material composition does not affect the electrical or mechanical compatibility of the terminal connector in this application context.

Q: Why is the 60804-2 supplied in Tape & Reel packaging instead of Cut Tape?

A: Tape & Reel (TR) packaging is the standard supply format for active production components. This format is optimized for automated assembly processes and high-volume production environments. Cut Tape (CT) packaging is typically used for legacy or low-volume components.

Q: Are there any compliance or regulatory differences between the two parts?

A: Both parts maintain RoHS compliance and identical Moisture Sensitivity Level ratings. The 60804-2 is the manufacturer-recommended active substitute, confirming regulatory and compliance equivalence.

Q: What should be considered when transitioning from 60888-3 to 60804-2 in production?

A: The primary consideration is packaging format transition from Cut Tape to Tape & Reel. Assembly equipment and procurement processes may require adjustment to accommodate the new packaging format. All electrical and mechanical specifications remain identical, requiring no design or assembly procedure modifications.

Q: Is the 60804-2 available in the same quantities as the 60888-3?

A: Availability differs based on current inventory levels. The 60804-2 is an active product with ongoing manufacturing support, whereas the 60888-3 is obsolete with limited remaining inventory. Procurement should prioritize the 60804-2 for new orders and long-term supply chain planning.
