Keystone Electronics 6083 Banana Plug Stackable Connector - Equivalent & Substitute Parts

Part Overview

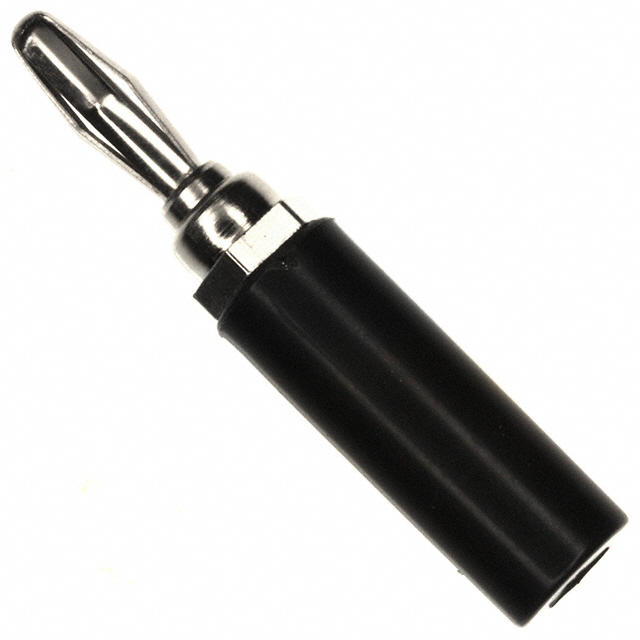

The Keystone Electronics 6083 is a stackable banana plug connector designed for solderless termination applications. This male connector features a standard banana plug diameter and is configured for free-hanging, in-line mounting. The component is actively produced and maintains full compliance with ROHS3 and REACH regulations, making it suitable for contemporary electronic assembly requirements where solderless connection methods are specified.

Substitute parts are identified to provide alternative sourcing options when the primary part becomes unavailable or when design flexibility permits equivalent connector selection based on compatible electrical and mechanical parameters.

Substiute Parts

6083

Keystone ElectronicsIn Stock: 8046083 Datasheet

Current PartRFQ

108-1763-101

Cinch Connectivity SolutionsIn Stock: 3717108-1763-101 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Keystone Electronics 6083 are qualified based on the following critical parameters that determine functional and mechanical compatibility:

• Connector Type & Gender: Male banana plug configuration
• Plug Diameter: Standard banana plug interface
• Mounting Configuration: Free hanging, in-line orientation
• Insulation Design: Non-mating end insulation
• Color Specification: Black housing
• Wire Gauge Compatibility: Acceptance of 0.150" (3.81mm) diameter wire or equivalent AWG rating
• Regulatory Compliance: ROHS3 compliance and MSL 1 rating

The Cinch Connectivity Solutions 108-1763-101 qualifies as a substitute based on these parameters. While this part offers dual termination capability (solder or solderless), its solderless termination mode provides functional equivalence to the primary part. The 16 AWG wire gauge specification is compatible with the 0.150" (3.81mm) wire diameter requirement.

Parameter Comparison

Engineering Selection Recommendations

Both the Keystone Electronics 6083 and Cinch Connectivity Solutions 108-1763-101 maintain active product status and full ROHS3 compliance. Selection between these parts should be based on the following considerations:

Keystone 6083 is the primary specification when stackable connector geometry is a design requirement and when REACH unaffected status is mandated by supply chain or regulatory requirements.

Cinch 108-1763-101 serves as a functional substitute when solderless termination compatibility is the primary criterion and when the dual termination capability (solder or solderless) does not conflict with assembly process specifications. This part provides specified operating temperature range documentation (-55°C ~ 85°C) and nickel contact finish, which may be advantageous in applications requiring enhanced corrosion resistance or defined thermal performance boundaries.

Both parts satisfy MSL 1 (unlimited moisture sensitivity) requirements and are suitable for standard storage and handling conditions.

Frequently Asked Questions (FAQ)

Q: Can the Cinch 108-1763-101 be used as a direct replacement for the Keystone 6083 in solderless applications?

A: Yes, when the application requires only solderless termination. The Cinch part's solderless termination mode provides functional equivalence. However, verify that the stackable connector feature of the Keystone 6083 is not a design requirement, as the Cinch part is specified as a standard banana plug rather than stackable.

Q: What is the wire gauge compatibility between these parts?

A: The Keystone 6083 accepts 0.150" (3.81mm) diameter wire. The Cinch 108-1763-101 is rated for 16 AWG wire, which is compatible with this diameter specification.

Q: Are there differences in contact material that affect electrical performance?

A: The Keystone 6083 uses phosphor bronze contacts, while the Cinch 108-1763-101 uses nickel silver contacts with a nickel finish. Both materials are suitable for standard banana plug applications. The nickel finish on the Cinch part may provide enhanced corrosion resistance in certain environmental conditions.

Q: Does REACH compliance status affect part selection?

A: The Keystone 6083 is REACH unaffected, while the Cinch 108-1763-101 is REACH affected. If supply chain documentation requires REACH unaffected status, the Keystone part must be specified. Otherwise, both parts meet regulatory requirements.

Q: What is the difference between stackable and standard banana plug configurations?

A: The Keystone 6083 is designed with stackable geometry, allowing multiple connectors to be connected in series. The Cinch 108-1763-101 is a standard banana plug without this stacking feature. Verify application requirements before substituting.
