LED Panel Indicator 6081132240F Equivalent & Substitute Parts

Part Overview

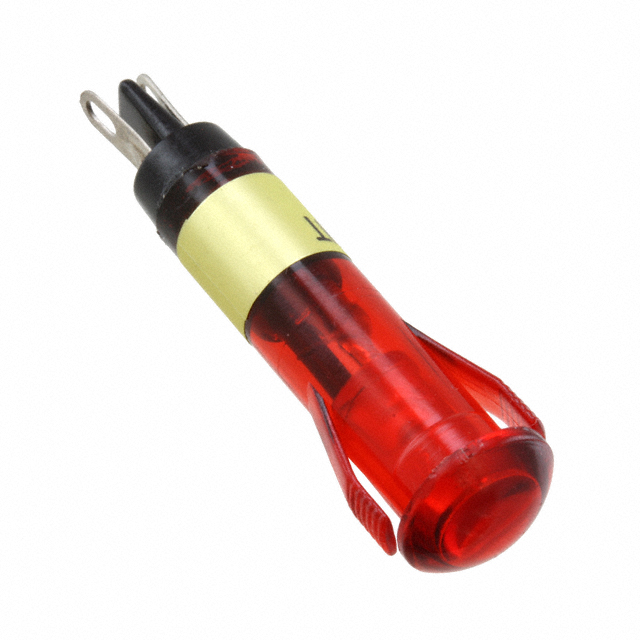

The Dialight 6081132240F is a red LED panel indicator designed for 24V DC applications with 15mA current consumption. This component is classified as obsolete, making identification of suitable substitute parts essential for ongoing system maintenance and new design implementations. The 8mm snap-fit design with round domed lens provides standard visual indication functionality in industrial control panels and equipment.

Substiute Parts

6081132240F

DialightIn Stock: 10886081132240F Datasheet

Current PartRFQ

6091112140F

DialightIn Stock: 8776091112140F Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete 6081132240F is determined by the following critical parameters:

Electrical Compatibility:

• Voltage rating: 24V DC
• Current consumption: 15mA
• Lamp color: Red
• Brightness: 60mcd

Mechanical Compatibility:

• Panel cutout shape: Round
• Lens style: Round with domed top
• Mounting method: Snap-fit or panel mount

Regulatory Compliance:

• RoHS3 compliance required
• REACH unaffected status
• EAR99 classification

The substitute part 6091112140F maintains electrical equivalence through identical voltage, current, color, and brightness specifications. Mechanical compatibility is preserved through round panel mounting and domed lens design. Both parts meet the same regulatory requirements, ensuring direct substitution capability in existing applications.

Parameter Comparison

Engineering Selection Recommendations

The 6091112140F serves as the active production equivalent for the obsolete 6081132240F. Both components share identical electrical specifications (24V DC, 15mA, red color, 60mcd brightness) and maintain the same regulatory compliance profile (ROHS3, REACH unaffected, EAR99).

Panel cutout dimensions differ slightly (0.34" versus 0.37"), requiring verification of panel hole sizing during installation. The substitute part features enhanced ingress protection (IP66, NEMA 4X) compared to the main part, providing additional environmental sealing capability without compromising electrical or optical performance.

The substitute part's active product status ensures ongoing availability and supply chain continuity for new designs and replacement applications.

Frequently Asked Questions (FAQ)

Q: Can the 6091112140F directly replace the 6081132240F in existing installations?

A: Electrical compatibility is confirmed through identical voltage, current, color, and brightness ratings. Panel cutout dimension differences (0.34" versus 0.37") require physical verification. If the panel hole accommodates the larger 9.40mm cutout, direct substitution is feasible.

Q: What are the key differences between these two parts?

A: The primary differences are product status (obsolete versus active), series designation (608 versus 609), panel cutout dimensions (8.64mm versus 9.40mm), lens diameter (9.91mm versus 6.10mm), and ingress protection rating (unspecified versus IP66/NEMA 4X). Electrical and optical performance remain equivalent.

Q: Does the substitute part offer any performance advantages?

A: The 6091112140F includes IP66 and NEMA 4X ingress protection ratings, providing enhanced environmental sealing. Electrical and brightness specifications remain identical to the original part.

Q: Are there packaging differences between these parts?

A: The main part is supplied in bulk packaging, while the substitute is supplied in bag packaging. This affects handling and inventory management but does not impact component performance or compatibility.

Q: Do both parts meet the same regulatory requirements?

A: Yes. Both components are ROHS3 compliant, REACH unaffected, and classified as EAR99 for export control purposes. Compliance certifications are equivalent.
