E-Switch 600SP1S2M3R Equivalent & Substitute Parts

Part Overview

The E-Switch 600SP1S2M3R is an SPDT slide switch rated for 0.4VA at 20V, designed for through-hole mounting applications. This component is currently active in production with 828 units in stock. Equivalent and substitute parts are identified based on matching circuit topology (SPDT), mounting configuration (through-hole PC pin termination), and operational envelope compatibility. Alternative models may be required due to inventory constraints, lead time considerations, or specific application requirements for enhanced electrical ratings or mechanical durability.

Substiute Parts

600SP1S2M3R

E-SwitchIn Stock: 855600SP1S2M3R Datasheet

Current PartRFQ

1101M2S3CBE2

C&KIn Stock: 42081101M2S3CBE2 Datasheet

MFR RecommendedRFQ

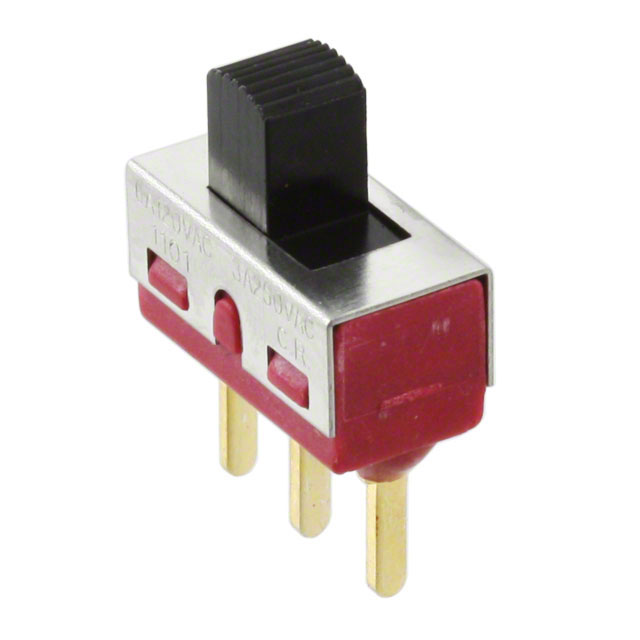

1101M2S3CGE2

C&KIn Stock: 21921101M2S3CGE2 Datasheet

MFR RecommendedRFQ

1101M2S3CQE2

C&KIn Stock: 19541101M2S3CQE2 Datasheet

MFR RecommendedRFQ

8SS1012-Z

Nidec Components CorporationIn Stock: 24478SS1012-Z Datasheet

MFR RecommendedRFQ

CS12ANW03

NKK SwitchesIn Stock: 44543CS12ANW03 Datasheet

MFR RecommendedRFQ

SS12SDP2LC

NKK SwitchesIn Stock: 1368SS12SDP2LC Datasheet

MFR RecommendedRFQ

SS12SDP2LE

NKK SwitchesIn Stock: 946SS12SDP2LE Datasheet

MFR RecommendedRFQ

SS12SDP2LF

NKK SwitchesIn Stock: 908SS12SDP2LF Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 600SP1S2M3R is determined by the following critical parameters:

Primary Compatibility Criteria:

• Circuit configuration must be SPDT
• Switch function must be On-On
• Mounting type must be through-hole with PC pin termination
• Voltage rating must meet or exceed 20V (AC and DC)
• Current rating must support 0.4VA minimum

Secondary Compatibility Factors:

• Contact material and finish (gold or silver acceptable for low-current applications)
• Operating temperature range (minimum -40°C to 80°C preferred)
• RoHS3 compliance required
• Mechanical and electrical life ratings

Substitute parts are grouped into two categories based on electrical performance envelope:

Group 1 - Direct Electrical Equivalents (0.4VA @ 20V):

• 1101M2S3CBE2 (C&K): Matches voltage and current ratings with extended electrical life (100,000 cycles)

Group 2 - Higher-Rated Alternatives (6A @ 120V AC or 3A @ 125V AC):

• 1101M2S3CGE2, 1101M2S3CQE2 (C&K): Elevated current and voltage ratings
• 8SS1012-Z (Nidec): 6A @ 125V AC with non-shorting contact timing
• CS12ANW03 (NKK): 3A @ 125V AC with non-shorting contact timing

Group 3 - Lower-Rated Alternatives (100mA @ 30V DC):

• SS12SDP2LC, SS12SDP2LE, SS12SDP2LF (NKK): Reduced current capacity with illuminated actuator option

Parameter Comparison

Engineering Selection Recommendations

For Direct Replacement (Equivalent Electrical Performance): The 1101M2S3CBE2 from C&K provides electrical equivalence at 0.4VA and 20V ratings. This part offers superior electrical life (100,000 cycles versus 20,000 cycles) while maintaining ROHS3 compliance. Operating temperature range is narrower (-30°C to 65°C versus -40°C to 80°C), requiring verification against application requirements.

For Higher-Reliability Applications: The 1101M2S3CGE2 and 1101M2S3CQE2 (C&K) or 8SS1012-Z (Nidec) are suitable when applications require elevated current and voltage margins. These parts support 6A at 120V AC or 125V AC, providing design headroom for future load increases. The 8SS1012-Z extends operating temperature to 85°C and includes non-shorting contact timing (BBM).

For Space-Constrained or Low-Power Applications: The SS12SDP2LC, SS12SDP2LE, and SS12SDP2LF (NKK) are applicable only when circuit requirements are limited to 100mA at 30V DC. These parts feature illuminated actuators and reduced form factors but operate within narrower temperature and cycle life parameters.

Compliance Verification: All substitute parts maintain ROHS3 compliance and EAR99 export classification, matching the original component's regulatory status. MSL rating of 1 (Unlimited) is consistent across all alternatives.

Frequently Asked Questions (FAQ)

Q: Can the 1101M2S3CBE2 be used as a direct drop-in replacement for the 600SP1S2M3R?

A: The 1101M2S3CBE2 is electrically equivalent at 0.4VA and 20V ratings with identical SPDT on-on configuration and through-hole PC pin termination. Physical dimensions and actuator length differ (5.08mm versus 2.81mm), requiring PCB layout verification. Operating temperature range is reduced to -30°C to 65°C; confirm application does not require the original -40°C lower limit.

Q: What is the difference between the 1101M2S3CGE2 and 1101M2S3CQE2?

A: Both parts are electrically identical at 6A and 120V AC ratings. The primary difference is contact finish: 1101M2S3CGE2 uses gold plating, while 1101M2S3CQE2 uses silver plating. Gold finish provides superior corrosion resistance in humid environments; silver finish is acceptable for standard industrial applications.

Q: Why are the SS12SDP2 series parts listed as substitutes if they only support 100mA?

A: The SS12SDP2 series (SS12SDP2LC, SS12SDP2LE, SS12SDP2LF) are included because they appear in the original part's substitute list. These parts are suitable only for applications where circuit current is limited to 100mA at 30V DC. They are not recommended for applications requiring the full 0.4VA capacity of the 600SP1S2M3R.

Q: Does the 8SS1012-Z support both AC and DC ratings?

A: The 8SS1012-Z is rated for 6A AC at 125V and 4A DC at 30V. These are separate ratings; the part cannot simultaneously handle 6A AC and 4A DC. Application voltage and current type must be verified before selection.

Q: Are all substitute parts available in the same packaging as the 600SP1S2M3R?

A: The 600SP1S2M3R is supplied in bulk packaging. Most substitutes (1101M2S3CBE2, 1101M2S3CGE2, 1101M2S3CQE2, 8SS1012-Z, SS12SDP2LC, SS12SDP2LE, SS12SDP2LF) are available in bulk. The CS12ANW03 is supplied in tray packaging; confirm packaging compatibility with assembly processes.

Q: What is the significance of "non-shorting (BBM)" contact timing on the 8SS1012-Z and CS12ANW03?

A: Non-shorting (break-before-make) contact timing ensures the moving contact breaks connection with the previous position before establishing connection with the new position. This prevents momentary short circuits during switching. The original 600SP1S2M3R does not specify contact timing; application requirements determine whether BBM operation is necessary.

Q: Can I use a higher-rated substitute part in a circuit designed for 0.4VA at 20V?

A: Yes. Higher-rated parts (6A at 120V AC) are backward-compatible with lower-power circuits. The switch will operate correctly at reduced load levels. Verify mechanical fit, actuator length, and operating temperature range compatibility with the application.
