E-Switch 600DP1S2M4Q Equivalent & Substitute Parts

Part Overview

The E-Switch 600DP1S2M4Q is a slide switch with DPDT (Double Pole Double Throw) configuration, rated for 1A DC at 30V. This through-hole mounted component features IP67 dust-tight and waterproof protection, making it suitable for applications requiring environmental sealing. The part is currently active in production with 1171 units in stock. Alternative components may be required due to design specification changes, supply chain considerations, or performance requirement modifications.

Substiute Parts

600DP1S2M4Q

E-SwitchIn Stock: 1271600DP1S2M4Q Datasheet

Current PartRFQ

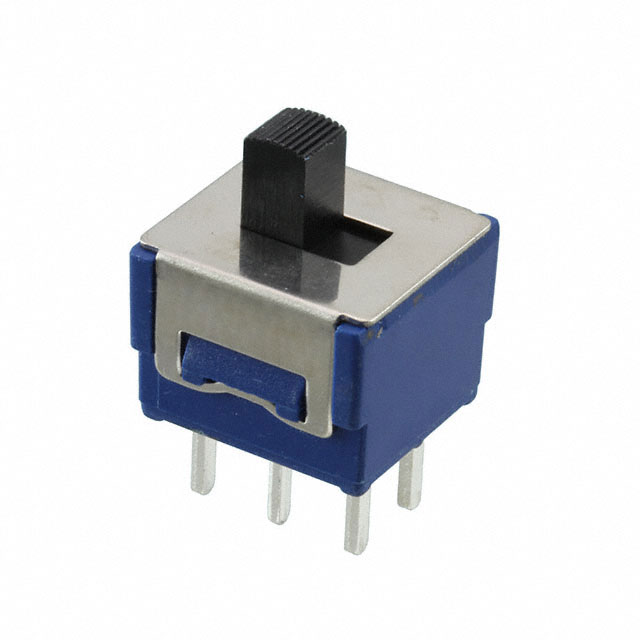

8SS2012-Z

Nidec Components CorporationIn Stock: 14018SS2012-Z Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

The Nidec Components Corporation 8SS2012-Z qualifies as a substitute based on the following critical parameters:

Matching Parameters:

• DPDT circuit configuration
• On-On switch function
• Through-hole mounting with PC pin termination
• 30V DC voltage rating (primary operating voltage)
• Silver contact finish
• ROHS3 compliance
• Active product status

Allowable Variations: The 8SS2012-Z operates at higher current ratings (6A AC / 4A DC) and voltage (125V AC), providing superior electrical performance margins. The extended mechanical life (100,000 cycles vs. 20,000 cycles) and electrical life (30,000 cycles vs. 20,000 cycles) represent performance enhancements. Operating temperature range (-30°C to 85°C) covers the original specification with extended upper limit capability.

Parameter Comparison

Engineering Selection Recommendations

Both the E-Switch 600DP1S2M4Q and Nidec Components Corporation 8SS2012-Z are active products with ROHS3 compliance and EAR99 ECCN classification. Selection between these components should be based on application-specific requirements:

The 600DP1S2M4Q is appropriate for applications with current demands up to 1A DC at 30V and mechanical cycling requirements up to 20,000 cycles.

The 8SS2012-Z provides higher current capacity (4A DC) and extended mechanical life (100,000 cycles), making it suitable for applications requiring greater electrical performance margins or higher cycle counts. The extended operating temperature upper limit (85°C vs. 80°C) may be beneficial in thermally demanding environments.

Both components maintain identical DC voltage ratings (30V) and circuit topology (DPDT On-On), ensuring functional compatibility in applications designed for the original specification.

Frequently Asked Questions (FAQ)

Q: Can the 8SS2012-Z directly replace the 600DP1S2M4Q in existing designs?

A: Yes, from a functional and electrical standpoint. Both components share DPDT On-On configuration, 30V DC rating, through-hole mounting, and PC pin termination. Physical dimensions should be verified during board layout review, as actuator length differs (5.00mm vs. 2.81mm).

Q: What are the key differences between these two switches?

A: The primary differences are current rating (1A vs. 4A DC), mechanical life (20,000 vs. 100,000 cycles), and operating temperature upper limit (80°C vs. 85°C). The 8SS2012-Z provides enhanced performance specifications across all three parameters.

Q: Are both parts RoHS compliant?

A: Yes, both the 600DP1S2M4Q and 8SS2012-Z are ROHS3 compliant and REACH unaffected.

Q: What should be considered when switching from one part to the other?

A: Verify PCB layout compatibility, particularly actuator length and switch travel distance. Confirm that the application does not require the specific IP67 rating mentioned for the 600DP1S2M4Q, as this feature specification is not provided for the 8SS2012-Z.

Q: Are both parts available in bulk packaging?

A: Yes, both components are available in bulk packaging with current inventory levels of 1171 units (600DP1S2M4Q) and 1374 units (8SS2012-Z).
