Cinch Connectivity Solutions Trompeter 6-0008 Equivalent & Substitute Parts

Part Overview

The Cinch Connectivity Solutions Trompeter 6-0008 is a Mini BNC connector jack designed for 75 Ohm coaxial applications. This is a female socket connector with right-angle panel mount configuration, solder termination, and through-hole PCB mounting. The part is classified as obsolete, making identification of active equivalent components essential for ongoing system support and new design implementations.

Substiute Parts

6-0008

Cinch Connectivity Solutions TrompeterIn Stock: 7786-0008 Datasheet

Current PartRFQ

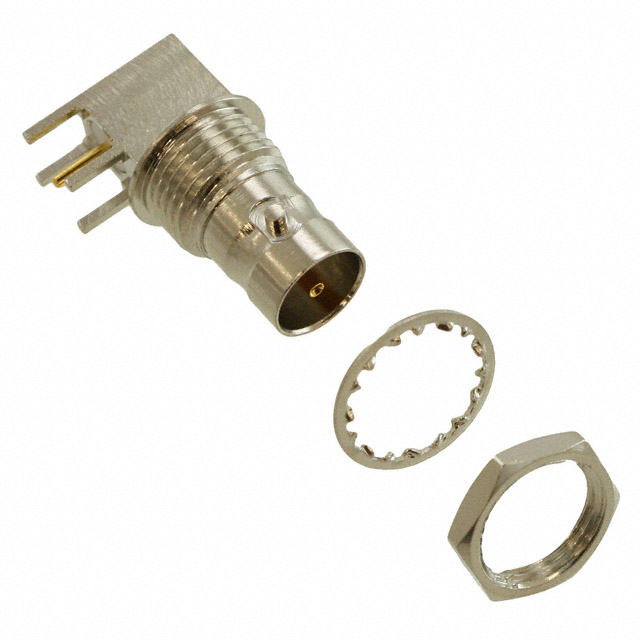

31-6055

Amphenol RFIn Stock: 162131-6055 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The Amphenol RF 31-6055 qualifies as a direct substitute for the Cinch Connectivity Solutions Trompeter 6-0008 based on the following critical parameters:

• Connector Style & Type: Both are Mini BNC jack female sockets
• Impedance: Both rated at 75 Ohms
• Mounting Configuration: Both feature panel mount, through-hole, right-angle solder termination
• Fastening Mechanism: Both use bayonet lock fastening
• Electrical Ratings: Both support 500 V voltage rating and 4 GHz maximum frequency
• Compliance: Both are RoHS compliant

The substitute part maintains functional and electrical equivalence within the specified parameter set.

Parameter Comparison

Engineering Selection Recommendations

The Amphenol RF 31-6055 is the active equivalent for the obsolete Cinch Connectivity Solutions Trompeter 6-0008. Selection of the 31-6055 is supported by:

• Active product status with current manufacturing availability
• ROHS3 compliance, exceeding the RoHS compliance of the original part
• Identical electrical and mechanical specifications for the critical parameters governing connector substitution
• Established inventory (1539 pcs in stock) ensuring supply continuity

The operating temperature range of the 31-6055 (-40°C ~ 85°C) is narrower than the original part (-65°C ~ 165°C). Applications requiring the full temperature range of the original specification should evaluate this difference against system requirements.

Frequently Asked Questions (FAQ)

Q: Can the Amphenol RF 31-6055 be used as a direct replacement for the Cinch 6-0008?

A: Yes. Both connectors share identical connector style, type, impedance, mounting configuration, and termination method. The 31-6055 is an active product with equivalent electrical and mechanical performance.

Q: What is the primary difference between these two parts?

A: The main difference is product status. The Cinch 6-0008 is obsolete, while the Amphenol RF 31-6055 is active with current manufacturing support. The 31-6055 also has a narrower operating temperature range (-40°C ~ 85°C versus -65°C ~ 165°C).

Q: Are there packaging differences between the two parts?

A: The Cinch 6-0008 packaging is not specified in the available data. The Amphenol RF 31-6055 is supplied in bulk packaging. Both include connector, nut, and washer components.

Q: Do both parts meet RoHS requirements?

A: Yes. The Cinch 6-0008 is RoHS Compliant. The Amphenol RF 31-6055 is ROHS3 Compliant, which represents a more current compliance standard.

Q: What are the mating cycle ratings?

A: The Cinch 6-0008 mating cycle rating is not specified. The Amphenol RF 31-6055 is rated for 500 mating cycles.
