Part Overview

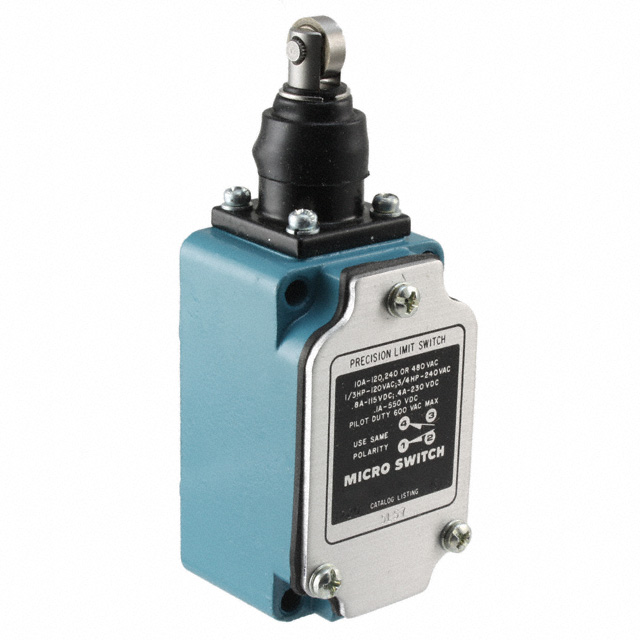

The Honeywell 5LS7 is an active-status SPDT snap action switch designed for chassis mount applications with 10A AC and 800mA DC current capacity at 120V AC / 115V DC. This switch features a roller plunger actuator, screw terminal connections, and IP67 ingress protection suitable for dust-tight and waterproof environments. The part is RoHS compliant and carries MSL Level 1 classification.

Equivalent and substitute parts are identified based on matching electrical specifications, mechanical mounting compatibility, and functional circuit configuration. Substitutes must maintain SPDT circuit topology, equivalent current and voltage ratings, chassis mount configuration, and screw terminal termination to ensure direct replacement capability.

Substiute Parts

5LS7

Honeywell Sensing and Productivity SolutionsIn Stock: 10985LS7 Datasheet

Current PartRFQ

D4B-2171N

Omron Automation and SafetyIn Stock: 1249D4B-2171N Datasheet

SimilarRFQ

D4B-4170N-NPT

Omron Automation and SafetyIn Stock: 1081D4B-4170N-NPT Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Honeywell 5LS7 are qualified based on the following mandatory electrical and mechanical parameters:

Primary Matching Criteria:

• SPDT circuit configuration (DB/DM topology)
• On-Momentary switch function
• 10A AC current rating
• 120V AC voltage rating
• Chassis mount configuration
• Screw terminal termination
• IP67 ingress protection rating
• MSL Level 1 classification

Secondary Compatibility Factors:

• Operating temperature range overlap with -29°C minimum
• Actuator type compatibility (roller plunger or equivalent pin plunger designs)
• Active product status

The Omron D4B-2171N and D4B-4170N-NPT both satisfy the primary electrical and mechanical matching criteria. Both parts maintain SPDT circuit topology, 10A AC / 120V AC ratings, chassis mount design, screw terminal connections, and IP67 protection. Differences in DC current ratings (6A vs. 800mA), DC voltage ratings (30V vs. 115V), and actuator geometry represent design variations within the substitute category but do not preclude functional equivalence for AC-primary applications.

Parameter Comparison

Engineering Selection Recommendations

Omron D4B-2171N Substitution: The D4B-2171N qualifies as a direct substitute for the Honeywell 5LS7 based on matching SPDT circuit topology, 10A AC / 120V AC electrical ratings, chassis mount configuration, screw terminal termination, and IP67 ingress protection. The part carries active product status and ROHS3 compliance. The extended operating temperature range (-40°C to 80°C) provides broader environmental coverage than the 5LS7. DC current and voltage ratings differ (6A at 30V versus 800mA at 115V), which is not a limiting factor for AC-primary applications. Roller plunger actuator geometry matches the original design.

Omron D4B-4170N-NPT Substitution: The D4B-4170N-NPT meets all primary electrical and mechanical substitution criteria: SPDT circuit, 10A AC / 120V AC ratings, chassis mount, screw terminal, and IP67 protection. Active product status is confirmed. The round pin plunger actuator represents a geometric variation from the roller plunger design but maintains functional equivalence within the snap action switch category. RoHS status is not applicable for this part. DC specifications (6A at 30V) differ from the original but do not affect AC circuit operation. Extended temperature range (-40°C to 80°C) exceeds the 5LS7 specification.

Compliance Considerations: Both Omron substitutes maintain MSL Level 1 classification and are suitable for unlimited moisture exposure. The D4B-2171N carries explicit ROHS3 compliance; the D4B-4170N-NPT RoHS status is not applicable. Selection between substitutes should be based on actuator type requirements (roller versus pin plunger) and specific RoHS compliance mandates in the application.

Frequently Asked Questions (FAQ)

Q: Can the Omron D4B-2171N directly replace the Honeywell 5LS7 in an existing circuit?

A: Yes. Both parts share identical SPDT circuit topology, 10A AC current rating, 120V AC voltage rating, chassis mount configuration, and screw terminal termination. Electrical and mechanical compatibility is established for direct substitution in AC applications.

Q: What is the significance of the DC current and voltage rating differences between the 5LS7 and substitute parts?

A: The Honeywell 5LS7 is rated for 800mA DC at 115V DC, while both Omron substitutes are rated for 6A DC at 30V DC. For applications operating exclusively on AC power at 120V, these DC rating differences are not operationally relevant. DC applications require verification that the substitute part's DC specifications meet the circuit requirements.

Q: How do the actuator types differ between the D4B-2171N and D4B-4170N-NPT?

A: The D4B-2171N uses a roller plunger actuator, matching the Honeywell 5LS7 design. The D4B-4170N-NPT uses a round pin plunger actuator. Both actuator types function within the snap action switch category and maintain equivalent switching performance. Selection depends on mechanical interface requirements in the application.

Q: Are both Omron substitutes RoHS compliant?

A: The D4B-2171N carries explicit ROHS3 compliance certification. The D4B-4170N-NPT has RoHS status listed as not applicable. Applications requiring RoHS compliance should specify the D4B-2171N.

Q: What is the operating temperature range difference, and does it affect substitution?

A: The Honeywell 5LS7 operates from -29°C to 71°C. Both Omron substitutes operate from -40°C to 80°C, providing extended temperature coverage. This difference does not preclude substitution; the broader range of the Omron parts is compatible with the 5LS7 specification envelope.

Q: Do the electrical and mechanical life ratings affect substitution decisions?

A: The Honeywell 5LS7 does not specify electrical or mechanical life values. Both Omron substitutes provide documented life ratings (500,000 electrical cycles and 30,000,000 mechanical cycles). These specifications indicate design durability but do not establish substitution incompatibility. Applications with specific life cycle requirements should reference the provided values.

Q: What packaging and inventory considerations apply to these substitutes?

A: All three parts are available in bulk packaging. Current inventory levels are: Honeywell 5LS7 (1,073 pcs), Omron D4B-2171N (1,178 pcs), and Omron D4B-4170N-NPT (1,009 pcs). Availability should be confirmed at the time of procurement.
