5-AB5050-2 RF EMI Absorbing Sheet Equivalent & Substitute Parts

Part Overview

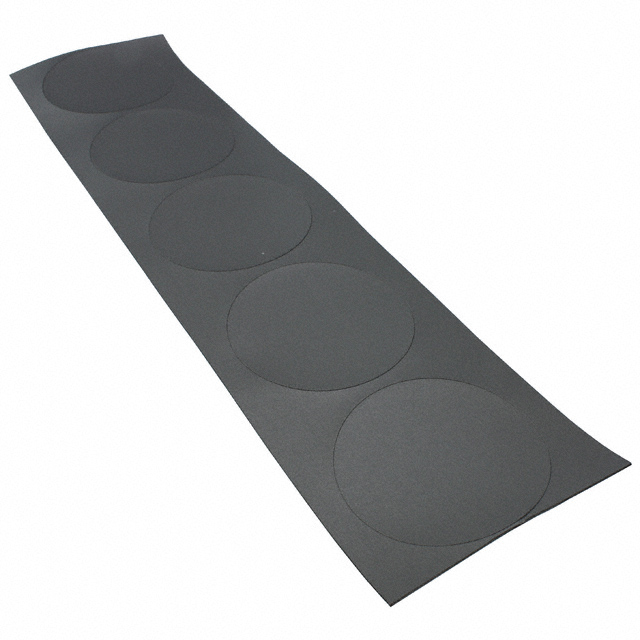

The 5-AB5050-2 is a 3M RF EMI absorbing sheet from the AB-5000 series, designed for electromagnetic interference suppression applications. This product is currently obsolete, making identification of suitable substitute components essential for ongoing system support and new design implementations. The absorbing sheet utilizes polymer resin with metal flakes in a non-conductive, single-sided adhesive configuration.

Substiute Parts

5-AB5050-2

3MIn Stock: 11435-AB5050-2 Datasheet

Current PartRFQ

AB5050SHF-210X297

3MIn Stock: 858AB5050SHF-210X297 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The AB5050SHF-210X297 qualifies as a functional substitute based on the following critical parameters:

Material and Functional Equivalence: Both parts utilize identical material composition (polymer resin with metal flakes) and maintain the same non-conductive, single-sided adhesive configuration, ensuring equivalent electromagnetic absorption characteristics.

Regulatory and Compliance Alignment: Both components share the same ECCN classification (EAR99) and HTSUS code (3919.90.5060), confirming regulatory equivalence. The substitute part maintains MSL 1 (Unlimited) moisture sensitivity classification.

Mechanical Compatibility: While the substitute part features a larger rectangular format (8.268" × 11.693") compared to the circular 2.000" format of the main part, the thickness differential (0.020" versus 0.022") falls within acceptable tolerance ranges for RF EMI absorption applications where material composition and adhesive properties are the primary functional determinants.

Product Status Consideration: The substitute part maintains Active product status, ensuring ongoing availability and supply chain continuity.

Parameter Comparison

Engineering Selection Recommendations

The AB5050SHF-210X297 represents the appropriate substitute for the obsolete 5-AB5050-2 based on functional and regulatory equivalence. The substitute part maintains Active product status, ensuring long-term availability and supply chain reliability. The AB5050SHF-210X297 provides additional compliance documentation through ROHS3 certification and REACH status confirmation, supporting modern procurement and environmental compliance requirements.

The primary consideration for implementation involves dimensional adaptation. The substitute part's larger rectangular format (8.268" × 11.693") requires mechanical redesign or material cutting to accommodate applications originally specified for the 2.000" circular format. The thickness differential of 0.002" (0.05mm) is negligible for RF EMI absorption performance.

Frequently Asked Questions (FAQ)

Q: Can the AB5050SHF-210X297 directly replace the 5-AB5050-2 without modification?

A: Direct replacement without modification is not possible due to dimensional differences. The substitute part features a rectangular format (8.268" × 11.693") versus the circular 2.000" format of the original part. Applications requiring the specific circular geometry or 2.000" dimension will require mechanical adaptation or material processing.

Q: Are the electromagnetic absorption characteristics equivalent between these parts?

A: Yes. Both parts utilize identical material composition (polymer resin with metal flakes) and maintain the same non-conductive, single-sided adhesive configuration. These factors determine RF EMI absorption performance, and both parts are functionally equivalent in this regard.

Q: What compliance advantages does the substitute part offer?

A: The AB5050SHF-210X297 provides ROHS3 compliance certification and confirmed REACH status, whereas the original part does not specify these certifications. Both parts maintain identical ECCN (EAR99) and HTSUS (3919.90.5060) classifications.

Q: Is the thickness difference between 0.022" and 0.020" significant for RF EMI absorption?

A: The 0.002" (0.05mm) thickness differential is negligible for RF EMI absorption applications. Material composition and adhesive properties are the primary functional determinants, and both parts are equivalent in these parameters.

Q: What is the shelf life consideration for the substitute part?

A: The AB5050SHF-210X297 specifies a 12-month shelf life from the date of shipment with storage at 70°F (21°C). The original part does not specify shelf life parameters. Both parts maintain MSL 1 (Unlimited) moisture sensitivity classification.

Q: Are there packaging differences between these parts?

A: Yes. The 5-AB5050-2 is packaged as a 5-pack, while the AB5050SHF-210X297 is supplied in box packaging. Procurement quantities and packaging requirements should be evaluated based on application needs.
