5-AB5050-1 RF EMI Absorbing Sheet Equivalent & Substitute Parts

Part Overview

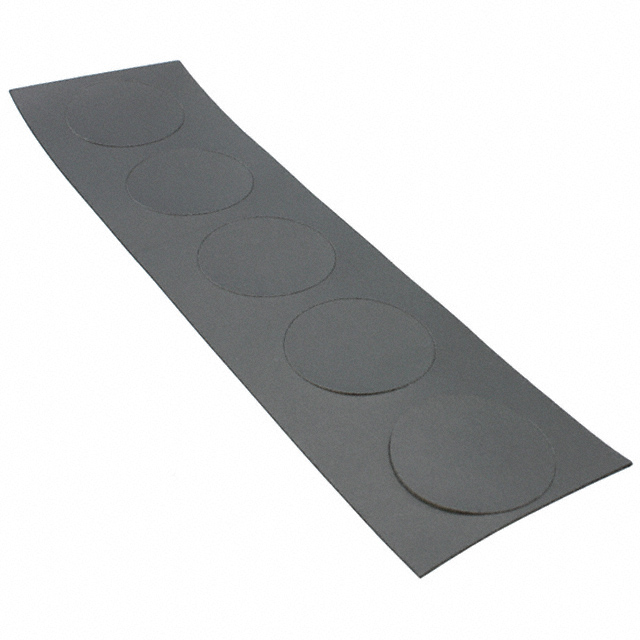

The 5-AB5050-1 is an RF EMI absorbing sheet from the 3M AB-5000 series, designed for electromagnetic interference suppression applications. This component features a circular geometry with 1.000" (25.40mm) diameter and 0.022" (0.55mm) thickness, utilizing polymer resin with metal flakes in a non-conductive, single-sided adhesive configuration. The product is currently obsolete, necessitating identification of functionally equivalent alternatives for ongoing procurement and system maintenance.

Substiute Parts

5-AB5050-1

3M (TC)In Stock: 9045-AB5050-1 Datasheet

Current PartRFQ

AB5050SHF-210X297

3MIn Stock: 858AB5050SHF-210X297 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 5-AB5050-1 is determined by the following critical parameters:

Material composition must remain polymer resin with metal flakes to maintain electromagnetic absorption characteristics. Adhesive configuration must be non-conductive and single-sided to preserve electrical isolation properties. The operating temperature range must encompass or match the original specification of -25°C ~ 85°C. Moisture sensitivity level must be MSL 1 or equivalent to ensure storage and handling compatibility. Export classification (ECCN) and tariff codes must align with the original component for regulatory compliance.

The substitute part AB5050SHF-210X297 qualifies as an equivalent alternative based on identical material composition, adhesive type, MSL rating, and export classification. Geometric differences (rectangular versus circular shape, larger overall dimensions) do not preclude substitution when application space and mounting requirements permit.

Parameter Comparison

Engineering Selection Recommendations

The AB5050SHF-210X297 is the designated substitute for the obsolete 5-AB5050-1. Selection is based on the following engineering criteria:

Material and adhesive properties are identical, ensuring equivalent electromagnetic absorption performance and electrical isolation characteristics. Both components maintain MSL 1 rating, confirming equivalent moisture handling and storage requirements. Export classification alignment (EAR99) and tariff code matching (3919.90.5060) satisfy regulatory compliance requirements. The substitute part carries Active product status with confirmed current availability, addressing the obsolescence of the original component.

The AB5050SHF-210X297 achieves ROHS3 compliance, providing enhanced environmental and regulatory positioning compared to the original part specification. Thickness variation (0.020" versus 0.022") is within typical manufacturing tolerance ranges for this product category and does not compromise functional equivalence.

Geometric differences require application-level assessment. The rectangular form factor (8.268" × 11.693") and larger overall dimensions necessitate evaluation of available mounting space and mechanical integration requirements specific to the end application.

Frequently Asked Questions (FAQ)

Q: Why is the 5-AB5050-1 being replaced? A: The 5-AB5050-1 has reached obsolete status. The AB5050SHF-210X297 is an active product from the same manufacturer with identical material composition and functional properties.

Q: Are the material properties identical between the two parts? A: Yes. Both components utilize polymer resin with metal flakes in a non-conductive, single-sided adhesive configuration, ensuring equivalent electromagnetic absorption characteristics.

Q: What is the significance of the thickness difference (0.022" versus 0.020")? A: The 0.002" (0.05mm) thickness variation falls within standard manufacturing tolerances for RF absorbing sheets and does not alter functional performance for typical EMI suppression applications.

Q: Can the rectangular AB5050SHF-210X297 replace the circular 5-AB5050-1 in all applications? A: Geometric compatibility depends on specific application requirements. The rectangular form factor and larger dimensions require verification of available mounting space and mechanical integration constraints.

Q: Are both parts compliant with export regulations? A: Yes. Both components carry EAR99 classification and match HTSUS code 3919.90.5060, confirming equivalent export compliance status.

Q: What are the storage requirements for the substitute part? A: The AB5050SHF-210X297 maintains MSL 1 (Unlimited) rating with recommended storage at 70°F (21°C) and 12-month shelf life from date of shipment.

Q: Does the substitute part meet environmental compliance standards? A: The AB5050SHF-210X297 is ROHS3 compliant and REACH unaffected, providing enhanced environmental regulatory alignment.
