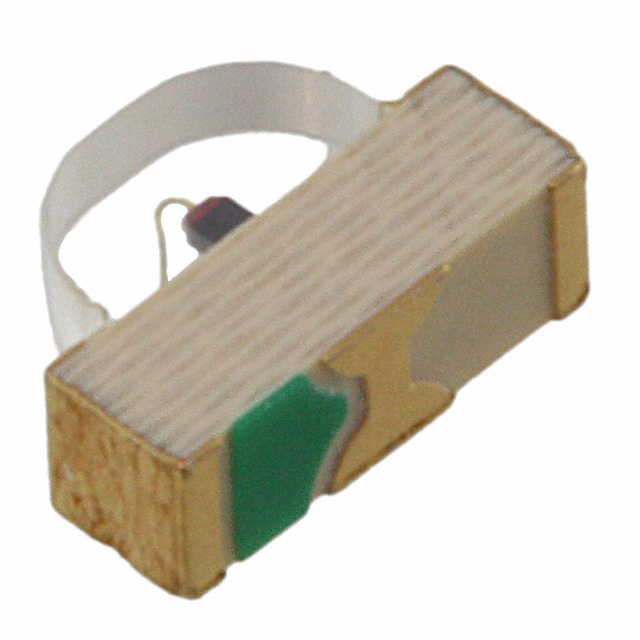

Dialight 5972111407 LED Red Clear 1208 SMD Right Angle - Equivalent & Substitute Parts

Part Overview

The Dialight 5972111407 is a red LED indication component in the microLED® series, featuring a 1208 surface mount right angle configuration with a clear, domed rectangular lens. This discrete 1.7V LED operates at 20mA test current and delivers 12.4mcd luminous intensity with a 130° viewing angle. The component is classified as obsolete, which necessitates identification of active equivalent parts for new designs and ongoing production requirements.

Substiute Parts

5972111407

DialightIn Stock: 11635972111407 Datasheet

Current PartRFQ

5972111407F

DialightIn Stock: 33385972111407F Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The Dialight 5972111407F serves as a direct functional equivalent to the 5972111407. Substitution is valid based on the following matching parameters:

• Color: Red
• Lens Transparency: Clear
• Lens Size: 2.00mm x 1.00mm
• Voltage - Forward (Vf) Typical: 1.7V
• Current - Test: 20mA
• Millicandela Rating: 12.4mcd
• Viewing Angle: 130°
• Mounting Type: Surface Mount, Right Angle
• Wavelength - Peak: 660nm
• Package / Case: 2-SMD, No Lead
• Supplier Device Package: 1208
• Size / Dimension: 3.00mm L x 2.00mm W
• Height (Max): 1.00mm

The primary distinction between these parts is packaging format and product status. The 5972111407F is supplied in Tape & Reel (TR) format and maintains Active product status, whereas the original 5972111407 is Obsolete.

Parameter Comparison

Engineering Selection Recommendations

The Dialight 5972111407F is the direct active equivalent for the obsolete 5972111407. All electrical and optical parameters are identical, ensuring functional compatibility in circuit designs. The 5972111407F maintains ROHS3 compliance, whereas the original part is RoHS non-compliant. This compliance improvement makes the 5972111407F suitable for applications subject to RoHS regulations.

The MSL rating differs between the two parts: the original 5972111407 carries MSL 1 (Unlimited), while the 5972111407F carries MSL 3 (168 Hours). This difference reflects standard moisture handling requirements and does not affect electrical performance when proper storage and handling procedures are followed.

For new designs and production continuity, the 5972111407F should be selected due to its Active product status and regulatory compliance.
