Pomona Electronics 5936-9 Banana Plug Connector Equivalent & Substitute Parts

Part Overview

The Pomona Electronics 5936-9 is a miniature banana plug connector designed for solder termination applications. This connector is classified as a Banana and Tip Connector and is supplied in white insulation. The part is currently in active production status with 1058 pieces available in new original inventory.

Substitute parts are identified when equivalent electrical and mechanical specifications are maintained across the product family, allowing for functional interchangeability in applications where connector color or specific packaging does not impose design constraints.

Substiute Parts

5936-9

Pomona ElectronicsIn Stock: 10695936-9 Datasheet

Current PartRFQ

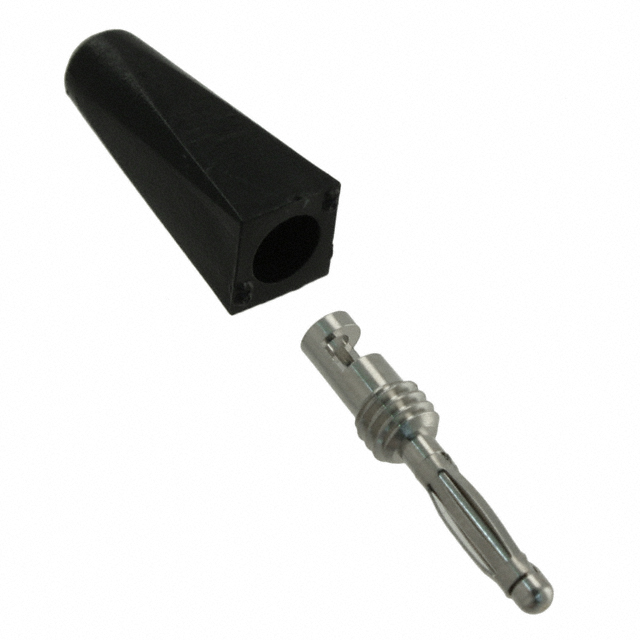

5936-0

Pomona ElectronicsIn Stock: 54105936-0 Datasheet

SimilarRFQ

5936-2

Pomona ElectronicsIn Stock: 11575936-2 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 5936-9 are identified within the Pomona Electronics 5936 base product family. Substitution is valid when the following core parameters remain constant:

• Type: Banana Plug
• Gender: Male
• Plug/Mating Plug Diameter: Miniature
• Mounting Type: Free Hanging (In-Line)
• Termination: Solder
• Insulation: Non-Mating End Insulated
• Wire Gauge: 18-22 AWG
• Contact Finish: Nickel
• Contact Material: Beryllium Copper
• Body Material: Polyamide (PA), Nylon
• RoHS Status: ROHS3 Compliant
• REACH Status: REACH Unaffected

The primary variable among substitute parts is connector color, which does not affect electrical or mechanical performance. All identified substitutes maintain identical functional specifications and are suitable for applications where color coding is not a critical design requirement.

Parameter Comparison

Engineering Selection Recommendations

All three parts—5936-9, 5936-0, and 5936-2—are active production items with ROHS3 compliance and REACH unaffected status, meeting current regulatory requirements for electronic component manufacturing and distribution.

Selection between these substitutes should be based on application requirements:

• 5936-9 (White): Select when white insulation is specified for circuit identification or design documentation.
• 5936-0 (Black): Select when black insulation is required for standard negative or ground circuit identification.
• 5936-2 (Red): Select when red insulation is required for standard positive or live circuit identification.

All parts are functionally equivalent and interchangeable from an electrical and mechanical standpoint when color coding is not a design constraint.

Frequently Asked Questions (FAQ)

Q: Can 5936-0 (Black) be used in place of 5936-9 (White)?

A: Yes. Both connectors share identical electrical and mechanical specifications. The only difference is insulation color. Substitution is valid unless the application explicitly requires white insulation for circuit identification or documentation purposes.

Q: Are all three parts compatible with the same mating receptacles?

A: Yes. All three parts are miniature male banana plugs with identical plug diameter and contact specifications. They are mechanically and electrically compatible with the same miniature female banana receptacles.

Q: What wire gauges are supported by these connectors?

A: All three parts support wire gauges from 18 to 22 AWG for solder termination.

Q: Do these connectors meet current regulatory standards?

A: Yes. All three parts are ROHS3 compliant and REACH unaffected, meeting current regulatory requirements for electronic components.

Q: What is the difference between packaging options?

A: The 5936-9 is supplied in a 10-piece package. The 5936-0 and 5936-2 are supplied in bulk packaging. Packaging does not affect connector performance or compatibility.

Q: Can these connectors be used in high-temperature applications?

A: Operating temperature specifications are not provided in the technical data for these parts. Consult Pomona Electronics technical documentation or contact the manufacturer for thermal performance requirements.
