TE Connectivity AMP Connectors 5-928247-5 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 5-928247-5 is a rectangular connector housing designed for receptacle applications. This component is a 5-position housing with a 5.00mm pitch, featuring female socket contacts and crimp termination. The part is classified as Active product status and is RoHS Compliant, making it suitable for current production applications. Substitute parts are identified when equivalent electrical and mechanical parameters are required but the original part number is unavailable or when alternative configurations meet application specifications.

Substiute Parts

5-928247-5

TE Connectivity AMP ConnectorsIn Stock: 10385-928247-5 Datasheet

Current PartRFQ

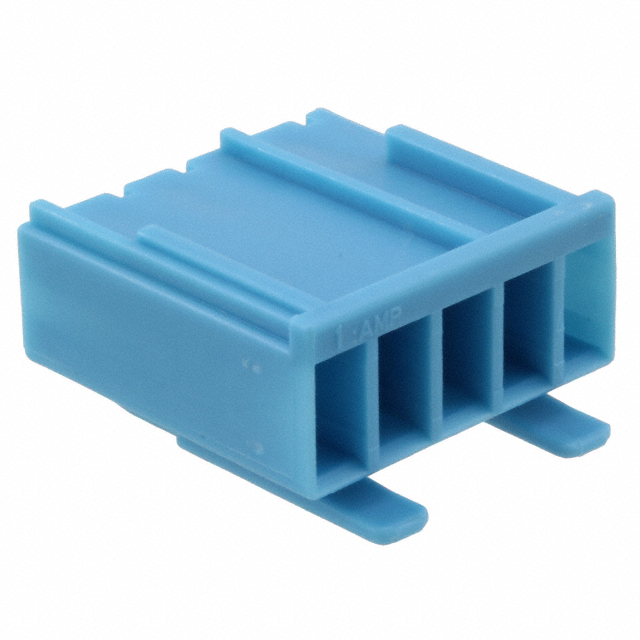

3-928247-5

TE Connectivity AMP ConnectorsIn Stock: 7803-928247-5 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 5-928247-5 are identified based on strict equivalence of core electrical and mechanical parameters. The following parameters must remain identical for a part to qualify as a substitute:

• Connector Type: Receptacle
• Contact Type: Female Socket
• Number of Positions: 5
• Pitch: 0.197" (5.00mm)
• Number of Rows: 1
• Mounting Type: Free Hanging (In-Line)
• Contact Termination: Crimp
• Fastening Type: Latch Lock
• Insulation Material: Polyamide (PA), Nylon
• Operating Temperature Range: -40°C ~ 110°C
• Base Product Number: 928247

The substitute part 3-928247-5 meets all these criteria. The primary difference between the main part and the substitute is the housing color (Green versus Blue), which does not affect electrical or mechanical functionality. Both parts maintain identical performance characteristics and are suitable for equivalent applications.

Parameter Comparison

Engineering Selection Recommendations

Both the 5-928247-5 and 3-928247-5 are Active product status components manufactured by TE Connectivity AMP Connectors. The 5-928247-5 carries RoHS Compliant certification, while the 3-928247-5 carries ROHS3 Compliant certification. Both certifications satisfy RoHS requirements for current applications.

The selection between these parts should be based on application-specific requirements:

• 5-928247-5 (Green Housing): Select when green housing color is specified or required for circuit board assembly identification or manufacturing workflow.
• 3-928247-5 (Blue Housing): Select when blue housing color is specified or when ROHS3 Compliant certification is explicitly required.

Both parts are electrically and mechanically equivalent. The choice between them does not impact connector performance, mating characteristics, or thermal operating range. Inventory availability may also influence selection, with 957 pieces of the 5-928247-5 and 720 pieces of the 3-928247-5 currently in stock.

Frequently Asked Questions (FAQ)

Q: Can the 3-928247-5 be used as a direct replacement for the 5-928247-5?

A: Yes. The 3-928247-5 is electrically and mechanically equivalent to the 5-928247-5. Both parts share identical specifications for connector type, contact configuration, pitch, mounting method, termination type, and operating temperature range. The only difference is housing color.

Q: Does housing color affect connector functionality?

A: No. Housing color is a visual identification feature and does not impact electrical performance, mechanical fit, or thermal characteristics. Both green and blue housings provide equivalent insulation and structural properties.

Q: Are both parts RoHS compliant?

A: Yes. The 5-928247-5 is RoHS Compliant, and the 3-928247-5 is ROHS3 Compliant. Both meet RoHS requirements for current production applications.

Q: What is the difference between RoHS Compliant and ROHS3 Compliant?

A: Both certifications indicate compliance with RoHS directives. ROHS3 represents a more recent version of the RoHS standard. Both are acceptable for applications requiring RoHS compliance.

Q: Are contacts included with these housings?

A: No. Both the 5-928247-5 and 3-928247-5 are housings only. Contacts must be sourced separately and installed using crimp termination methods.

Q: What is the Moisture Sensitivity Level (MSL) rating?

A: Both parts carry an MSL rating of 1 (Unlimited), indicating no moisture sensitivity restrictions during storage or handling.

Q: Can these connectors be used in high-temperature applications?

A: Yes. Both parts are rated for operating temperatures from -40°C to 110°C, making them suitable for industrial and automotive applications within this temperature range.

Q: What termination method is required for these connectors?

A: Both parts use crimp termination. Contacts must be crimped onto wire conductors and inserted into the housing positions.
