TE Connectivity AMP Connectors 5917334-1 Equivalent & Substitute Parts

Part Overview

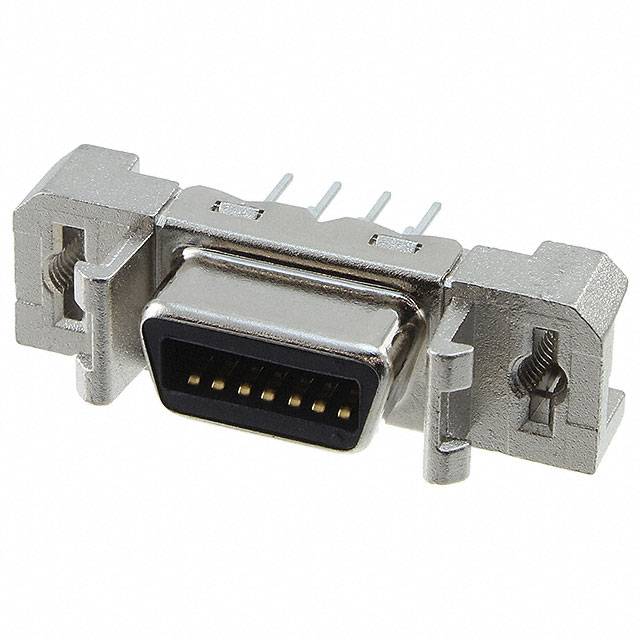

The TE Connectivity AMP Connectors 5917334-1 is a 14 Position Receptacle Connector Panel Mount, Through Hole Solder from the CHAMP .050 II series. This D-Sub, D-Shaped Connector features outer shroud contacts with board lock functionality and gold-plated contacts. The product is classified as obsolete, necessitating identification of equivalent substitute components that maintain functional and electrical compatibility for ongoing system support and new design implementations.

Substiute Parts

5917334-1

TE Connectivity AMP ConnectorsIn Stock: 11205917334-1 Datasheet

Current PartRFQ

10214-6212PC

3MIn Stock: 162310214-6212PC Datasheet

SimilarRFQ

10214-6212PL

3MIn Stock: 120310214-6212PL Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 5917334-1 are qualified based on the following critical parameters that determine functional and mechanical compatibility:

Core Compatibility Parameters:

• Connector Type: Receptacle
• Number of Positions: 14
• Number of Rows: 2
• Mounting Type: Panel Mount, Through Hole
• Termination: Solder
• Connector Style: Outer Shroud Contacts
• Contact Finish: Gold
• RoHS Status: RoHS Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

The substitute parts 10214-6212PC and 10214-6212PL, both manufactured by 3M from the 102 Mini D Ribbon (MDR) series, satisfy all core compatibility parameters. Both substitutes are active products with current inventory availability, providing viable alternatives to the obsolete 5917334-1. The substitutes maintain identical electrical and mechanical interface requirements while offering enhanced features such as shielding and active product status.

Parameter Comparison

Engineering Selection Recommendations

For Direct Replacement Applications:

The 3M 10214-6212PC and 10214-6212PL connectors serve as functional equivalents to the obsolete TE Connectivity 5917334-1. Both substitute parts maintain identical core electrical and mechanical specifications, including 14-position receptacle configuration, panel mount through-hole solder termination, and outer shroud contact design.

Product Status Consideration:

The 5917334-1 is classified as obsolete with no active manufacturing. The substitute parts 10214-6212PC and 10214-6212PL are both active products with current inventory availability, ensuring long-term supply chain viability and continued technical support.

Compliance and Certification:

All three connectors maintain RoHS Compliance and Moisture Sensitivity Level 1 (Unlimited) ratings, satisfying regulatory and environmental requirements. Both substitute parts carry REACH Unaffected status, providing additional compliance assurance.

Feature Differentiation:

The original 5917334-1 incorporates board lock functionality. The substitute parts 10214-6212PC and 10214-6212PL provide shielded construction, with 10214-6212PL additionally featuring latchblocks. These enhanced features provide improved electromagnetic interference protection and mechanical retention compared to the original design.

Frequently Asked Questions (FAQ)

Q: Can the 3M 10214-6212PC or 10214-6212PL directly replace the TE Connectivity 5917334-1?

A: Yes. Both 3M connectors maintain identical core specifications: 14-position receptacle configuration, 2-row arrangement, panel mount through-hole solder termination, outer shroud contacts, and gold contact finish. All three connectors are RoHS Compliant with MSL 1 (Unlimited) ratings.

Q: What is the primary difference between the two 3M substitute options?

A: The 10214-6212PC features a Housing/Shell (M2.6) flange, while the 10214-6212PL includes a Housing/Shell (M2.5) flange and incorporates latchblocks for enhanced mechanical retention. Contact finish thickness also differs: 10214-6212PC provides 30.0µin (0.76µm) versus 10214-6212PL at 7.87µin (0.200µm).

Q: Are there packaging differences between the substitute parts?

A: Both 3M substitute parts are supplied in Bulk packaging. The original TE Connectivity 5917334-1 packaging specification was not provided in the technical data.

Q: Do the substitute parts maintain the same mounting footprint?

A: The substitute parts maintain Panel Mount, Through Hole solder termination identical to the original. The flange feature dimensions differ slightly (M2.6 versus M2.5), which may require verification against specific PCB layout requirements.

Q: What is the inventory status for these substitute parts?

A: The 5917334-1 has 1068 pieces in stock as new original inventory. The 3M 10214-6212PC has 1558 pieces available, and the 10214-6212PL has 1159 pieces available, both as new original inventory.

Q: Are both substitute parts classified as active products?

A: Yes. Both the 10214-6212PC and 10214-6212PL are active products with current manufacturing status, ensuring ongoing availability and technical support compared to the obsolete 5917334-1.
