Part Overview

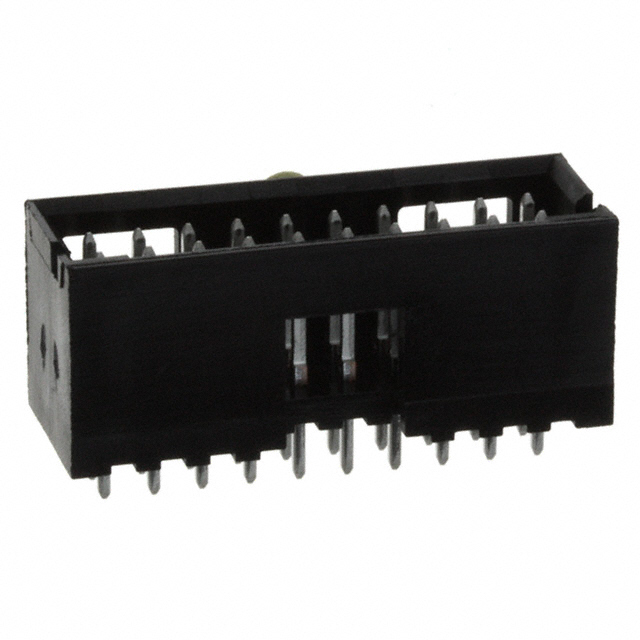

The TE Connectivity AMP Connectors 5-87589-6 is a rectangular connector header designed for through-hole mounting applications. This shrouded, 20-position connector with 2.54mm pitch serves board-to-board and cable interconnection requirements. The part is currently active in production with full inventory availability. Equivalent and substitute parts are identified to provide alternative sourcing options when the primary part is unavailable or when design flexibility permits component selection from multiple qualified manufacturers.

Substiute Parts

5-87589-6

TE Connectivity AMP ConnectorsIn Stock: 7565-87589-6 Datasheet

Current PartRFQ

0901301120

MolexIn Stock: 156460901301120 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the TE Connectivity 5-87589-6 are identified based on electrical and mechanical compatibility within the rectangular connector category. The substitution logic is based on the following critical parameters that must align across parts:

Mandatory Matching Parameters:

• Connector Type: Header
• Contact Type: Male Pin
• Number of Positions: 20
• Number of Rows: 2
• Pitch - Mating: 0.100" (2.54mm)
• Row Spacing - Mating: 0.100" (2.54mm)
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole
• Termination: Solder
• Contact Shape: Square
• Contact Finish - Mating: Tin
• Material Flammability Rating: UL94 V-0

The Molex 0901301120 connector satisfies all mandatory matching parameters and is classified as a direct substitute for the TE Connectivity 5-87589-6. Both parts are active products with ROHS3 compliance and MSL 1 rating, ensuring regulatory and environmental compatibility.

Parameter Comparison

Engineering Selection Recommendations

Both the TE Connectivity 5-87589-6 and Molex 0901301120 are active products with full regulatory compliance. Selection between these parts is based on the following engineering criteria:

TE Connectivity 5-87589-6 (AMPMODU Mod II Series):

• Primary choice when AMPMODU Mod II series compatibility is required
• Phosphor bronze contact material provides specific mechanical properties
• Detent lock fastening mechanism
• Current rating of 3A specified
• Operating temperature range -65°C to 105°C

Molex 0901301120 (C-Grid III 90130 Series):

• Alternative selection when C-Grid III 90130 series compatibility is required
• Brass contact material with slightly higher finish thickness (118.1µin vs. 100.0µin)
• Latch holder fastening mechanism
• Polyester insulation material (alternative to polyamide)
• Suitable for automotive and general purpose applications

Both parts meet UL94 V-0 flammability requirements, ROHS3 compliance, and MSL 1 moisture sensitivity specifications. Mechanical dimensions show minor variations in contact length and insulation height, which are within typical manufacturing tolerances for this connector category. The choice between these parts should be based on series compatibility requirements, fastening mechanism preference, and application-specific material specifications.

Frequently Asked Questions (FAQ)

Q: Can the Molex 0901301120 directly replace the TE Connectivity 5-87589-6 in existing designs?

A: The Molex 0901301120 is mechanically and electrically compatible as a substitute. Both connectors share identical pitch (2.54mm), position count (20), row configuration (2 rows), shrouding (4-wall), and contact finish (tin). Minor dimensional variations exist in contact length and insulation height. Design verification is necessary to confirm compatibility with specific mating connectors and PCB layouts.

Q: What are the differences in contact material between these two parts?

A: The TE Connectivity 5-87589-6 uses phosphor bronze contacts, while the Molex 0901301120 uses brass contacts. Both materials are suitable for tin-plated mating surfaces. The contact finish thickness differs slightly: TE Connectivity at 100.0µin (2.54µm) and Molex at 118.1µin (3.00µm).

Q: Are both parts compliant with current environmental and regulatory standards?

A: Yes. Both the TE Connectivity 5-87589-6 and Molex 0901301120 are ROHS3 compliant, REACH unaffected, and classified as EAR99 for export control purposes. Both carry MSL 1 (Unlimited) moisture sensitivity ratings and UL94 V-0 flammability certification.

Q: What is the difference between the fastening mechanisms?

A: The TE Connectivity 5-87589-6 uses a detent lock fastening type, while the Molex 0901301120 uses a latch holder fastening type. These are different mechanical retention systems for mating connectors. Selection depends on the mating connector type and application requirements.

Q: Are there any temperature or current rating differences?

A: The TE Connectivity 5-87589-6 specifies an operating temperature range of -65°C to 105°C and a current rating of 3A. The Molex 0901301120 does not specify these parameters in the provided data. Applications requiring specific temperature or current ratings should reference the TE Connectivity part or obtain complete specifications from Molex.

Q: What insulation materials are used in each connector?

A: The TE Connectivity 5-87589-6 uses polyamide (PA) nylon with glass filling. The Molex 0901301120 uses polyester with glass filling. Both materials are glass-filled for mechanical strength and meet UL94 V-0 flammability requirements.

Q: Can these connectors be used interchangeably in automotive applications?

A: The Molex 0901301120 is specified for automotive and general purpose applications. The TE Connectivity 5-87589-6 does not specify automotive applications in the provided data. For automotive applications, the Molex part is the documented choice. For general purpose applications, both parts are suitable.
