Dialight 5862402205 LED Mini Bayonet T3-1/4 28V Green - Equivalent & Substitute Parts

Part Overview

The Dialight 5862402205 is an LED lamp replacement designed as a green miniature bayonet (BA9S) indicator light rated for 28V operation. This component is classified as obsolete, making identification of suitable substitutes essential for system maintenance and component sourcing. The part delivers 825 millicandela at a 525nm wavelength, providing reliable green indication in 28V DC applications. Due to its obsolete status, the active equivalent part ensures continued availability for replacement and repair operations.

Substiute Parts

5862402205

DialightIn Stock: 8005862402205 Datasheet

Current PartRFQ

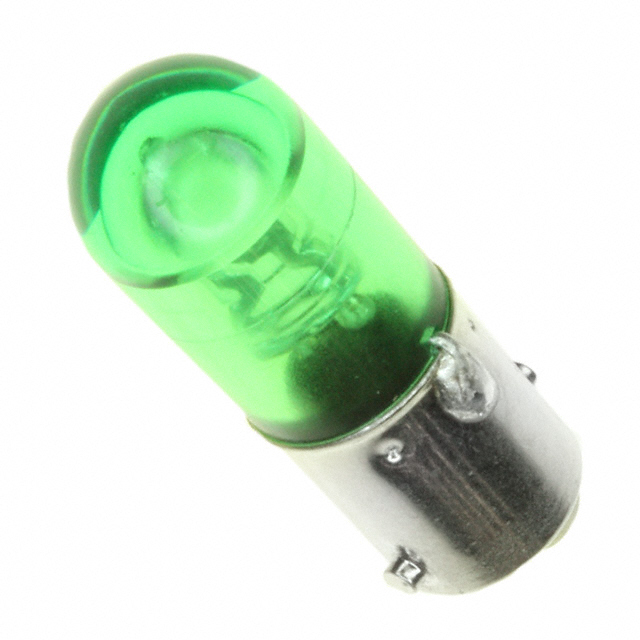

5862402205F

DialightIn Stock: 11365862402205F Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Dialight 5862402205 is determined by strict equivalence across the following critical parameters:

• Base Type: Miniature Bayonet (BA9S) - mechanical and electrical interface requirement
• Size / Dimension: T - 3 1/4 - physical form factor for mounting compatibility
• Voltage - Forward (Vf) (Typ): 28V - electrical operating specification
• Wavelength: 525nm - optical output specification for green indication
• Millicandela Rating: 825mcd - luminous intensity requirement
• Configuration: Single - electrical configuration

The substitute part 5862402205F maintains identical specifications across all these parameters, establishing direct functional equivalence. The primary distinction is product status: the original part is obsolete while the substitute is active, with improved compliance documentation (RoHS3 Compliant).

Parameter Comparison

Engineering Selection Recommendations

The Dialight 5862402205F is the direct active equivalent for the obsolete 5862402205. Selection of the substitute part is based on:

• Identical electrical and optical specifications across all critical parameters
• Active product status ensuring ongoing availability and supply chain continuity
• RoHS3 compliance certification providing enhanced regulatory alignment
• Equivalent moisture sensitivity rating (MSL 1) for reliability in standard operating environments
• Maintained REACH unaffected status for regulatory consistency

The substitute part is suitable for direct replacement in all applications where the original part was specified, with no circuit or mechanical modifications required.

Frequently Asked Questions (FAQ)

Q: Can the 5862402205F replace the 5862402205 in existing installations?

A: Yes. The substitute part maintains identical voltage, wavelength, luminous intensity, base type, and physical dimensions. Direct replacement is possible without circuit or mechanical modifications.

Q: What is the significance of the product status change from Obsolete to Active?

A: The active status of the 5862402205F ensures continued manufacturing and availability. This eliminates supply chain risk associated with obsolete components and provides access to current production batches.

Q: Are there packaging differences between these parts?

A: The original part is specified with "-" packaging notation, while the substitute is supplied in Bulk packaging. Both maintain identical electrical and optical performance; packaging difference reflects current distribution practices for the active part.

Q: Does the RoHS3 compliance of the substitute part affect compatibility?

A: No. RoHS3 compliance is an enhancement that does not alter electrical or optical performance. It provides additional regulatory alignment for applications subject to RoHS requirements.

Q: What are the key parameters that must match for substitution?

A: Miniature Bayonet (BA9S) base type, T - 3 1/4 physical dimension, 28V forward voltage, 525nm wavelength, and 825mcd luminous intensity must remain constant for functional equivalence.
