TE Connectivity AMP Connectors 583853-5 Equivalent & Substitute Parts

Part Overview

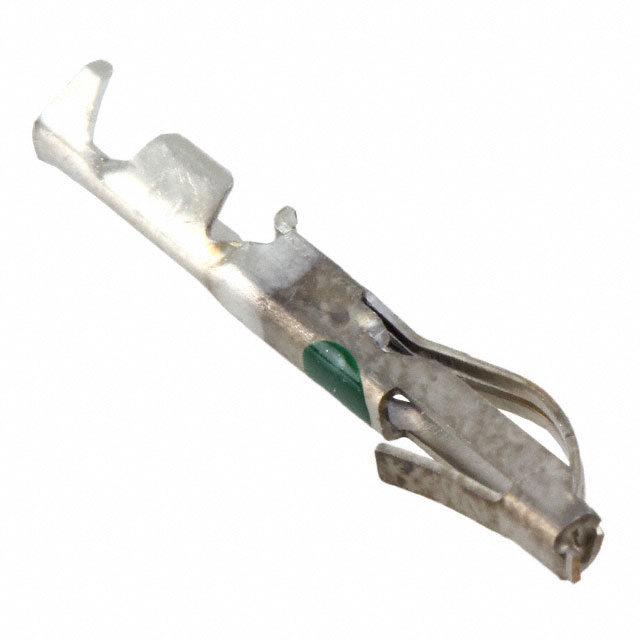

The TE Connectivity AMP Connectors 583853-5 is an edge terminal connector from the TWIN LEAF series, designed for non-gendered card edge applications. This component features a 20-24 AWG crimp termination with gold-plated phosphor bronze contacts. The part is currently active in production with 672 pieces available in bulk packaging. Alternative equivalent parts may be required due to inventory availability, compliance requirements, or specific application needs.

Substiute Parts

583853-5

TE Connectivity AMP ConnectorsIn Stock: 701583853-5 Datasheet

Current PartRFQ

5-583853-5

TE Connectivity AMP ConnectorsIn Stock: 219835-583853-5 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 583853-5 is determined by strict equivalence across the following critical parameters:

• Wire Gauge: 20-24 AWG
• Contact Termination Method: Crimp
• Contact Material: Phosphor Bronze
• Contact Finish: Gold at 30.0µin (0.76µm) thickness
• Connector Category: Card Edge Connectors
• Series Compatibility: TWIN LEAF
• Pin or Socket Type: Non-Gendered
• Moisture Sensitivity Level: 1 (Unlimited)

The substitute part 5-583853-5 maintains identical electrical and mechanical specifications across all these parameters, establishing full functional equivalence. Both parts share the same base product number (583853) and are manufactured by TE Connectivity AMP Connectors.

Parameter Comparison

Engineering Selection Recommendations

Both the 583853-5 and 5-583853-5 are functionally equivalent edge terminal connectors suitable for identical applications. Selection between these parts should be based on the following factors:

583853-5: This part is suitable for applications where RoHS compliance is not a requirement. It maintains full electrical and mechanical compatibility with the TWIN LEAF series specifications.

5-583853-5: This variant is RoHS Compliant, making it the appropriate choice for applications subject to RoHS regulations or customer specifications requiring RoHS certification. The substitute part offers significantly higher inventory availability (21,941 pieces versus 672 pieces), providing supply chain advantages.

Both parts carry identical ECCN (EAR99) and HTSUS (8536.90.4000) classifications, ensuring equivalent export and tariff treatment. The REACH status differs between the two variants; however, this does not affect functional substitution capability.

Frequently Asked Questions (FAQ)

Q: Can 5-583853-5 be used as a direct replacement for 583853-5?

A: Yes. The 5-583853-5 is a direct functional equivalent. All electrical and mechanical parameters are identical, including wire gauge (20-24 AWG), contact termination (crimp), contact material (phosphor bronze), contact finish (gold at 30.0µin thickness), and connector configuration (non-gendered TWIN LEAF series).

Q: What is the difference between these two part numbers?

A: The primary difference is RoHS compliance status. The 5-583853-5 is RoHS Compliant, while the 583853-5 is not applicable for RoHS. Both parts are otherwise identical in form, fit, and function. The 5-583853-5 also has significantly higher inventory availability.

Q: Are there any compatibility concerns when substituting between these parts?

A: No compatibility concerns exist. Both parts are manufactured by TE Connectivity AMP Connectors, belong to the same TWIN LEAF series, and maintain identical specifications for all critical parameters including wire gauge, termination method, contact material, and finish thickness.

Q: Which part should be selected for new designs?

A: Selection depends on regulatory requirements. For applications requiring RoHS compliance, the 5-583853-5 is the appropriate choice. For applications without RoHS requirements, either part is suitable. The 5-583853-5 offers the additional advantage of higher inventory availability.

Q: Do these parts require different crimping tools or installation procedures?

A: No. Both parts use identical crimp termination specifications for 20-24 AWG wire and require the same installation procedures and tooling.

Q: What is the moisture sensitivity level for both parts?

A: Both parts carry Moisture Sensitivity Level 1 (Unlimited), indicating no moisture sensitivity restrictions during storage or handling.
