TE Connectivity 583299-1 Card Edge Connector Housing Equivalent & Substitute Parts

Part Overview

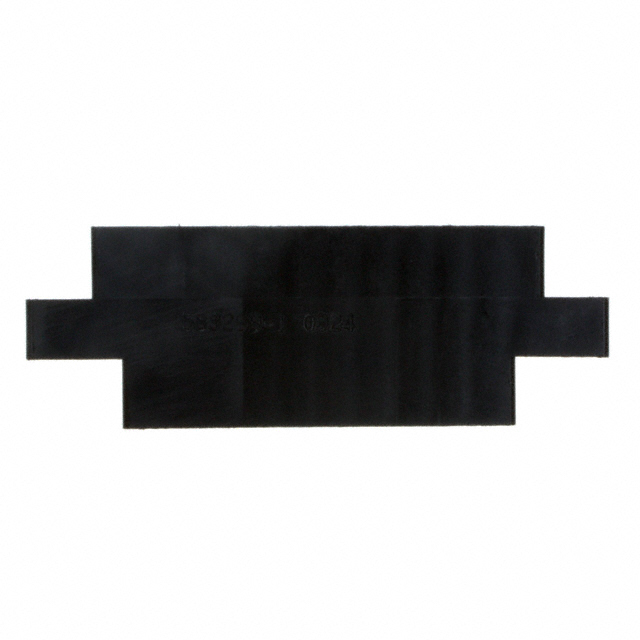

The TE Connectivity AMP Connectors 583299-1 is a 20-position card edge connector housing designed for panel mount applications with 0.156" (3.96mm) pitch spacing. This connector accommodates card thicknesses between 0.055" and 0.070" (1.40mm to 1.78mm) and features a black polyester thermoplastic housing with top mount flange configuration.

The 583299-1 carries an obsolete product status, making identification of equivalent substitute components essential for ongoing system support, maintenance, and new design implementations. Active equivalent models provide continued availability and supply chain reliability.

Substiute Parts

583299-1

TE Connectivity AMP ConnectorsIn Stock: 762583299-1 Datasheet

Current PartRFQ

583859-9

TE Connectivity AMP ConnectorsIn Stock: 1014583859-9 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 583299-1 is determined by strict equivalence across the following critical parameters:

Position Count: Both the main part and substitute maintain 20 positions, ensuring identical signal path capacity and connector footprint compatibility.

Pitch Specification: The 0.156" (3.96mm) pitch is maintained across all equivalent models, guaranteeing mechanical and electrical alignment with existing card edge designs and PCB layouts.

Card Thickness Accommodation: The 0.055" to 0.070" (1.40mm to 1.78mm) card thickness range is identical, confirming direct mechanical compatibility with existing card assemblies.

Mounting Configuration: Panel mount orientation and flange geometry (top mount opening, unthreaded, 0.128" diameter) remain consistent, allowing direct installation in existing panel cutouts without modification.

Connector Type: Dual edge card edge connector classification is preserved, maintaining functional equivalence for dual-sided card contact applications.

Housing Color: Black color specification is maintained for visual consistency and identification purposes.

The substitute part 583859-9 meets all these critical parameters while offering the advantage of active product status and enhanced material specifications.

Parameter Comparison

Engineering Selection Recommendations

For Obsolete Component Replacement: The 583299-1 is classified as obsolete. The substitute part 583859-9 is active and maintains full mechanical and electrical compatibility across all critical parameters. Selection of 583859-9 ensures continued supply chain access and long-term component availability.

For Compliance Requirements: Both parts maintain RoHS compliance status and EAR99 export classification. The 583859-9 provides additional material specification documentation (Polyester Thermoplastic, Glass Filled with UL94 V-0 flammability rating) and defined operating temperature range (-40°C ~ 85°C), offering enhanced traceability for regulated applications.

For New Designs: The 583859-9 is the appropriate selection for new product development, as it carries active product status and provides complete material and thermal specifications necessary for design validation and manufacturing documentation.

For Existing System Support: Direct substitution of 583859-9 for 583299-1 is mechanically and electrically valid. No design modifications or panel cutout alterations are required.

Frequently Asked Questions (FAQ)

Q: Can 583859-9 directly replace 583299-1 in existing applications?

A: Yes. Both connectors maintain identical position count (20), pitch (0.156"), card thickness accommodation (0.055" to 0.070"), mounting type (panel mount), and flange geometry. Direct mechanical and electrical substitution is valid without design modification.

Q: What is the primary difference between these two parts?

A: The 583299-1 is obsolete with unspecified material properties, while 583859-9 is active with documented material specifications (Polyester Thermoplastic, Glass Filled), UL94 V-0 flammability rating, and defined operating temperature range (-40°C ~ 85°C).

Q: Are there packaging differences between these parts?

A: The 583299-1 packaging is unspecified. The 583859-9 is supplied in bulk packaging. Packaging format does not affect connector functionality or mechanical compatibility.

Q: Do both parts require separate contact purchases?

A: Yes. Both the 583299-1 and 583859-9 are connector housings supplied without contacts. Contacts must be sourced separately and are not included with either part.

Q: Are both parts RoHS compliant?

A: Yes. The 583299-1 is RoHS3 compliant, and the 583859-9 is RoHS compliant. Both meet regulatory requirements for restricted substance elimination.

Q: What is the moisture sensitivity level for these connectors?

A: Both parts carry MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage, handling, or use.

Q: Can these connectors accommodate different card thicknesses?

A: Both connectors accommodate card thicknesses between 0.055" and 0.070" (1.40mm to 1.78mm). Cards outside this range are not compatible.
