TE Connectivity AMP Connectors 5767017-7 Equivalent & Substitute Parts

Part Overview

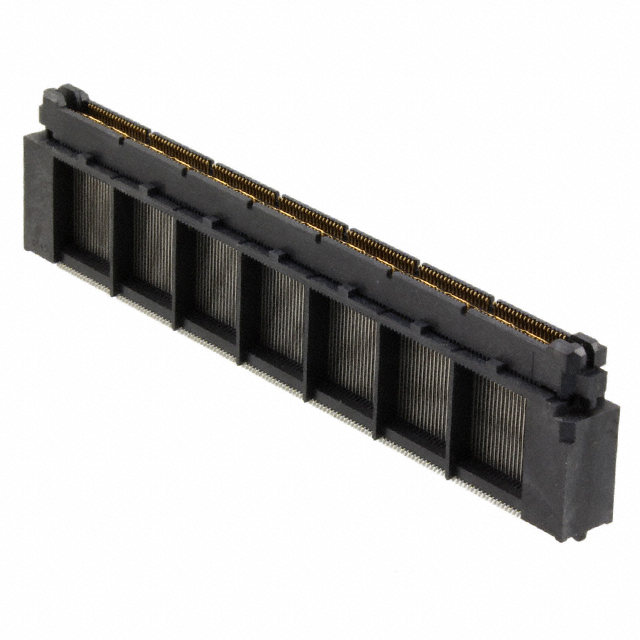

The TE Connectivity AMP Connectors 5767017-7 is a 266 Position Connector Plug with outer shroud contacts designed for surface mount applications. This rectangular connector from the MICTOR series features gold-plated contacts and is classified as obsolete. Due to its obsolete product status, equivalent and substitute parts are available to support ongoing design requirements and procurement needs for 266-position rectangular connector applications requiring surface mount technology with identical electrical and mechanical specifications.

Substiute Parts

5767017-7

TE Connectivity AMP ConnectorsIn Stock: 11025767017-7 Datasheet

Current PartRFQ

5767032-7

TE Connectivity AMP ConnectorsIn Stock: 9955767032-7 Datasheet

SimilarRFQ

2-767017-1

TE Connectivity AMP ConnectorsIn Stock: 11252-767017-1 Datasheet

Parametric EquivalentRFQ

767017-7

TE Connectivity AMP ConnectorsIn Stock: 1070767017-7 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 5767017-7 are determined by strict equivalence across the following critical parameters: connector type (Plug, Outer Shroud Contacts), number of positions (266), pitch (0.025"/0.64mm), number of rows (2), mounting type (Surface Mount), contact finish (Gold), contact finish thickness (30.0µin/0.76µm), and features (Board Guide, Ground Bus Plane). All substitute parts maintain identical electrical and mechanical specifications within these parameters. Variations in product status, RoHS compliance, packaging format, and mated stacking heights do not affect functional interchangeability for applications where these dimensions are not constrained by the end-use design.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: 2-767017-1

The 2-767017-1 is the preferred substitute for the obsolete 5767017-7. Both parts maintain identical electrical and mechanical specifications, including connector type, position count, pitch, mounting type, contact finish, and stacking heights. The 2-767017-1 carries Active product status and ROHS3 compliance, ensuring long-term availability and regulatory alignment with current manufacturing standards.

Secondary Substitute: 767017-7

The 767017-7 provides functional equivalence with identical specifications and Active product status. However, this part is RoHS non-compliant and REACH Affected, which may restrict its use in applications subject to environmental or regulatory compliance requirements.

Alternative Substitute: 5767032-7

The 5767032-7 is functionally equivalent across all critical electrical parameters. This part is Active and RoHS Compliant. The primary distinction is the reduced height above board (0.780" versus 0.892") and different mated stacking heights (20mm, 29mm versus 22.86mm, 31.9mm). Selection of this part requires verification that the reduced profile dimensions are compatible with the end-use application's mechanical constraints.

Frequently Asked Questions (FAQ)

Q: Can the 5767032-7 be used as a direct replacement for the 5767017-7?

A: The 5767032-7 is electrically equivalent but has different mechanical dimensions. The height above board is reduced from 0.892" to 0.780", and mated stacking heights differ. Direct substitution is possible only if the application's mechanical design accommodates these dimensional changes.

Q: What is the difference between the 2-767017-1 and 767017-7?

A: Both parts are electrically and mechanically identical to the 5767017-7. The primary difference is regulatory compliance: 2-767017-1 is ROHS3 Compliant, while 767017-7 is RoHS non-compliant and REACH Affected. For applications requiring environmental compliance, 2-767017-1 is the appropriate selection.

Q: Why is the 5767017-7 listed as obsolete?

A: The 5767017-7 has been discontinued by the manufacturer. Active equivalent parts are available to support existing designs and new procurement requirements.

Q: Are all substitute parts available in the same packaging format?

A: No. The 5767017-7 is supplied without specified packaging, while 5767032-7, 2-767017-1, and 767017-7 are supplied in Tube packaging. Packaging format does not affect electrical or mechanical performance.

Q: What are the key parameters that determine substitution eligibility?

A: Substitution is determined by equivalence in connector type, number of positions (266), pitch (0.025"/0.64mm), number of rows (2), mounting type (Surface Mount), contact finish (Gold), contact finish thickness (30.0µin/0.76µm), and features (Board Guide, Ground Bus Plane). Variations in product status, compliance certifications, and packaging do not affect functional interchangeability unless mechanical dimensions are constrained by the application design.

Q: Is the 2-767017-1 recommended for new designs?

A: Yes. The 2-767017-1 is Active, ROHS3 Compliant, and maintains identical specifications to the obsolete 5767017-7, making it suitable for both replacement and new design applications.
