TE Connectivity AMP Connectors 5767017-1 Equivalent & Substitute Parts

Part Overview

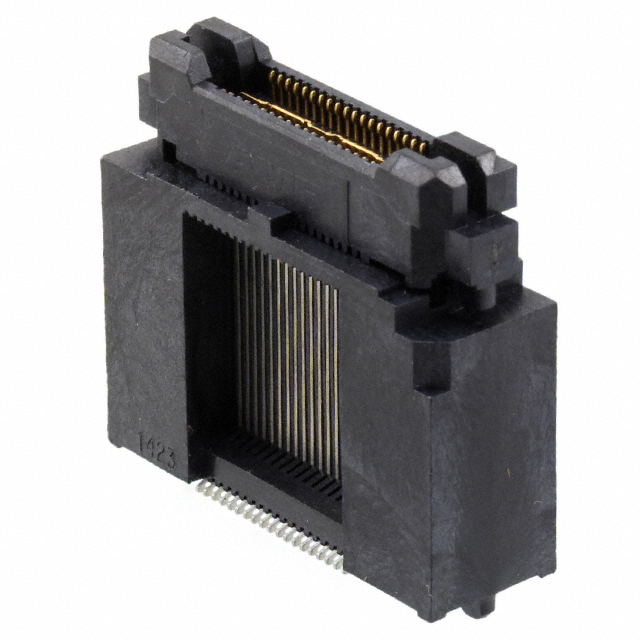

The TE Connectivity AMP Connectors 5767017-1 is a 38-position rectangular connector plug with outer shroud contacts designed for surface mount applications. This MICTOR series connector features gold-plated contacts and is classified as an active product. The connector is used in applications requiring high-density interconnection with precise 0.025" pitch spacing and dual-row configuration. Substitute parts are identified to provide alternative sourcing options when the primary part number is unavailable or when specific compliance requirements necessitate alternative part selection.

Substiute Parts

5767017-1

TE Connectivity AMP ConnectorsIn Stock: 10215767017-1 Datasheet

Current PartRFQ

1-5767017-1

TE Connectivity AMP ConnectorsIn Stock: 11171-5767017-1 Datasheet

Parametric EquivalentRFQ

767017-1

TE Connectivity AMP ConnectorsIn Stock: 659767017-1 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 5767017-1 are identified based on strict parametric equivalence across the following critical dimensions:

Electrical Parameters:

• 38-position connector configuration
• 0.025" (0.64mm) pitch spacing
• 2-row arrangement
• Gold contact finish with 30.0µin (0.76µm) thickness

Mechanical Parameters:

• Plug connector type with outer shroud contacts
• Surface mount mounting type
• Board guide and ground bus plane features
• Height above board: 0.892" (22.66mm)
• Mated stacking heights: 22.86mm and 31.9mm

Environmental Parameters:

• Moisture Sensitivity Level 1 (Unlimited)
• Tube packaging format

Substitute parts maintain identical electrical and mechanical specifications. Variations in compliance status (RoHS, REACH) and inventory availability are noted but do not affect functional interchangeability within the specified parameter set.

Parameter Comparison

Engineering Selection Recommendations

Primary Selection (5767017-1): The 5767017-1 is the recommended primary part number. It carries ROHS3 compliance certification and REACH Unaffected status, meeting the most stringent regulatory requirements for current applications. Current inventory of 972 pieces supports immediate availability.

Secondary Selection (1-5767017-1): The 1-5767017-1 serves as a direct parametric equivalent with identical electrical and mechanical specifications. This part number carries RoHS compliance and maintains MSL 1 rating. Inventory of 1073 pieces provides the highest stock availability. REACH status is listed as Vendor Undefined; clarification with the supplier is necessary for applications with strict REACH requirements.

Tertiary Selection (767017-1): The 767017-1 is functionally equivalent across all electrical and mechanical parameters. This part number is RoHS non-compliant and REACH Affected. Selection of this part is restricted to applications where RoHS3 and REACH compliance are not required. Inventory of 629 pieces is available.

Selection between these three part numbers should be based on regulatory compliance requirements specific to the end application and geographic market. All three parts are electrically and mechanically interchangeable within the specified parameter set.

Frequently Asked Questions (FAQ)

Q: Are the 5767017-1, 1-5767017-1, and 767017-1 electrically interchangeable?

A: Yes. All three part numbers are electrically equivalent. They share identical specifications for position count (38), pitch (0.025"), row configuration (2), contact finish (gold at 30.0µin thickness), and connector type (plug with outer shroud contacts).

Q: What is the difference between these part numbers?

A: The primary differences are regulatory compliance status and inventory levels. The 5767017-1 is ROHS3 Compliant and REACH Unaffected. The 1-5767017-1 is RoHS Compliant with Vendor Undefined REACH status. The 767017-1 is RoHS non-compliant and REACH Affected. All three maintain identical mechanical and electrical parameters.

Q: Can I use 767017-1 as a substitute for 5767017-1 in a new design?

A: Mechanical and electrical substitution is possible. However, the 767017-1 does not meet ROHS3 or REACH compliance requirements. Use of this part number is restricted to applications where these certifications are not mandated.

Q: What does MSL 1 (Unlimited) mean for these connectors?

A: Moisture Sensitivity Level 1 indicates the lowest moisture sensitivity classification. These connectors have unlimited shelf life and do not require special moisture-controlled storage or handling procedures.

Q: Are these connectors suitable for surface mount assembly?

A: Yes. All three part numbers are specified for surface mount mounting type. They feature board guide and ground bus plane characteristics designed for SMD assembly processes.

Q: What are the mated stacking heights?

A: The mated stacking heights are 22.86mm and 31.9mm. These dimensions define the connector height when mated with a corresponding receptacle. The height above board is 0.892" (22.66mm).

Q: Which part number should I specify for a new design requiring RoHS3 compliance?

A: Specify the 5767017-1, which carries ROHS3 Compliant certification. The 1-5767017-1 carries RoHS Compliant status but not specifically ROHS3. The 767017-1 is RoHS non-compliant.

Q: Are these connectors available in different packaging formats?

A: All three part numbers are supplied in tube packaging format as specified in the provided data.
