TE Connectivity 5750823-1 D-Type Receptacle Connector Equivalent & Substitute Parts

Part Overview

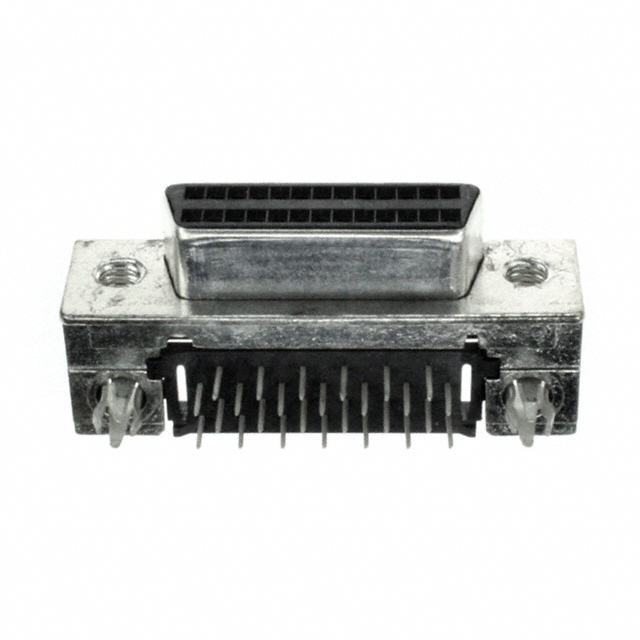

The TE Connectivity 5750823-1 is a 26-position D-Type receptacle connector with female sockets, designed for panel mount and through-hole applications in right-angle configuration. This connector belongs to the AMPLIMITE .050 Slimline series and features solder termination with board lock and shielding capabilities.

The 5750823-1 carries an obsolete product status. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support legacy system maintenance and repairs. Active alternative models provide enhanced availability while maintaining functional compatibility within specified electrical and mechanical parameters.

Substiute Parts

5750823-1

TE Connectivity AMP ConnectorsIn Stock: 7325750823-1 Datasheet

Current PartRFQ

5787082-2

TE Connectivity AMP ConnectorsIn Stock: 15285787082-2 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 5750823-1 with the 5787082-2 is based on strict alignment of the following critical parameters:

Electrical Compatibility Parameters:

• Identical connector style (D-Type)
• Identical connector type (Receptacle, Female Sockets)
• Identical number of positions (26)
• Identical number of rows (2)
• Identical shell size and connector layout (0.050 Pitch x 0.100 Row to Row)
• Identical current rating (1A)
• Identical voltage rating (30V)
• Identical operating temperature range (-55°C to 105°C)
• Identical contact finish (Gold)

Mechanical Compatibility Parameters:

• Identical termination method (Solder)
• Identical connector features (Board Lock, Shielded)
• Both feature through-hole mounting in right-angle configuration
• Both utilize steel shell construction

Regulatory and Compliance Parameters:

• Both are RoHS compliant
• Both carry REACH Unaffected status
• Both share identical ECCN (EAR99) and HTSUS (8536.69.4040) classifications
• Both feature unlimited moisture sensitivity level (MSL 1)

The 5787082-2 represents an active product status alternative within the AMPLIMITE .050 series family, providing functional equivalence for the obsolete 5750823-1.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: TE Connectivity 5787082-2

The 5787082-2 is the qualified substitute for the obsolete 5750823-1. Selection of this alternative is supported by the following engineering factors:

Product Status Consideration: The 5787082-2 maintains active product status with current manufacturing and distribution support, whereas the 5750823-1 is obsolete. This transition ensures long-term supply chain viability and eliminates procurement risk associated with end-of-life components.

Regulatory Compliance: Both parts maintain full RoHS compliance and REACH Unaffected status. The 5787082-2 carries UL94 V-0 material flammability rating, providing enhanced documentation of dielectric material performance characteristics.

Electrical and Mechanical Equivalence: The 5787082-2 maintains identical electrical ratings (1A current, 30V voltage) and mechanical configuration (26-position, 2-row, 0.050 pitch layout) with identical operating temperature range (-55°C to 105°C). Both connectors feature solder termination, board lock, and shielding.

Physical Mounting Consideration: The primary difference between parts involves mounting configuration. The 5750823-1 specifies panel mount capability, while the 5787082-2 specifies board edge mounting. Both support through-hole, right-angle installation. Application-specific mounting requirements must be evaluated during component selection.

Shell Finish Variation: The 5750823-1 features tin-plated steel shell, while the 5787082-2 features nickel-plated steel shell. Both finishes provide corrosion resistance appropriate for the specified operating environment. Contact finish remains gold in both configurations.

Frequently Asked Questions (FAQ)

Q: Can the 5787082-2 directly replace the 5750823-1 in existing designs?

A: The 5787082-2 provides electrical and functional equivalence for the 5750823-1 across all critical parameters including connector type, position count, pitch, current and voltage ratings, and operating temperature range. Mounting configuration differences (panel mount versus board edge) require evaluation against specific application requirements. Both connectors support through-hole, right-angle solder termination.

Q: What is the significance of the shell finish difference between these parts?

A: The 5750823-1 features tin-plated steel shell, while the 5787082-2 features nickel-plated steel shell. Both finishes provide appropriate corrosion resistance for the specified operating environment. Selection between these finishes depends on application-specific environmental exposure and compatibility requirements with mating connector materials.

Q: Are there packaging differences between the 5750823-1 and 5787082-2?

A: The 5787082-2 is supplied in tube packaging, while packaging information for the 5750823-1 is not specified in the provided data. Packaging differences do not affect connector functionality or electrical performance.

Q: What is the difference between ROHS3 and RoHS compliance status?

A: The 5750823-1 carries ROHS3 Compliant designation, while the 5787082-2 carries RoHS Compliant designation. Both parts meet RoHS requirements. ROHS3 represents a specific revision level of RoHS compliance documentation. Both parts are suitable for applications requiring RoHS compliance.

Q: Do both connectors support the same dielectric material specifications?

A: The 5750823-1 specifies Liquid Crystal Polymer (LCP) dielectric material, while the 5787082-2 specifies Thermoplastic dielectric material. Both materials support the specified operating temperature range (-55°C to 105°C) and electrical ratings. The 5787082-2 provides UL94 V-0 material flammability rating documentation.

Q: Are the contact materials identical between these connectors?

A: Contact material for the 5750823-1 is not specified in the provided data. The 5787082-2 specifies Phosphor Bronze contact material. Both connectors feature gold contact finish. Contact material differences do not affect electrical compatibility within the specified current and voltage ratings.

Q: What inventory availability exists for these parts?

A: The 5750823-1 shows 699 pieces in stock as new original inventory. The 5787082-2 shows 1451 pieces in stock as new original inventory. The 5787082-2 provides enhanced availability due to active product status.
