TE Connectivity 5747468-2 D-Sub Connector Equivalent & Substitute Parts

Part Overview

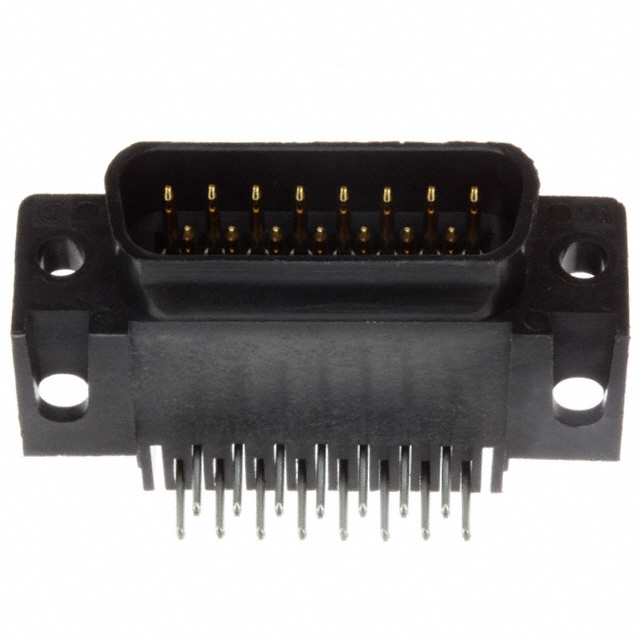

The TE Connectivity 5747468-2 is a 15-position D-Sub plug connector with right-angle solder termination, designed for through-hole mounting applications. This connector belongs to the AMPLIMITE HD-20 series and features male pins with gold-plated brass contacts rated for 6A at 125V operation across a temperature range of -55°C to 105°C.

The 5747468-2 is classified as obsolete. Locating equivalent and substitute components is necessary to support legacy system maintenance, repair, and production continuity where original inventory is depleted or unavailable.

Key Parameters

Parameter	Value
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Number of Positions	15
Number of Rows	2
Shell Size, Connector Layout	2 (DA, A)
Mounting Type	Through Hole, Right Angle
Termination Method	Solder
Current Rating	6A
Voltage Rating	125V
Operating Temperature Range	-55°C to 105°C
Contact Material	Brass
Contact Finish	Gold
Material Flammability Rating	UL94 V-0

Substitute Part Grouping Explanation

Substitution of the 5747468-2 is based on strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

Connector style: D-Sub
Connector type: Plug with male pins
Position count: 15 positions
Row configuration: 2 rows
Shell size and layout: 2 (DA, A)
Mounting configuration: Through hole, right angle
Termination method: Solder
Current rating: 6A minimum
Voltage rating: 125V minimum
Operating temperature range: -55°C to 105°C minimum
Contact material: Brass
Contact finish: Gold
Flammability compliance: UL94 V-0

The substitute part TE Connectivity 5745352-4 satisfies all mandatory matching parameters. Both connectors are manufactured by TE Connectivity AMP Connectors and maintain electrical and mechanical compatibility within the specified operating envelope.

Parameter Comparison

Parameter	5747468-2 (Main Part)	5745352-4 (Substitute)	Compatibility
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	Match
Connector Style	D-Sub	D-Sub	Match
Connector Type	Plug, Male Pins	Plug, Male Pins	Match
Number of Positions	15	15	Match
Number of Rows	2	2	Match
Shell Size, Connector Layout	2 (DA, A)	2 (DA, A)	Match
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Match
Termination	Solder	Solder	Match
Current Rating (Amps)	6A	6A	Match
Voltage Rating	125V	125V	Match
Operating Temperature Range	-55°C to 105°C	-55°C to 105°C	Match
Contact Material	Brass	Brass	Match
Contact Finish	Gold	Gold	Match
Material Flammability Rating	UL94 V-0	UL94 V-0	Match
Product Status	Obsolete	Active	Substitute is active production
RoHS Status	ROHS3 Compliant	RoHS Compliant	Both compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	Match

Engineering Selection Recommendations

The TE Connectivity 5745352-4 is the direct substitute for the obsolete 5747468-2. Both connectors meet identical electrical specifications, mechanical dimensions, and regulatory compliance requirements.

Selection Basis:

The 5745352-4 is classified as active production status, ensuring ongoing availability and supply chain continuity. Both parts maintain ROHS3/RoHS compliance and carry identical moisture sensitivity ratings. The substitute part is manufactured by the same original equipment manufacturer (TE Connectivity AMP Connectors) and maintains full compatibility across all critical electrical and mechanical parameters.

The 5745352-4 is available in bulk packaging with current inventory of 1097 pieces, supporting both prototype and production-volume applications.

Frequently Asked Questions (FAQ)

Q: Can the 5745352-4 be used as a direct replacement for the 5747468-2 in existing designs?

A: Yes. Both connectors share identical connector style, pin count, shell size, mounting configuration, electrical ratings, and operating temperature range. The 5745352-4 is electrically and mechanically compatible with applications designed for the 5747468-2.

Q: What is the difference in backset spacing between these two connectors?

A: The 5747468-2 has a backset spacing of 0.590" (14.99mm), while the 5745352-4 has a backset spacing of 0.545" (13.84mm). This dimensional difference does not affect connector mating or electrical performance but may impact PCB layout considerations in space-constrained applications.

Q: Are there differences in the flange features between these connectors?

A: Yes. The 5747468-2 features an unthreaded housing/shell flange, while the 5745352-4 includes mating-side standard screws (4-40) with grounding indents and mounting brackets. The 5745352-4 provides enhanced mechanical retention and grounding capability.

Q: Do both connectors meet the same regulatory compliance standards?

A: Both connectors are UL94 V-0 rated and RoHS compliant. The 5747468-2 is ROHS3 compliant, and the 5745352-4 is RoHS compliant. Both meet the same flammability and environmental compliance requirements for industrial and commercial applications.

Q: What is the difference in product status, and why does it matter?

A: The 5747468-2 is obsolete, meaning it is no longer in active production. The 5745352-4 is active production status, ensuring reliable supply availability, technical support, and long-term component sourcing for new designs and legacy system maintenance.

Q: Are the contact materials and finishes identical?

A: Yes. Both connectors use brass contacts with gold plating. The contact finish thickness is specified as flash for the 5747468-2 and is not specified for the 5745352-4, but both maintain gold contact finish for reliable signal transmission and corrosion resistance.

Q: What packaging options are available for the 5745352-4?

A: The 5745352-4 is supplied in bulk packaging. The 5747468-2 packaging specification is not provided in the available data.
