Amphenol ICC 5730140 D-Sub 14-Position Plug Connector - Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 5730140 is a 14-position D-Sub plug connector with solder cup termination, designed for free-hanging (in-line) applications. This connector features center strip contacts, gold-plated terminals, and includes backshell, bail lock, and cable clamp features. The product is classified as obsolete, making identification of functionally equivalent substitute parts essential for ongoing system support and component procurement.

Substiute Parts

5730140

Amphenol ICC (Commercial Products)In Stock: 8005730140 Datasheet

Current PartRFQ

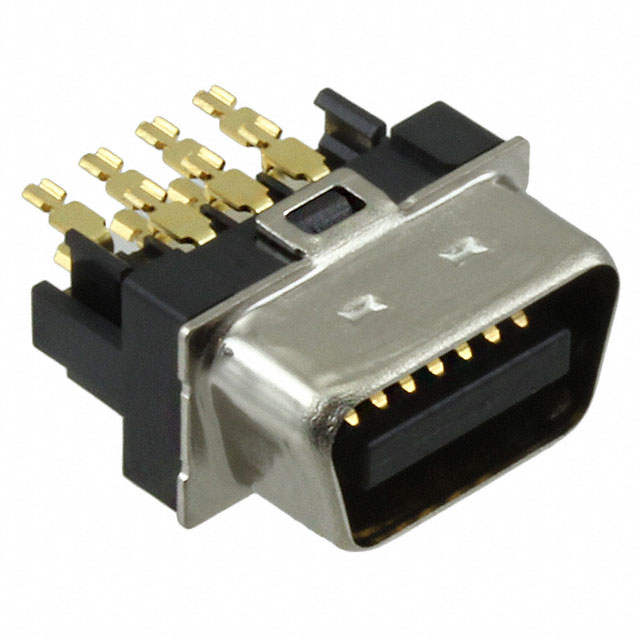

DF02P014F22A1

JAE ElectronicsIn Stock: 869DF02P014F22A1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Amphenol ICC 5730140 must satisfy the following criteria based on allowed electrical and mechanical parameters:

Critical Matching Parameters:

• Connector type: Plug
• Number of positions: 14
• Number of rows: 2
• Mounting type: Free Hanging (In-Line)
• Connector style: Center Strip Contacts
• Contact finish: Gold
• RoHS compliance: Yes

Acceptable Variation Parameters:

• Termination method: Solder or Solder Cup (both represent wire attachment via solder)
• Contact finish thickness: May vary within industry standards
• Packaging format: May differ (Tray vs. other formats)
• Product status: Active status preferred for ongoing availability

The JAE Electronics DF02P014F22A1 qualifies as a substitute based on matching all critical parameters while maintaining functional equivalence in D-Sub 14-position plug connector applications.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: JAE Electronics DF02P014F22A1

The DF02P014F22A1 is the designated substitute for the obsolete Amphenol ICC 5730140. Selection rationale:

1. Functional Equivalence: All critical electrical and mechanical parameters match the original part specification, including 14-position plug configuration, center strip contact geometry, and free-hanging mounting.

2. Regulatory Compliance: Both parts maintain RoHS compliance and identical Moisture Sensitivity Level (MSL 1), ensuring compatibility with current manufacturing and environmental standards.

3. Product Status: The JAE Electronics part carries Active status, providing assured long-term availability and supply chain continuity compared to the obsolete Amphenol ICC part.

4. Contact Finish Specification: While contact finish thickness differs (3.94µin versus 20.0µin), both specifications fall within acceptable gold plating ranges for D-Sub connector applications and maintain equivalent electrical performance.

5. Termination Compatibility: Both solder cup and solder termination methods achieve equivalent wire attachment through solder bonding, with no functional difference in the resulting connection.

Frequently Asked Questions (FAQ)

Q: Can the JAE Electronics DF02P014F22A1 directly replace the Amphenol ICC 5730140 in existing designs?

A: Yes. The DF02P014F22A1 matches all critical parameters: 14-position plug configuration, center strip contacts, free-hanging mounting, and gold contact finish. Both parts are RoHS compliant with identical MSL ratings.

Q: What is the difference between "Solder Cup" and "Solder" termination?

A: Both termination methods use solder to attach wires to the connector. Solder Cup refers to a cup-shaped terminal designed to accept wire insertion before soldering. Solder termination indicates the same functional result through solder bonding. The electrical and mechanical performance are equivalent.

Q: Why does the contact finish thickness differ between these parts?

A: Contact finish thickness (20.0µin versus 3.94µin) represents manufacturing variation within acceptable industry standards for D-Sub connectors. Both thicknesses provide adequate gold plating for corrosion resistance and electrical conductivity in standard applications.

Q: Is the JAE Electronics part available in the same packaging as the original?

A: The JAE Electronics DF02P014F22A1 is supplied in Tray packaging, while the original Amphenol ICC part packaging is not specified. Packaging format does not affect connector functionality or compatibility.

Q: Are there any compliance or certification differences between these parts?

A: Both parts are RoHS compliant and carry identical ECCN (EAR99) and Moisture Sensitivity Level (MSL 1) classifications. No compliance differences exist.

Q: What inventory status should be considered when selecting between these parts?

A: The JAE Electronics DF02P014F22A1 carries Active product status with 856 units in stock, providing supply assurance. The original Amphenol ICC 5730140 is obsolete with 769 units remaining in inventory. For new designs or ongoing production, the active substitute is the appropriate selection.
