Amphenol ICC 5710140 D-Sub 14-Position Plug Connector Equivalent & Substitute Parts

Part Overview

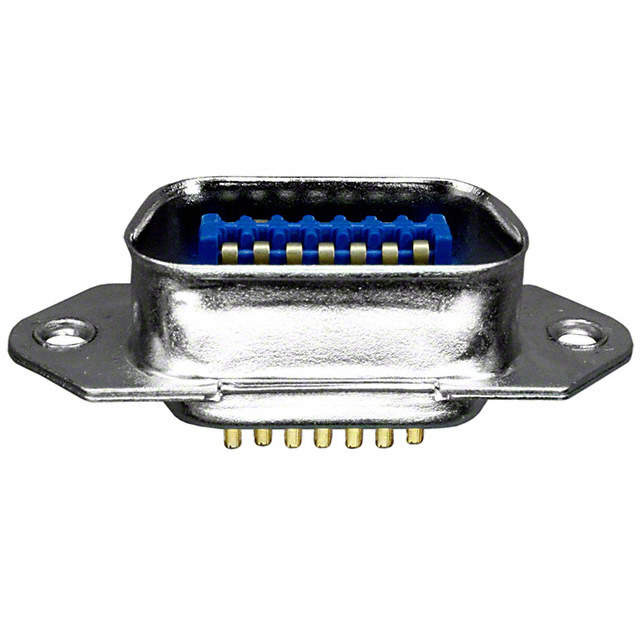

The Amphenol ICC 5710140 is a 14-position D-Sub plug connector with solder cup termination, designed for free-hanging (in-line) applications. This connector features center strip contacts with gold-plated contact finish and unthreaded housing/shell flange. The part is classified as obsolete, making identification of equivalent and substitute components necessary for ongoing system maintenance, repair, and new design implementations where legacy compatibility is required.

Substiute Parts

5710140

Amphenol ICC (Commercial Products)In Stock: 8345710140 Datasheet

Current PartRFQ

111-014-103L001

NorComp Inc.In Stock: 1929111-014-103L001 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Amphenol ICC 5710140 is determined by strict equivalence across the following critical parameters:

• Connector Type: Must be Plug configuration
• Position Count: Must be 14 positions
• Row Configuration: Must be 2 rows
• Mounting Style: Must be Free Hanging (In-Line)
• Termination Type: Must be Solder Cup
• Connector Style: Must be Center Strip Contacts
• Flange Configuration: Must be Housing/Shell (Unthreaded)
• Contact Finish: Must be Gold

The NorComp Inc. 111-014-103L001 meets all these critical parameters and qualifies as a direct substitute. Both connectors are D-Sub, D-shaped connector category components with identical mechanical and electrical interface specifications.

Parameter Comparison

Engineering Selection Recommendations

The NorComp Inc. 111-014-103L001 is the qualified substitute for the Amphenol ICC 5710140 based on the following engineering criteria:

Mechanical Compatibility: Both connectors share identical mechanical specifications across all critical dimensions: 14-position, 2-row configuration with center strip contacts, free-hanging mounting, and unthreaded housing/shell flange.

Electrical Compatibility: Both connectors feature gold contact finish and solder cup termination, ensuring equivalent electrical performance and signal integrity for D-Sub applications.

Compliance Status: The NorComp part carries ROHS3 compliance, which supersedes the RoHS compliance of the Amphenol part. Both parts share identical ECCN (EAR99) and HTSUS (8536.69.8000) classifications, confirming regulatory equivalence.

Product Availability: The Amphenol ICC 5710140 is obsolete. The NorComp Inc. 111-014-103L001 is active and maintains higher inventory availability (1919 pieces in stock versus 735 pieces for the obsolete Amphenol part), supporting long-term supply chain continuity.

Frequently Asked Questions (FAQ)

Q: Can the NorComp 111-014-103L001 directly replace the Amphenol 5710140 in existing applications?

A: Yes. Both connectors are mechanically and electrically equivalent across all critical parameters: 14-position plug configuration, 2-row center strip contact arrangement, free-hanging mounting, solder cup termination, and gold contact finish. The connectors are interchangeable for D-Sub applications.

Q: What is the significance of the SCSI designation in the NorComp part description?

A: The SCSI designation indicates the NorComp 111-014-103L001 is designed for SCSI (Small Computer System Interface) applications. However, the mechanical and electrical specifications remain identical to the Amphenol part, making it suitable for any application requiring a 14-position D-Sub plug with solder cup termination.

Q: Are there compliance differences between the two parts?

A: The NorComp part carries ROHS3 compliance, which represents a more current regulatory standard than the RoHS compliance of the Amphenol part. Both parts share identical ECCN and HTSUS classifications. The NorComp part is REACH Unaffected, while the Amphenol part does not specify REACH status in the provided data.

Q: What is the difference between the contact finish specifications?

A: The Amphenol part specifies gold contact finish at 20.0µin (0.51µm) thickness. The NorComp part specifies gold contact finish as "Flash" (a thin electroplated layer). Both finishes provide gold contact surfaces; the difference is in thickness specification methodology rather than functional performance for solder cup termination.

Q: Does packaging differ between these parts?

A: The Amphenol part packaging is not specified in the provided data. The NorComp part is packaged in Tray format. Packaging differences do not affect connector compatibility but may influence handling, storage, and logistics considerations.

Q: Why is the Amphenol part listed as obsolete?

A: Product obsolescence indicates the Amphenol ICC 5710140 is no longer in active production. The NorComp 111-014-103L001 provides an active, currently manufactured alternative with equivalent specifications and superior long-term availability.
