LED Circuit Board Indicator 5710113F Equivalent & Substitute Parts

Part Overview

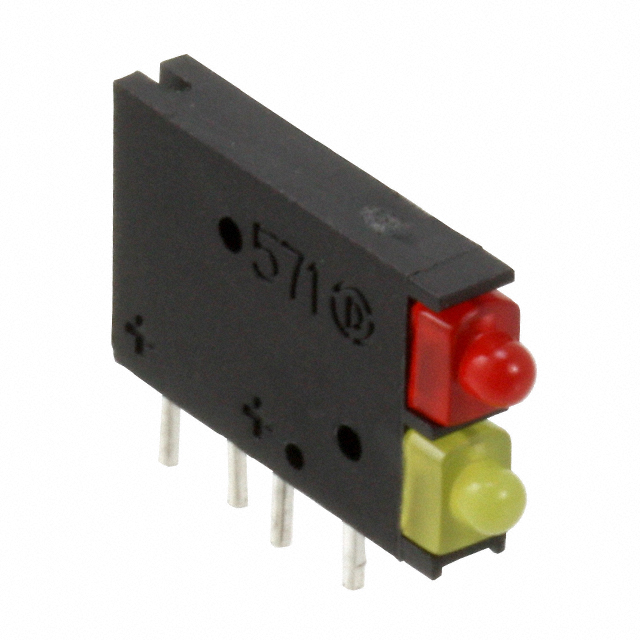

The Dialight 5710113F is a dual-level LED circuit board indicator featuring integrated red and yellow LEDs in a 2mm through-hole, right-angle configuration. This component is designed for applications requiring simultaneous dual-color status indication with independent control of red (627nm) and yellow (590nm) wavelengths. The part maintains Active product status with full RoHS3 and REACH compliance, ensuring suitability for current manufacturing environments.

Substitute parts are identified to provide equivalent functionality when the primary part number becomes unavailable or when inventory constraints require alternative sourcing from the same manufacturer's product line.

Substiute Parts

5710113F

DialightIn Stock: 11815710113F Datasheet

Current PartRFQ

5710113100F

DialightIn Stock: 18825710113100F Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 5710113F is determined by strict equivalence across all electrical and mechanical parameters. The substitute part 5710113100F qualifies as a direct equivalent based on the following criteria:

Critical Matching Parameters:

• Identical dual-color LED configuration (Red + Yellow)
• Matching wavelength specifications (627nm Red, 590nm Yellow)
• Equivalent voltage ratings (2V Red, 2.1V Yellow)
• Identical forward current requirements (30mA Red, 30mA Yellow)
• Matching luminous intensity (15mcd Red, 8mcd Yellow)
• Identical viewing angle (70°)
• Same physical form factor (2.00mm diameter, round domed lens)
• Identical mounting method (Through Hole, Right Angle)
• Same series designation (571)
• Equivalent compliance certifications (RoHS3, REACH Unaffected)

Both parts share the same base product number (5710113), confirming their functional interchangeability within the Dialight 571 series.

Parameter Comparison

Engineering Selection Recommendations

Both the 5710113F and 5710113100F are Active products with full RoHS3 compliance and REACH Unaffected status, making them suitable for current manufacturing and regulatory requirements. Selection between these parts should be based on inventory availability and lead time considerations, as they are functionally and electrically equivalent.

The MSL rating of 1 (Unlimited) for both parts indicates minimal moisture sensitivity, eliminating special storage or handling requirements during assembly operations. Both parts carry identical ECCN (EAR99) and HTSUS (8541.41.0000) classifications, ensuring consistent export and tariff treatment.

Frequently Asked Questions (FAQ)

Q: Can 5710113100F be used as a direct replacement for 5710113F?

A: Yes. Both parts are functionally equivalent with identical electrical specifications, physical dimensions, mounting configuration, and compliance certifications. No circuit modifications or design changes are required.

Q: Are there any differences in performance between these two part numbers?

A: No. The parts share identical wavelength outputs (627nm Red, 590nm Yellow), voltage ratings (2V Red, 2.1V Yellow), forward current requirements (30mA each), and luminous intensity (15mcd Red, 8mcd Yellow).

Q: Do these parts require different PCB footprints?

A: No. Both parts use identical through-hole, right-angle mounting with 2.00mm diameter lens form factors. PCB layouts and hole patterns are interchangeable.

Q: What is the significance of the different part number suffixes?

A: The suffix variation (F vs. 100F) represents different packaging or distribution batches within the Dialight 571 series, but does not indicate functional or electrical differences. Both parts share the same base product number (5710113).

Q: Are moisture sensitivity precautions necessary during assembly?

A: No. Both parts carry MSL rating 1 (Unlimited), indicating they do not require special moisture control measures during storage, handling, or assembly.

Q: Can these parts be used in applications requiring RoHS compliance?

A: Yes. Both parts are ROHS3 Compliant and REACH Unaffected, meeting current environmental and regulatory requirements for restricted substance control.
