567UER6R3MFF Equivalent & Substitute Parts

Part Overview

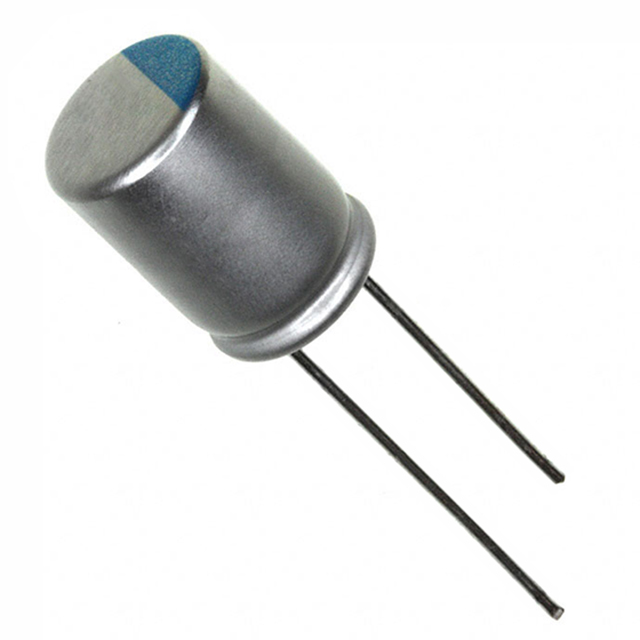

The 567UER6R3MFF is a 560 µF aluminum polymer capacitor manufactured by Cornell Dubilier / Illinois Capacitor, rated at 6.3 V with through-hole radial mounting. This component is designed for decoupling applications and operates across a temperature range of -55°C to 105°C with a rated lifetime of 5000 hours at 105°C. The part maintains Active product status and is RoHS3 compliant. Substitute parts are identified when equivalent electrical and mechanical parameters are required for design flexibility, inventory management, or supply chain continuity.

Substiute Parts

567UER6R3MFF

Cornell Dubilier / Illinois CapacitorIn Stock: 731567UER6R3MFF Datasheet

Current PartRFQ

PLS0J561MCO6

NichiconIn Stock: 1076PLS0J561MCO6 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 567UER6R3MFF is determined by strict equivalence across the following critical parameters:

Electrical Parameters:

• Capacitance value: 560 µF (exact match required)
• Voltage rating: 6.3 V (exact match required)
• Tolerance: ±20% (exact match required)
• ESR: 8 mOhm (exact match required)
• Lifetime: 5000 Hrs @ 105°C (exact match required)
• Operating temperature range: -55°C to 105°C (exact match required)

Mechanical Parameters:

• Mounting type: Through Hole (exact match required)
• Package / Case: Radial, Can (exact match required)
• Lead spacing: 0.138" (3.50 mm) (exact match required)
• Physical dimensions: 0.315" Dia (8.00 mm), Height 0.354" (9.00 mm) (exact match required)

Compliance Parameters:

• RoHS3 Compliant (required)
• REACH Unaffected (required)

The substitute part PLS0J561MCO6 from Nichicon meets all critical electrical and mechanical parameters, enabling direct functional replacement in the 567UER6R3MFF application.

Parameter Comparison

Engineering Selection Recommendations

Both the 567UER6R3MFF and PLS0J561MCO6 are Active product status components with full RoHS3 and REACH compliance. Selection between these parts is based on availability and supply chain requirements rather than electrical or mechanical performance differences. The PLS0J561MCO6 offers higher ripple current capability at high frequency (5 A @ 100 kHz versus 4.8 A @ 100 kHz), which provides additional design margin in decoupling applications. Both parts are suitable for direct substitution in through-hole PCB designs requiring 560 µF aluminum polymer capacitors at 6.3 V.

Frequently Asked Questions (FAQ)

Q: Can the PLS0J561MCO6 be used as a direct replacement for the 567UER6R3MFF?

A: Yes. The PLS0J561MCO6 meets all critical electrical parameters (capacitance, voltage, tolerance, ESR, lifetime, temperature range) and mechanical parameters (lead spacing, physical dimensions, mounting type, package style). Both components are RoHS3 compliant and REACH unaffected.

Q: Are there any differences in ripple current ratings between these parts?

A: The PLS0J561MCO6 provides 5 A @ 100 kHz ripple current capability compared to 4.8 A @ 100 kHz for the 567UER6R3MFF. This represents a minor performance advantage with no compatibility concerns for substitution.

Q: Do these capacitors require any PCB layout modifications when substituting?

A: No. Both parts share identical lead spacing (0.138" / 3.50 mm), physical dimensions (0.315" Dia / 8.00 mm), and height (0.354" / 9.00 mm). PCB footprints and through-hole patterns remain unchanged.

Q: What applications are these capacitors suitable for?

A: The 567UER6R3MFF is specified for decoupling applications. The PLS0J561MCO6 is rated for general purpose use. Both are compatible with decoupling circuit requirements.

Q: Are moisture sensitivity considerations different between these parts?

A: The 567UER6R3MFF carries MSL 1 (Unlimited) rating. The PLS0J561MCO6 lists MSL as Not Applicable. Both are suitable for standard PCB assembly processes without special moisture handling requirements.
