LED Circuit Board Indicator 5670H5_5 Equivalent & Substitute Parts

Part Overview

The 5670H5_5 is a dual-level LED circuit board indicator manufactured by Visual Communications Company (VCC). This component features a 5mm, T-1 3/4 through-hole right-angle configuration with green diffused, tinted lens and domed top. The part operates at 2.2V with 10mA current consumption and delivers 10 millicandela output at a peak wavelength of 563nm.

The 5670H5_5 is classified as obsolete. Locating equivalent substitute parts is necessary to maintain design continuity, ensure component availability, and support ongoing production requirements. Active alternative components with compatible electrical and mechanical specifications are available from qualified manufacturers.

Substiute Parts

5670H5_5

Visual Communications Company - VCCIn Stock: 9865670H5_5 Datasheet

Current PartRFQ

5520222010F

DialightIn Stock: 12495520222010F Datasheet

DirectRFQ

5520222F

DialightIn Stock: 18335520222F Datasheet

DirectRFQ

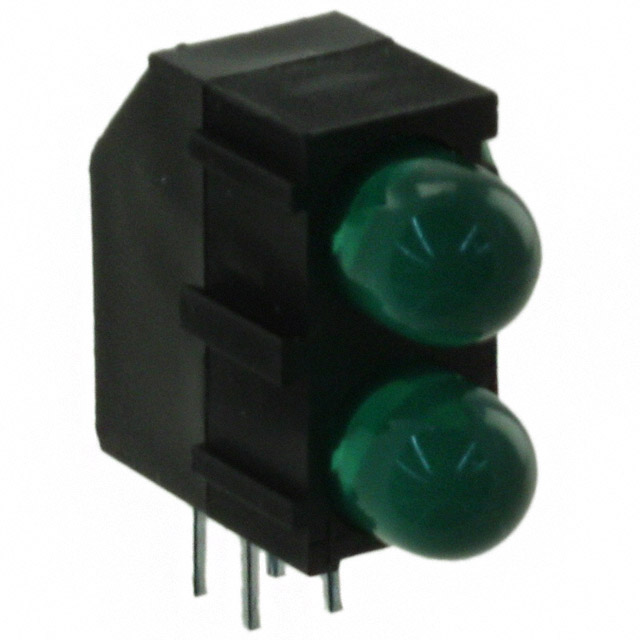

WP1503EB/2GD

KingbrightIn Stock: 2043WP1503EB/2GD Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 5670H5_5 are classified into two categories based on electrical and mechanical compatibility:

Direct Substitutes (Dialight 5520222F and 5520222010F): These parts maintain identical mechanical form factors (5mm, T-1 3/4, through-hole right-angle, round domed lens, 2-high configuration) and identical optical characteristics (green color, 563nm peak wavelength, diffused tinted lens). Both operate at 2.1V with 10mA current and 10mcd output. These components are functionally interchangeable with the 5670H5_5 in applications where the 0.1V voltage differential and active product status are acceptable. Both Dialight parts are currently in active production status.

Similar Substitute (Kingbright WP1503EB/2GD): This part shares the same mechanical envelope (5mm, T-1 3/4, through-hole right-angle, round domed lens, 2-high configuration) and color specification (green, x 2). However, it operates at higher electrical parameters: 2.2V voltage (matching the main part), 20mA current (double the main part), and delivers 50mcd output (five times the main part). The peak wavelength is 565nm, a 2nm shift from the 5670H5_5. This part functions as a higher-brightness alternative suitable for applications requiring increased luminous intensity within the same physical footprint.

All substitute parts comply with ROHS3, maintain MSL 1 rating, and carry REACH Unaffected status, matching the main part's regulatory profile.

Parameter Comparison

Engineering Selection Recommendations

For Direct Replacement (Dialight 5520222F or 5520222010F):

Select either Dialight part when the design requires functional equivalence to the 5670H5_5 with active product status and ongoing manufacturer support. Both Dialight alternatives maintain identical optical output (10mcd, 563nm), current consumption (10mA), and mechanical configuration. The 0.1V voltage reduction (2.1V versus 2.2V) is within typical LED forward voltage tolerance ranges and does not constitute a functional incompatibility. Both parts are currently in active production with substantial inventory availability (1171 and 1729 units respectively). Selection between 5520222F and 5520222010F depends on packaging requirements; both are supplied in bulk packaging.

For Higher-Brightness Applications (Kingbright WP1503EB/2GD):

Select the Kingbright WP1503EB/2GD when the application requires increased luminous intensity within the same physical footprint. This part delivers 50mcd output at 20mA current consumption, providing five times the brightness of the 5670H5_5 while maintaining identical voltage rating (2.2V) and mechanical envelope. The 2nm wavelength shift (565nm versus 563nm) remains within the green spectrum and does not introduce perceptible color differentiation in typical circuit board indicator applications. This part is currently in active production with 1950 units in stock.

All substitute options maintain full regulatory compliance (ROHS3, REACH Unaffected) and identical moisture sensitivity ratings, ensuring compatibility with existing manufacturing and assembly processes.

Frequently Asked Questions (FAQ)

Q: Can the Dialight 5520222F directly replace the 5670H5_5 without circuit modification?

A: Yes. The Dialight 5520222F maintains identical mechanical mounting (5mm through-hole right-angle), identical optical output (10mcd, 563nm green), and identical current consumption (10mA). The 0.1V forward voltage difference (2.1V versus 2.2V) falls within standard LED forward voltage tolerance and does not require circuit redesign.

Q: What is the difference between Dialight 5520222F and 5520222010F?

A: Both parts are electrically and optically identical. The primary difference is packaging designation. Both operate at 2.1V, 10mA, deliver 10mcd output at 563nm, and feature identical mechanical specifications. Selection depends on packaging and procurement requirements.

Q: When should I select the Kingbright WP1503EB/2GD instead of the Dialight alternatives?

A: Select the Kingbright part when the application requires higher brightness output. The WP1503EB/2GD delivers 50mcd (five times brighter) at 20mA current consumption. This is appropriate for applications where the 5670H5_5's 10mcd output is insufficient for visibility or detection requirements. The identical 2.2V voltage rating and mechanical envelope allow direct physical substitution.

Q: Are there viewing angle differences between these parts?

A: Yes. The 5670H5_5 does not specify a viewing angle. The Dialight parts (5520222F and 5520222010F) specify 65° viewing angle, while the Kingbright WP1503EB/2GD specifies 60° viewing angle. These differences reflect manufacturer specifications for the diffused, tinted lens design and do not indicate incompatibility; all parts use identical round domed lens geometry.

Q: Do all substitute parts meet the same regulatory requirements?

A: Yes. All substitute parts (Dialight 5520222F, 5520222010F, and Kingbright WP1503EB/2GD) are ROHS3 compliant, REACH Unaffected, carry MSL 1 (Unlimited) rating, and share identical ECCN (EAR99) and HTSUS (8541.41.0000) classifications with the 5670H5_5.

Q: What is the inventory status of these substitute parts?

A: All substitute parts are currently in active production with substantial stock availability: Dialight 5520222F (1729 units), Dialight 5520222010F (1171 units), and Kingbright WP1503EB/2GD (1950 units). The 5670H5_5 (942 units) is obsolete and no longer manufactured.

Q: Can I use the Kingbright WP1503EB/2GD in a circuit designed for 10mA operation?

A: The Kingbright WP1503EB/2GD requires 20mA for rated brightness output. If the circuit is designed to supply only 10mA, the part will operate at reduced brightness. The part will not be damaged at 10mA operation, but luminous output will be lower than specified. For applications requiring 10mA operation, select the Dialight 5520222F or 5520222010F.
