Circuit Breaker Thermal Magnetic 2.5A 250VAC 80VDC Phoenix Contact 5650113

Part Overview

The Phoenix Contact 5650113 is a single-pole thermal magnetic circuit breaker rated for 2.5A at 250V AC and 80V DC, designed for DIN rail mounting with push-to-reset actuation. This component is classified as Active product status and is RoHS compliant. Alternative equivalent parts may be required due to supply chain considerations, regional availability, or inventory constraints while maintaining identical electrical and mechanical specifications.

Substiute Parts

5650113

Phoenix ContactIn Stock: 9935650113 Datasheet

Current PartRFQ

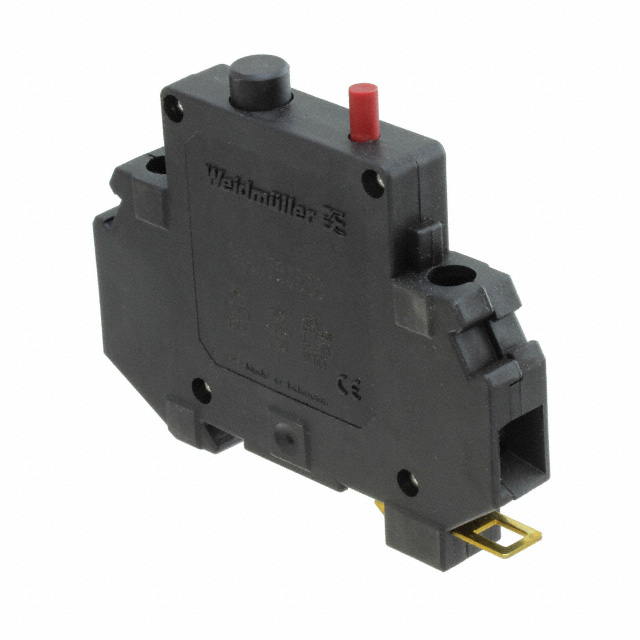

7940102159

WeidmüllerIn Stock: 11867940102159 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 5650113 is determined by strict equivalence across the following critical parameters:

• Current Rating: 2.5A (exact match required)
• Voltage Rating AC: 250V (exact match required)
• Voltage Rating DC: 80V (exact match required)
• Breaker Type: Thermal Magnetic (exact match required)
• Mounting Type: DIN Rail (exact match required)
• Number of Poles: 1 (exact match required)
• Actuator Type: Push to Reset (exact match required)
• RoHS Compliance: Required

The Weidmüller 7940102159 meets all substitution criteria as a parametric equivalent, sharing identical electrical ratings, mechanical configuration, and compliance status.

Parameter Comparison

Engineering Selection Recommendations

Both the Phoenix Contact 5650113 and Weidmüller 7940102159 are Active status products with full RoHS compliance. The Weidmüller part carries additional certifications including CSA C22.2 No 235, UL1077, and VDE approval, providing expanded regulatory coverage for applications requiring these specific standards. Selection between these equivalents should be based on supply availability, lead time requirements, and regional certification needs for the target application.

Frequently Asked Questions (FAQ)

Q: Can the Weidmüller 7940102159 be used as a direct replacement for the Phoenix Contact 5650113?

A: Yes. Both parts are parametric equivalents with identical current ratings (2.5A), voltage ratings (250V AC / 80V DC), thermal magnetic operation, single-pole configuration, push-to-reset actuation, and DIN rail mounting. Both are RoHS compliant and Active status products.

Q: What are the critical parameters that determine substitution eligibility?

A: Substitution requires exact matching of current rating, AC voltage rating, DC voltage rating, breaker type, mounting type, number of poles, and actuator type. Any deviation in these parameters disqualifies a part as an equivalent.

Q: Are there packaging differences between these parts?

A: Both parts are supplied in Bulk packaging. No packaging format differences exist between the Phoenix Contact 5650113 and Weidmüller 7940102159.

Q: Does the Weidmüller part have additional certifications?

A: The Weidmüller 7940102159 includes CSA C22.2 No 235, UL1077, and VDE approvals. These certifications may be required for specific regional or application-specific compliance requirements.

Q: Can these parts be mixed in the same circuit design?

A: Yes. Since both parts are parametric equivalents with identical electrical and mechanical specifications, they can be used interchangeably within the same circuit design without modification.
