LED Circuit Board Indicator 5636D7 Equivalent & Substitute Parts

Part Overview

The VCC 5636D7 is a yellow LED circuit board indicator designed for through-hole, right-angle mounting applications. This component features a single yellow tinted lens with a rectangular flat-top design measuring 5.08mm x 2.29mm, operating at 2.2V with a 20mA current rating and 4mcd brightness output at a peak wavelength of 585nm.

The 5636D7 is classified as obsolete. Identifying equivalent substitute parts is necessary to maintain design continuity, ensure component availability for production, and support ongoing maintenance of systems utilizing this LED indicator.

Key Parameters

Parameter	Value
Manufacturer	Visual Communications Company (VCC)
Part Number	5636D7
Product Status	Obsolete
Color	Yellow
Configuration	Single
Voltage Rating	2.2V
Current Rating	20mA
Millicandela Rating	4mcd
Wavelength - Peak	585nm
Lens Type	Tinted
Lens Style	Rectangle with Flat Top
Lens Size	5.08mm x 2.29mm
Mounting Type	Through Hole, Right Angle
RoHS Status	ROHS3 Compliant
MSL Rating	1 (Unlimited)
REACH Status	REACH Unaffected

Substitute Part Grouping Explanation

Substitute parts for the 5636D7 are identified based on the following critical parameters that determine functional compatibility:

Primary Substitution Criteria:

Color: Yellow
Configuration: Single LED
Mounting Type: Through Hole
Lens Style: Rectangle with Flat Top
Voltage Rating: Within acceptable operating range (1.95V to 2.2V)
Current Rating: 20mA to 30mA
Millicandela Rating: 3.5mcd to 4mcd
Wavelength - Peak: 583nm to 588nm
RoHS3 Compliance
MSL Rating: 1 (Unlimited)

The substitute parts identified maintain compatibility across these core electrical and mechanical parameters while accommodating minor variations in lens type (diffused vs. tinted) and viewing angle specifications.

Parameter Comparison

Parameter	5636D7 (VCC)	5660306F (Dialight)	WP113WH/YD (Kingbright)
Product Status	Obsolete	Active	Active
Color	Yellow	Yellow	Yellow
Configuration	Single	Single	Single
Voltage Rating	2.2V	2.1V	1.95V
Current Rating	20mA	20mA	30mA
Millicandela Rating	4mcd	3.5mcd	4mcd
Wavelength - Peak	585nm	583nm	588nm
Lens Type	Tinted	Diffused, Tinted	Diffused, Tinted
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top	Rectangle with Flat Top
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole
Viewing Angle	Not specified	110°	110°
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
MSL Rating	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
REACH Status	REACH Unaffected	REACH Unaffected	REACH Unaffected

Engineering Selection Recommendations

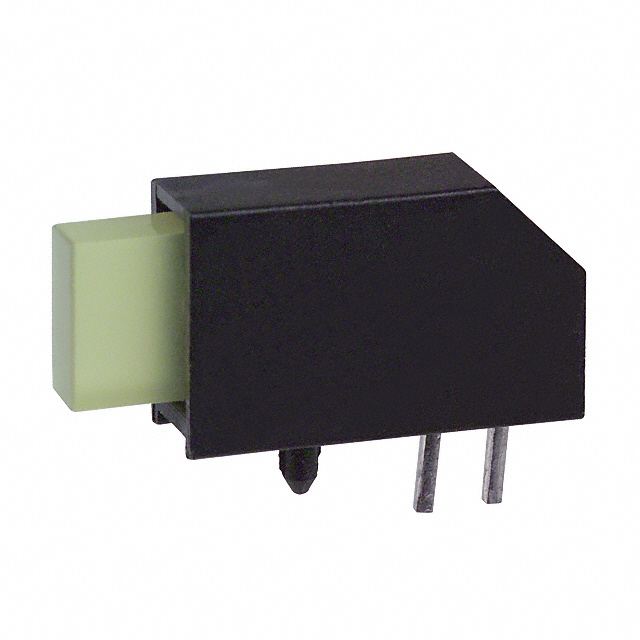

Direct Substitute - Dialight 5660306F:

The Dialight 5660306F is classified as a direct manufacturer substitute for the VCC 5636D7. Both components maintain active product status for the substitute (Dialight) with ROHS3 compliance and REACH unaffected certification. The 5660306F operates at 2.1V with 20mA current, matching the original design current specification. Millicandela rating of 3.5mcd and wavelength of 583nm fall within acceptable tolerance ranges relative to the original 4mcd and 585nm specifications. The component features through-hole, right-angle mounting with a rectangle flat-top lens style. Packaging is available in bulk format.

Similar Substitute - Kingbright WP113WH/YD:

The Kingbright WP113WH/YD is classified as a similar substitute option. This component is active and ROHS3 compliant with REACH unaffected status. Operating voltage is 1.95V with a higher current rating of 30mA. Millicandela rating matches the original at 4mcd, and wavelength of 588nm is within specification range. The component features through-hole mounting with rectangle flat-top lens style. The primary distinction is the absence of right-angle specification in the mounting type designation and the increased current requirement.

Both substitute parts maintain compliance certifications and MSL ratings equivalent to the original component.

Frequently Asked Questions (FAQ)

Q: Can the Dialight 5660306F directly replace the VCC 5636D7 in existing designs?

A: The Dialight 5660306F maintains compatibility across critical electrical parameters including voltage rating (2.1V vs. 2.2V), current rating (20mA), and mounting configuration (through-hole, right-angle). Wavelength and brightness specifications fall within acceptable ranges. The component is suitable for direct substitution in applications where the original 5636D7 was specified.

Q: What is the primary difference between the Dialight and Kingbright substitutes?

A: The Dialight 5660306F matches the original 20mA current specification, while the Kingbright WP113WH/YD operates at 30mA. The Kingbright component does not specify right-angle mounting in its designation. Both maintain yellow color, single configuration, and rectangle flat-top lens style.

Q: Are there viewing angle differences between the original and substitute parts?

A: The original VCC 5636D7 does not specify a viewing angle parameter. Both substitute parts (Dialight and Kingbright) specify 110° viewing angle. This represents an additional specification in the substitute components.

Q: Do all parts meet current regulatory compliance requirements?

A: All three components (original and both substitutes) are ROHS3 compliant and REACH unaffected. MSL ratings are equivalent at Level 1 (Unlimited moisture sensitivity).

Q: What packaging formats are available for the substitute parts?

A: The Dialight 5660306F is available in bulk packaging. Packaging information for the Kingbright WP113WH/YD is not specified in the provided data.

Q: How do the brightness specifications compare?

A: The VCC 5636D7 and Kingbright WP113WH/YD both specify 4mcd brightness. The Dialight 5660306F specifies 3.5mcd, representing a 12.5% reduction in brightness output.
