Vishay Cera-Mite 562R5TSSD10 Equivalent & Substitute Parts

Part Overview

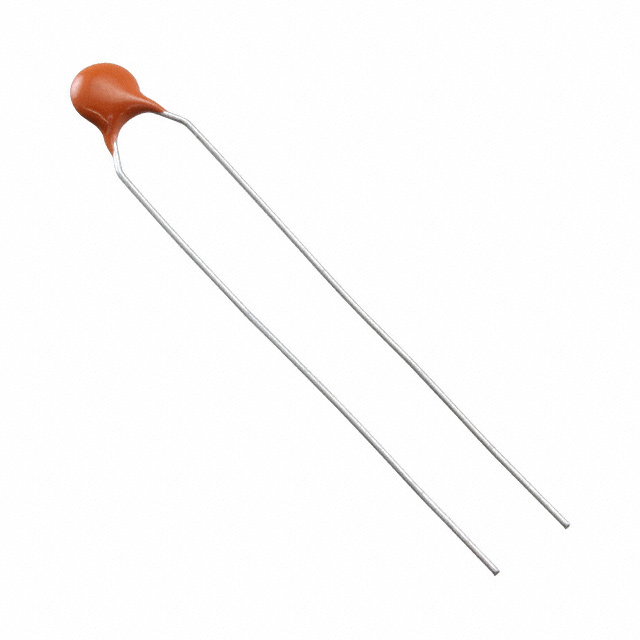

The Vishay Cera-Mite 562R5TSSD10 is a 1000 pF ceramic capacitor rated for 1000V (1kV) with Y5U temperature coefficient and ±20% tolerance. This radial, disc-type capacitor is designed for general-purpose applications and is currently active in production with 1081 pieces in stock. Substitute parts may be required due to inventory constraints, specific temperature coefficient requirements, or tolerance specifications for particular circuit designs.

Substiute Parts

562R5TSSD10

Vishay Cera-MiteIn Stock: 1129562R5TSSD10 Datasheet

Current PartRFQ

561R1DF0D10

Vishay Cera-MiteIn Stock: 6454561R1DF0D10 Datasheet

MFR RecommendedRFQ

562R10TSD10RE

Vishay Cera-MiteIn Stock: 950562R10TSD10RE Datasheet

MFR RecommendedRFQ

562R5HKD10

Vishay Cera-MiteIn Stock: 2590562R5HKD10 Datasheet

MFR RecommendedRFQ

562R5TSD10

Vishay Cera-MiteIn Stock: 2775562R5TSD10 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 562R5TSSD10 is determined by the following critical parameters:

• Capacitance Value: Must be 1000 pF (exact match required)
• Voltage Rating: Must be 1000V (1kV) or higher
• Mounting Type: Must be Through Hole
• Package Type: Must be Radial, Disc
• Lead Spacing: Must be 0.252" (6.40mm)
• Lead Style: Must be Straight
• Operating Temperature Range: Must support -55°C ~ 105°C
• RoHS Compliance: Must maintain ROHS3 Compliant status

Tolerance and temperature coefficient may vary among substitutes while maintaining functional equivalence. All substitute parts listed are manufactured by Vishay Cera-Mite and share the same series heritage or compatible electrical characteristics.

Parameter Comparison

Engineering Selection Recommendations

All listed substitute parts maintain ROHS3 compliance and active product status. Selection among substitutes should be based on:

Tolerance Requirements: The main part 562R5TSSD10 offers ±20% tolerance. Substitutes 561R1DF0D10, 562R10TSD10RE, 562R5HKD10, and 562R5TSD10 provide tighter ±10% tolerance, suitable for applications requiring improved capacitance accuracy.

Temperature Coefficient Characteristics: The Y5U temperature coefficient of the main part provides standard performance across the operating range. Substitute parts offer alternative temperature coefficients (N2800, X5F, Z5U, X7R) for applications with specific temperature stability requirements.

Physical Dimensions: The main part features a 0.252" diameter. Substitutes 562R10TSD10RE, 562R5HKD10, and 562R5TSD10 have slightly larger diameters (0.291" and 0.290"), which may require PCB layout verification for space-constrained designs. Substitute 561R1DF0D10 has a 0.370" diameter and should be evaluated for clearance compatibility.

Inventory Availability: Substitute 561R1DF0D10 offers the highest stock level (6440 pieces), followed by 562R5TSD10 (2694 pieces) and 562R5HKD10 (2552 pieces).

Frequently Asked Questions (FAQ)

Q: Can I use a substitute part with different tolerance in my circuit? A: Yes, if your circuit design permits. The main part specifies ±20% tolerance. Substitutes with ±10% tolerance provide tighter capacitance control and are functionally compatible. Verify that your circuit design does not require the specific tolerance of the original part.

Q: What is the difference between temperature coefficients Y5U, N2800, X5F, Z5U, and X7R? A: These designations define how capacitance changes across the operating temperature range (-55°C ~ 105°C). Each coefficient represents different capacitance stability characteristics. Select based on your application's temperature stability requirements. All listed coefficients support the full operating temperature range.

Q: Are all substitute parts pin-compatible with the main part? A: Yes. All parts feature 0.252" (6.40mm) lead spacing and straight lead style, ensuring mechanical compatibility. However, physical diameter differences (0.252" to 0.370") may affect PCB layout. Verify clearance in your specific board design.

Q: Can I mix main and substitute parts in the same production batch? A: All parts are ROHS3 compliant and manufactured by Vishay Cera-Mite with identical lead spacing and voltage ratings. Mixing is permissible if your circuit design accommodates the tolerance and temperature coefficient variations among parts.

Q: Which substitute offers the best availability? A: Substitute 561R1DF0D10 has the highest inventory (6440 pieces). However, verify that its larger 0.370" diameter accommodates your PCB layout requirements.
